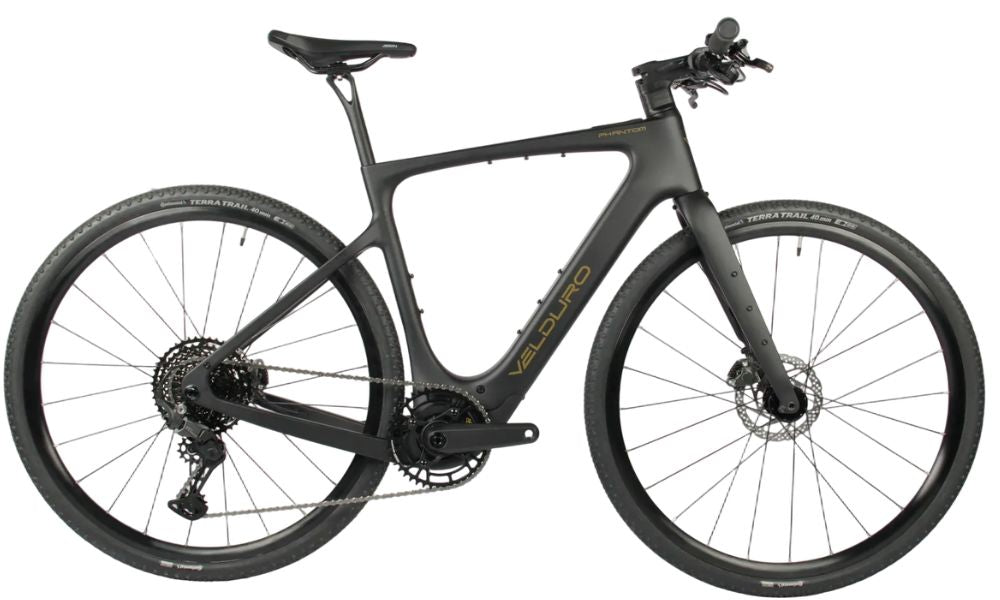

Velduro 2027 Phantom S M2
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Velduro 2027 Phantom S M2
The Phantom S is the ultimate flat bar e-commuting and or adventure machine. Save on fuel and commute with the Phantom S With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding.
- Carbon Fibre Monocoque Frame
- Shimano Cues 11 Speed
- 8 Mounting Points on Frame and 6 Mounting Points on Fork for Bike Packing
- Warranty: Frame 5-Years | Avinox Drive System 2-Years
Specifications
Velduro 2027 Phantom S M2
Frame
Size: S, M, L, XL
Colour: Carbon
Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8 mounting points, rack compatible
Fork: Carbon gravel fork, 6 mounting point 12X100mm , offset 50mm
Shock:
Drivetrain
Crankset: Avinox SL 165mm
Pedals:
Chain: Shimano LG500 linkglide BLK
Bottom Bracket:
Rear Derailleur: Shimano Cues RD-U6000, 11-speed
Front Derailleur:
Shifter:
Freewheel/Cassette: Shimano Cues LG400-11S 11-45T
Braking System
Brakes: Sram S300 hydraulic, two piston
Brake Levers:
Wheels
Tyres: [F] and [R] Continental Terra Trail 700*45C BLK, with tube
Wheels/Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook
Hubs: [F] Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm [R] Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub
Other
Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
Stem: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK
Seat Post: Velduro carbon Dia27.2 380mm, BLK
Saddle: Fizik terra aidon X5
E-Bike
Drive Unit: AVINOX M2 250W 120Nm, Boost to 125Nm, 1100W peak power
Battery: AVINOX 36V 800Wh
Display: AVINOX DP100
UI/Remote:
Charger: AVINOX 36V 600Wh
Geometry
Velduro 2027 Phantom S M2
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 466 | 486 | 506 | 526 |
| B | Top Tube Horizontal (mm) | 520 | 534 | 551 | 565 |
| C | Top Tube Actual (mm) | 495 | 515 | 534 | 548 |
| D | Head Tube Angle (°) | 70 | 70.5 | 71 | 71 |
| E | Seat Tube Angle (°) | 74.4 | 74.1 | 73.6 | 73.6 |
| F | Standover (mm) | 772 | 785 | 815 | 830 |
| G | Head Tube Length (mm) | 135 | 147 | 159 | 179 |
| H | Wheelbase (mm) | 1015 | 1019 | 1030 | 1040 |
| I | Front Center (mm) | 600 | 605 | 606 | 620 |
| J | Chain Stay Length (mm) | 425 | 425 | 430 | 430 |
| K | Bottom Bracket Drop (mm) | 72.5 | 72.5 | 72.5 | 72.5 |
| L | Bottom Bracket Height (mm) | 283 | 283 | 283 | 283 |
| M | Fork Rake (mm) | 50 | 50 | 50 | 50 |
| N | Trail (mm) | 64 | 63 | 63 | 63 |
| O | Stack (mm) | 554 | 567 | 581 | 600 |
| P | Reach (mm) | 366 | 372 | 377 | 385 |
| Q | Axle to Crown (mm) | 395 | 395 | 395 | 395 |
| Recommended Height | 160-170 | 172-182 | 180-188 | 185-195 | |
