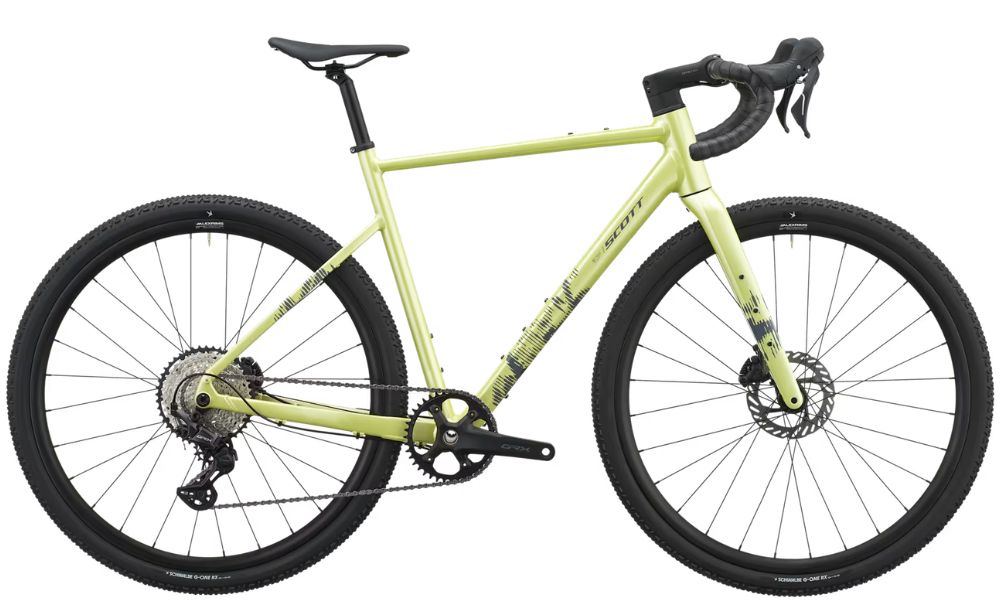

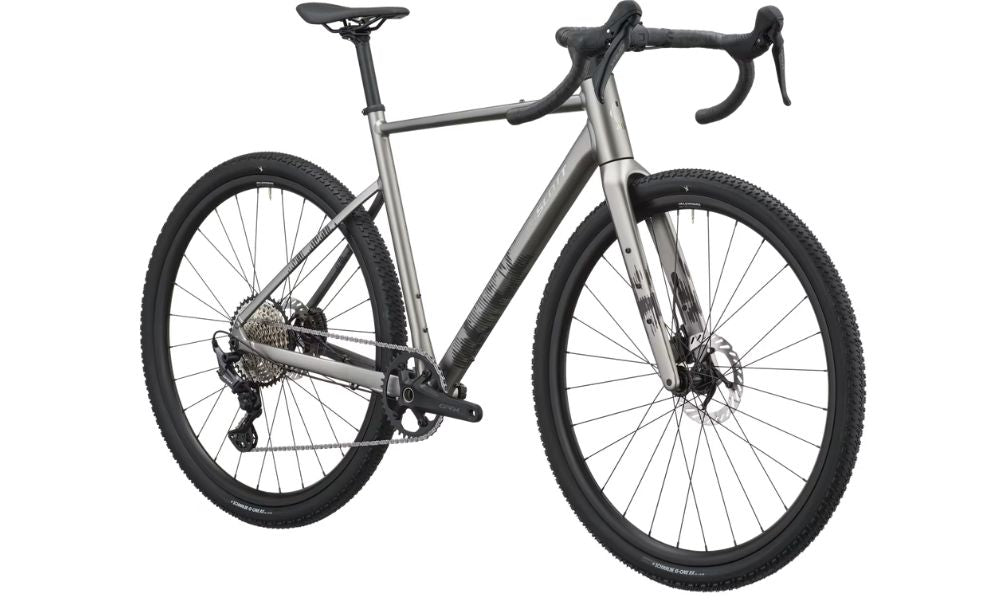

Scott Speedster Gravel 20

(0)

$3,100.00

In stock

Colour

Green Grey

Size

XXS XS S M L XL XXL

Scott Speedster Gravel 20

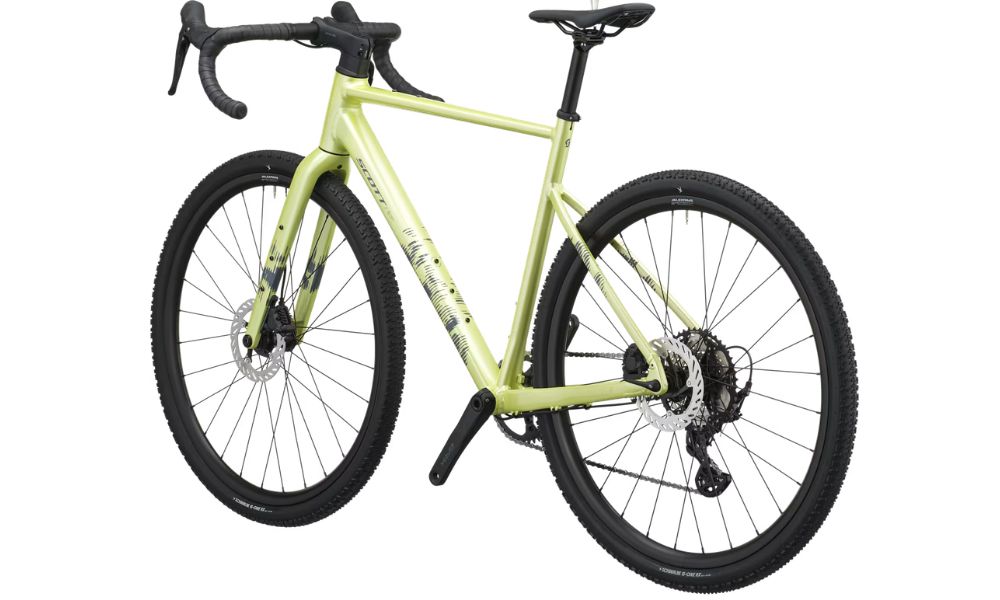

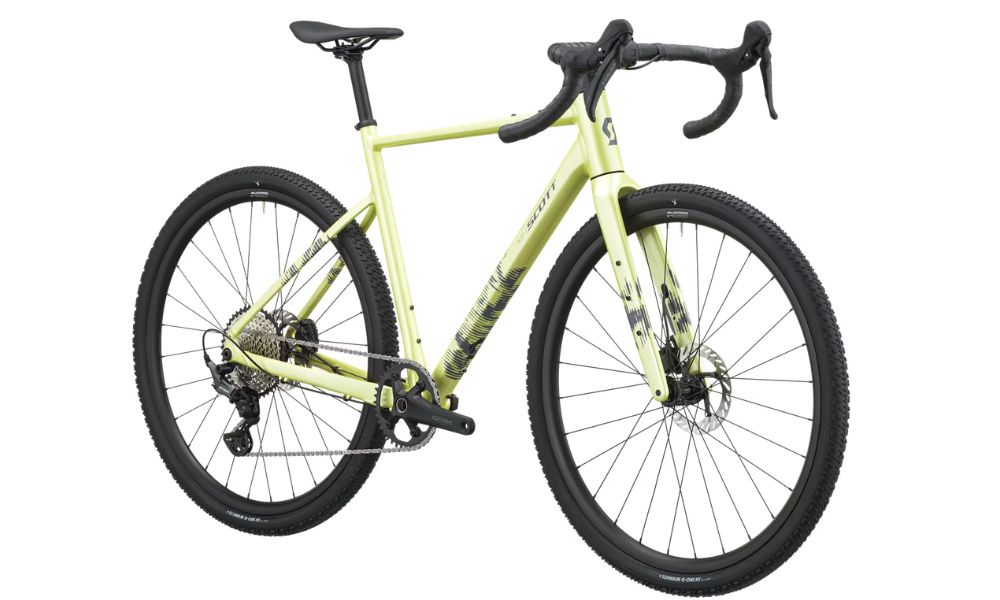

The SCOTT Speedster Gravel 20 is your one stop shop for when the path gets less traveled. Comfortable geometry for all-day rides, room for big tires and fully internal cable routing make this a great option for those looking to take it off road!

Specifications

Scott Speedster Gravel 20

Frame

Size: XXS, XS, S, M, L, XL and XXL

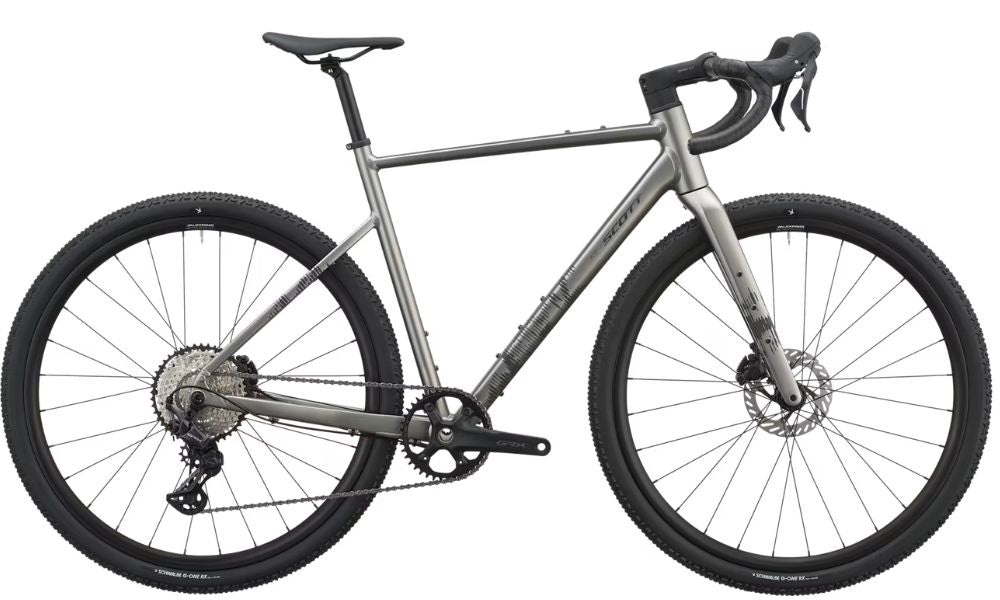

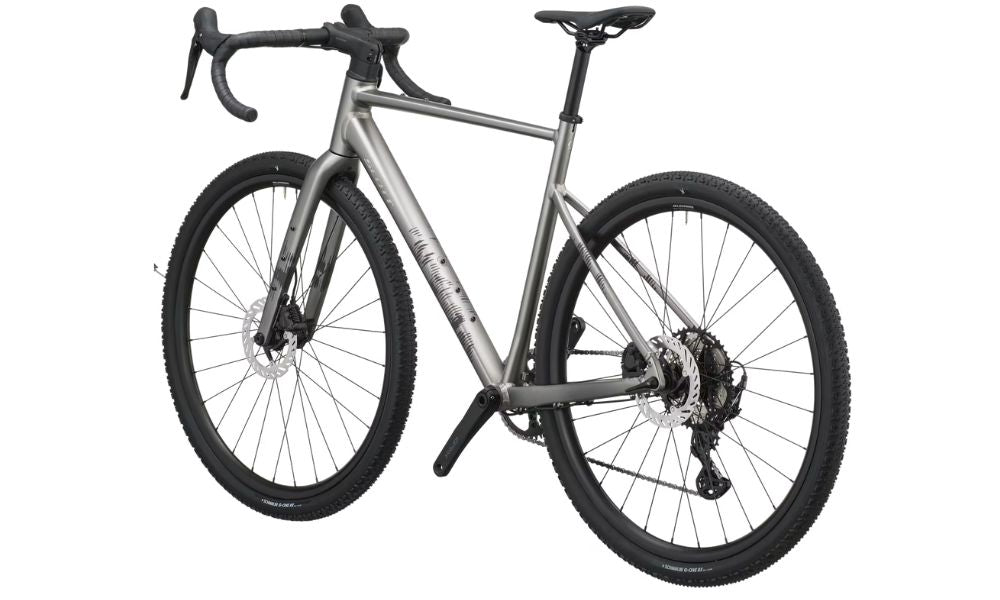

Colour: Mojito Green or Tungsten Grey
Frame: Speedster Gravel, D.Butted 6061 alloy, SCOTT ride geometry, Replaceable UDH derailleur hanger, Internal cable routing, Syncros fender kit ready

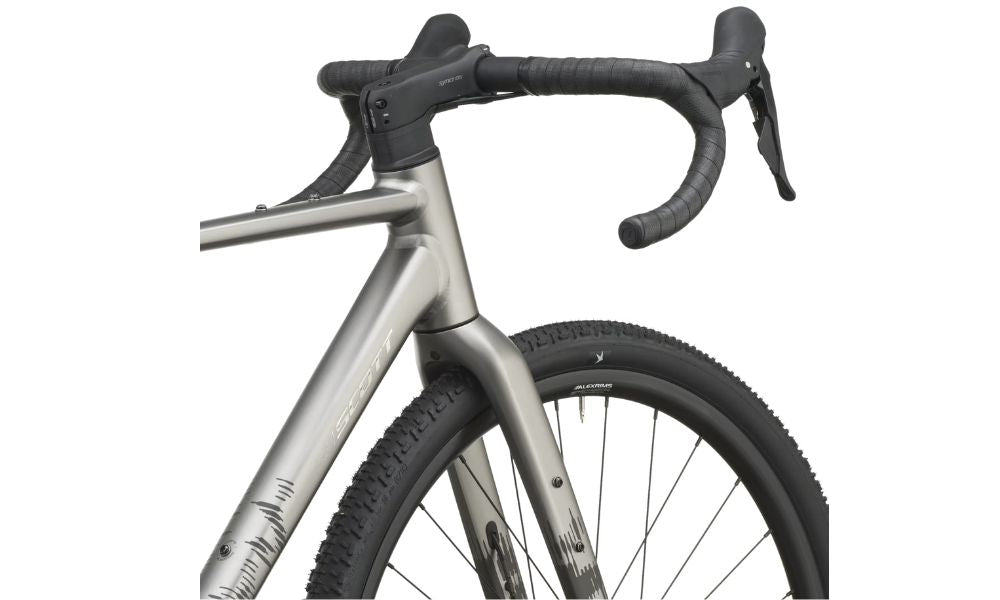

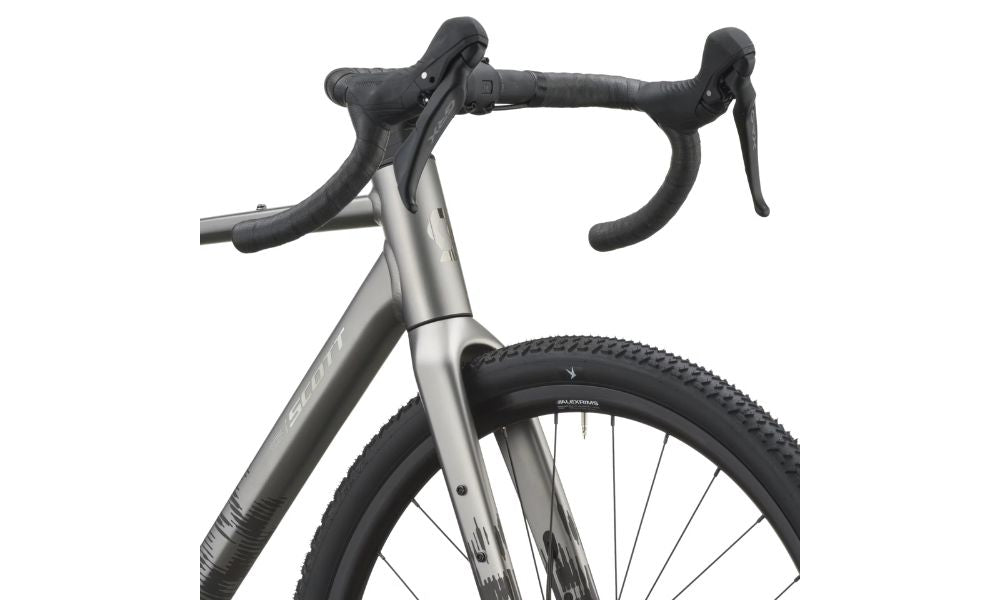

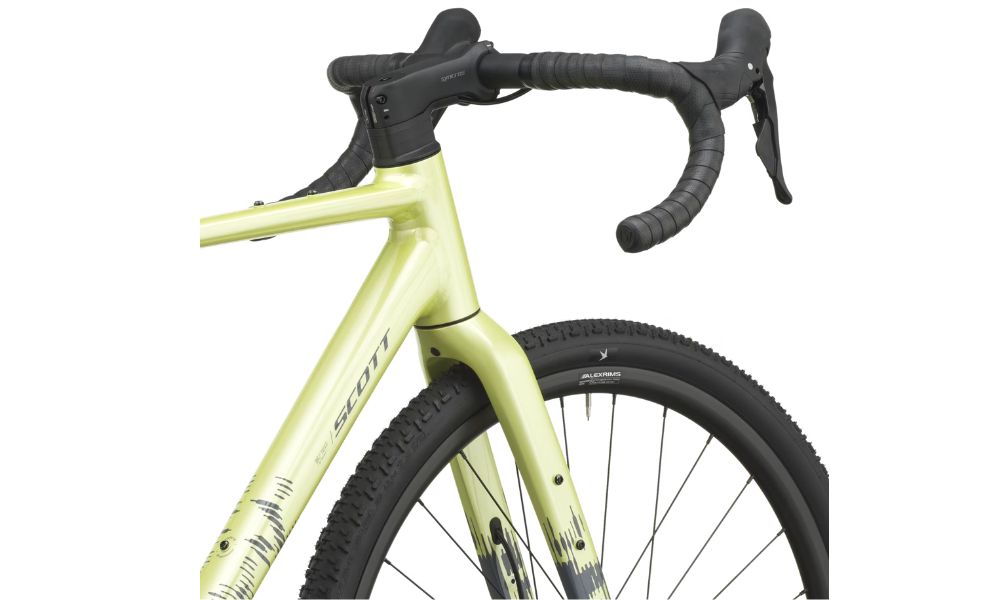

Fork: Addict Gravel HMF Flatmount Disc, 1 1/4"-1 1/2" eccentric carbon steerer
Shock:

Drivetrain

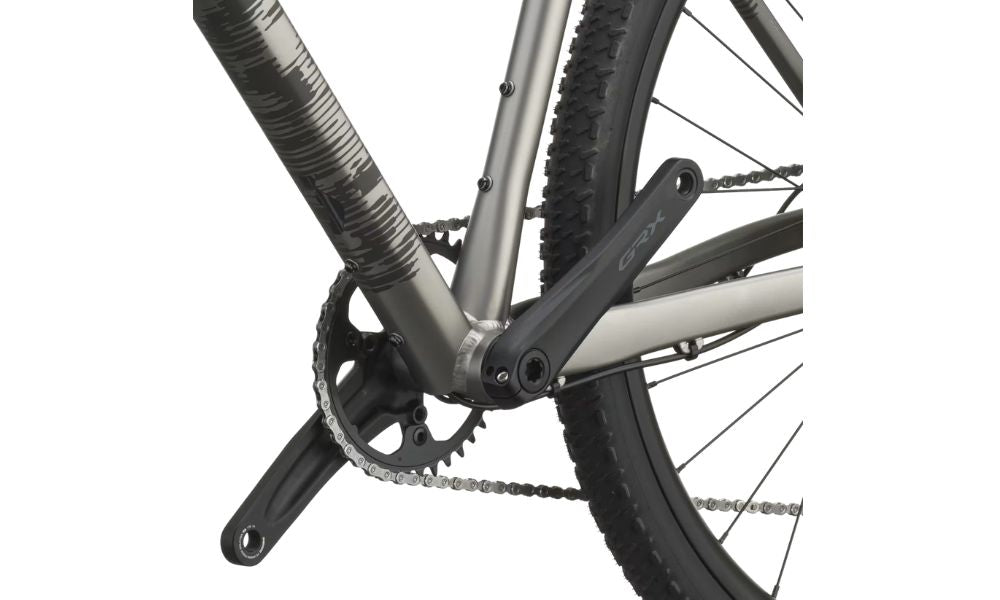

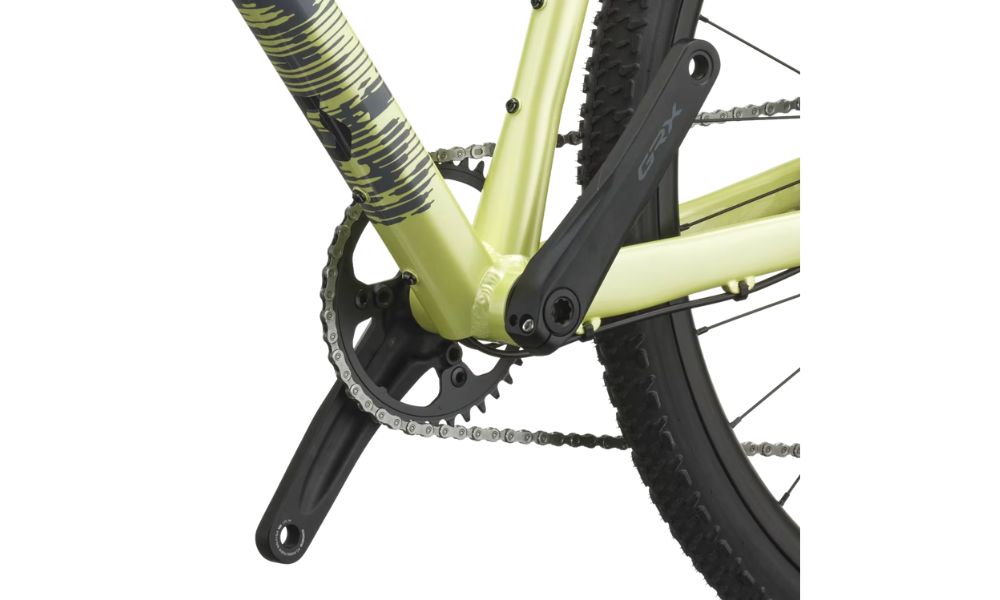

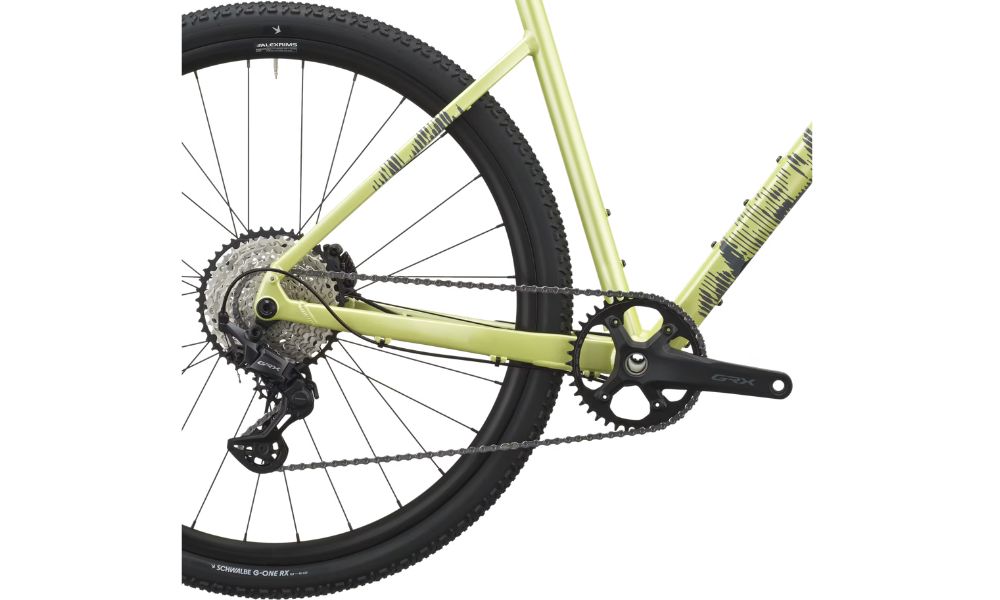

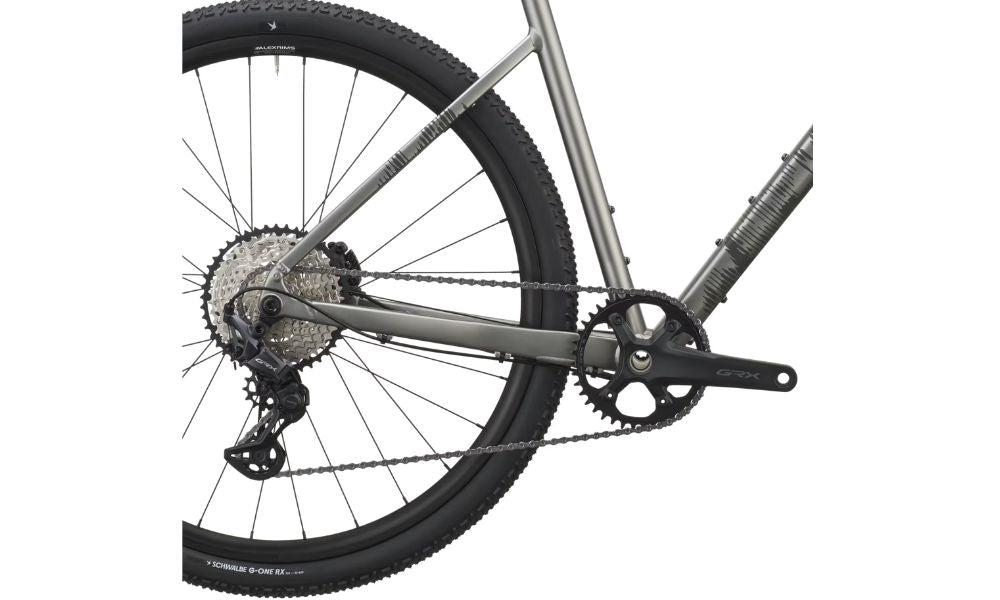

Crankset: Shimano GRX FC-RX610-1, 40T
Pedals:
Chain: Shimano CN-M6100
Bottom Bracket: Shimano BB-RS500-PB
Rear Derailleur: Shimano GRX RD-RX822 GS, 12 Speed
Front Derailleur:
Derailleur Shifter:
Freewheel/Cassette: Shimano SLX CS-M7100, 11-45T

Braking System

Brakes: Shimano BR-RX410 Hyd. Disc
Brake Levers:

Wheels

Tyres: Schwalbe G-One RX, 700x45C
Wheels/Rims: Syncros Race X25 Disc 28H
Hubs: [F] Formula Team II CL Disc 28 H [R] Formula Team II CL Disc 28 H

Other

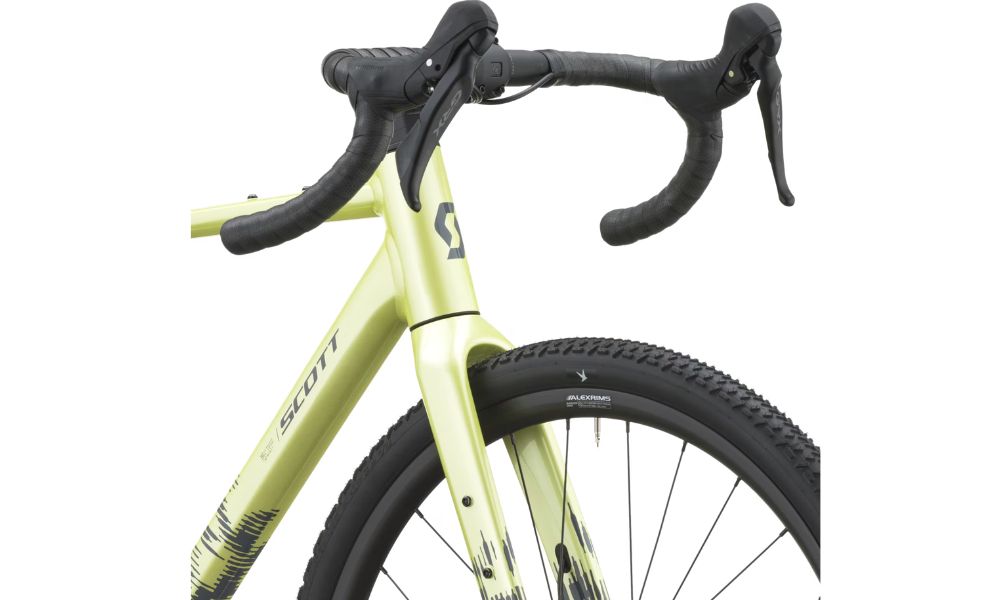

Handlebar: Syncros Creston 2.0 X, Alloy 31.8mm
Stem: Syncros RR2.5, 1 1/4", four Bolt 31.8mm

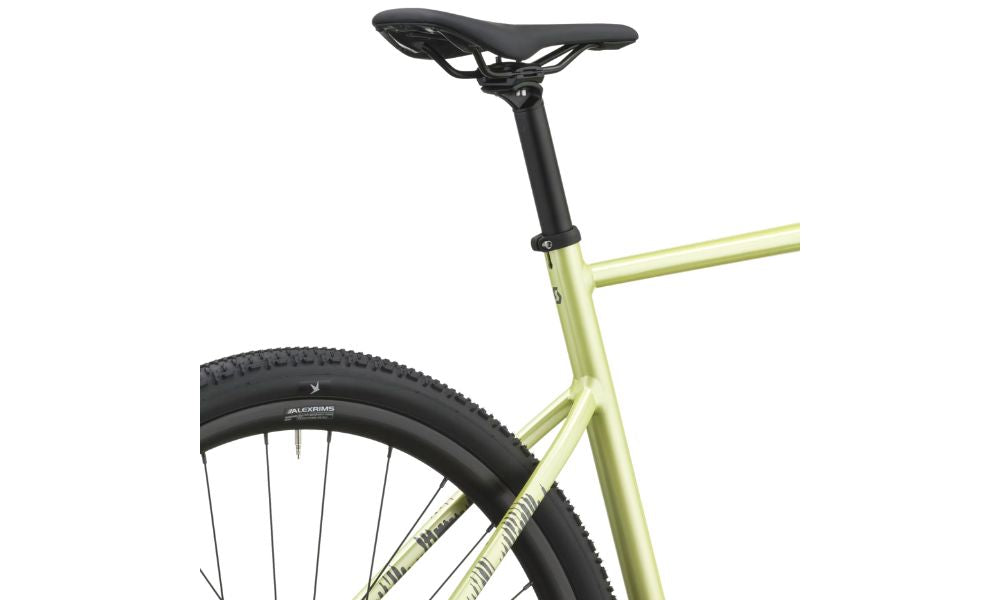

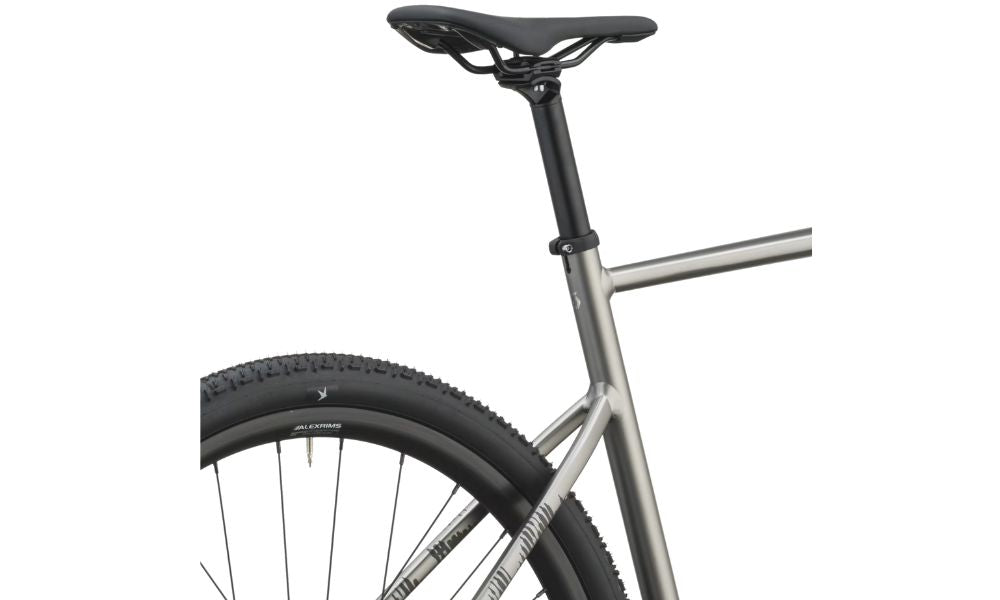

Seat Post: Syncros RR2.5 27.2/350mm
Saddle: Syncros Tofino R 2.5

Geometry

Scott Speedster Gravel 20

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	70.0 mm	70.0 mm	70.0 mm	71.0 mm	71.0 mm	71.0 mm	71.0 mm
B head tube length	98.0 mm	108.0 mm	128.0 mm	148.0 mm	168.0 mm	188.0 mm	208.0 mm
C top tube horizontal	512.6 mm	524.1 mm	538.6 mm	561.1 mm	577.6 mm	587.5 mm	600.4 mm
D standover height	747.0 mm	762.0 mm	786.0 mm	806.0 mm	825.0 mm	844.0 mm	869.0 mm
E BB offset	-71.0 mm	-71.0 mm	-71.0 mm	-71.0 mm	-71.0 mm	-71.0 mm	-71.0 mm
F BB height	283.0 mm	283.0 mm	283.0 mm	283.0 mm	283.0 mm	283.0 mm	283.0 mm
G wheel base	1019.5 mm	1026.9 mm	1037.7 mm	1044.9 mm	1056.4 mm	1067.0 mm	1071.3 mm
H BB center to toptube center	430.0 mm	450.0 mm	480.0 mm	500.0 mm	520.0 mm	540.0 mm	570.0 mm
I BB center to top of seattube	470.0 mm	490.0 mm	520.0 mm	540.0 mm	560.0 mm	580.0 mm	610.0 mm
J seat angle	75.0 mm	74.5 mm	74.0 mm	73.0 mm	72.5 mm	72.5 mm	72.5 mm
K chainstay	435.0 mm	435.0 mm	435.0 mm	439.0 mm	439.0 mm	439.0 mm	439.0 mm
L reach	372.3 mm	376.3 mm	380.3 mm	385.4 mm	390.4 mm	394.4 mm	401.4 mm
M stack	523.7 mm	533.1 mm	551.9 mm	574.8 mm	593.7 mm	612.6 mm	631.5 mm
N stem length	73.0 mm	83.0 mm	93.0 mm	103.0 mm	103.0 mm	113.0 mm	113.0 mm

Size Chart for Scott Speedster Gravel 20 Bike
