Scott Scale 400
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

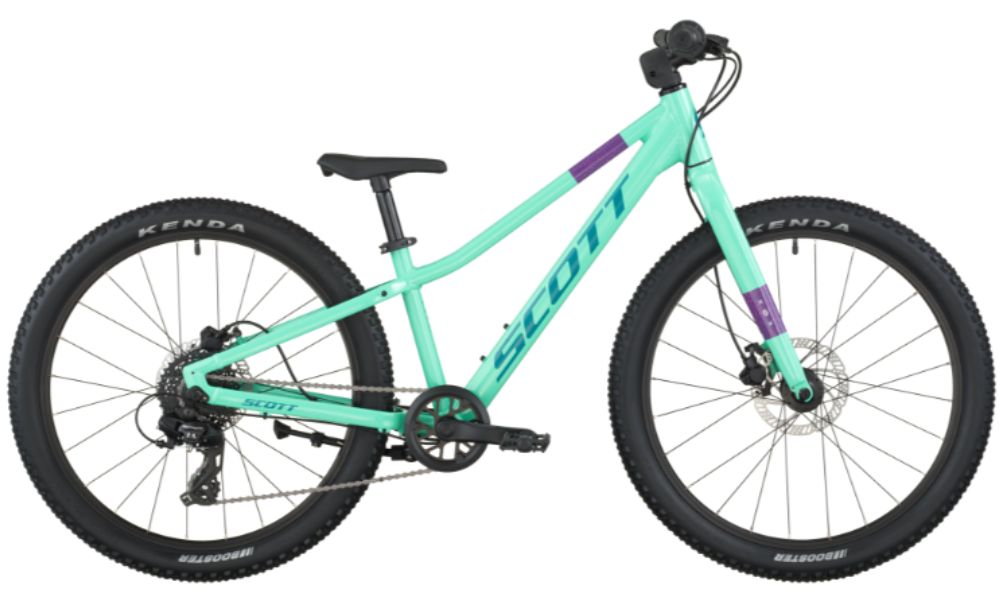

Scott Scale 400
The Scale 400 is the ultimate 24-inch all-rounder for young riders, combining versatility, durability, and ease of handling. Whether it’s daily rides or off-road explorations, this bike is built to ride—perfect for both beginners and more experienced pilots.
Specifications
Scott Scale 400
Frame
Size: 24
Colour: Spring Green
Frame: KIDS24 disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: KIDS24 Disc, AL-6061 rigid fork, IS
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank, 30T, w/CG PVG double cover
Pedals:
Chain: KMC Z8
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano Tourney RD-TX800, 8 Speed
Front Derailleur:
Shifter: Shimano RevoShift SL-RV400 with Display
Freewheel/Cassette: Sunrace CSM55 8-Speed, 11-34T
Braking System
Brakes: Tektro hydraulic disc brake
Brake Levers: Tektro Kids' specific, adjustable reach
Wheels
Tyres: [F] and [R] Kenda Booster 24 x 2.2, 30TPI
Wheels/Rims: Alloy, 24H, 507-21, A/V, for disc brake
Hubs: [F] Formula DC-19, 24H, disc 6 bolt, 5x100mm, QR/allen key [R] Formula DC-25, 24H, disc 6 bolt, 8s, 5x135mm, QR/allen key
Other
Handlebar: Leadtec Kids' riser bar alloy D:19, 20mm rise, 25.4mm clamp
Stem: Leadtec, Alloy, +10°, 25.4 clamp
Seat Post: Syncros KIDS III Incl. Seatpost 27.2mm, 300mm
Saddle: Syncros KIDS III Incl. Seatpost 27.2mm, 300mm
Geometry
Scott Scale 400
| 24" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.4 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 514.2 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 350.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -52.6 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 266.9 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 983.0 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 310.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 73.9 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 402.0 mm | |||||||||||||||||
| L | reach / reach | 357.6 mm | |||||||||||||||||
| M | stack / stack | 541.9 mm | |||||||||||||||||
| N | stem length / longueur potence | ||||||||||||||||||
