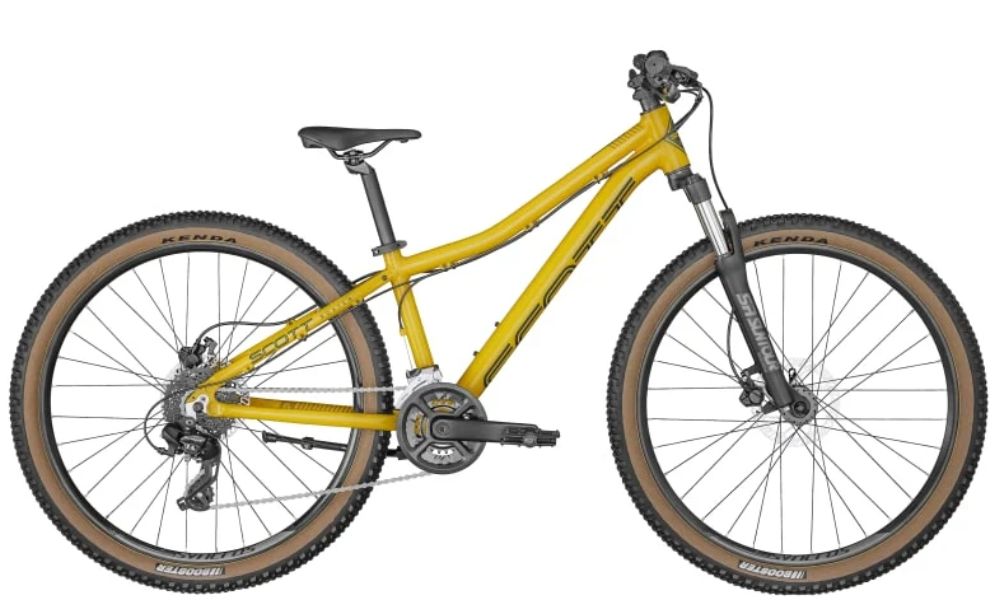

Scott Roxter 26 Disc
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Scott Roxter 26 Disc
Riding to school or racing your buddies, the SCOTT Roxter 26 Disc is just the ticket. A suspension fork for the jumps, disc brakes and a trusty Shimano drivetrain make the Roxter all you need for all-day fun.
Specifications
Scott Roxter 26 Disc
Frame
Size: 26
Colour: Yellow
Frame: JR26 Susp Disc Alloy 6061 / Performance geometry SCOTT dropout / IS
Fork: SR Suntour XCE28 100mm travel Softer spring setup
Shock:
Drivetrain
Crankset: Prowheel 36-22T w/CG
Pedals:
Chain: KMC Z8.3
Bottom Bracket: Feimin / BB68 / cartridge / square taper
Rear Derailleur: Shimano Tourney RD-TX800 16 Speed
Front Derailleur: Shimano FD-M315-TS / 34.9mm
Shifter: Shimano FD-M315-TS / 34.9mm
Freewheel/Cassette: SunRace CSM55 8AV / 11-34T
Braking System
Brakes: Tektro HD-M276 / Hydr. Disc 160F/160R rotor / short reach lever
Brake Levers: Tektro HD-M276
Wheels
Tyres: [F] and [R] Kenda K1227 Booster / 26x2.4" / 30TPI
Wheels/Rims: Syncros X-20 Disc / 32H / black
Hubs: [F] Formula DC-19-F / QR Disc [R] Formula DC-25-8-R / QR Disc
Other
Handlebar: HL MTB-AL-312BT / 640mm / black / 12mm rise Syncros Youth 115
Stem: HL TDS-C342 / 10° / 31.8 / Black
Seat Post: Alloy / 31.6mm / 350mm
Saddle:
Geometry
Scott Roxter 26 Disc
| 26" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 69.0 ° | |||||||||||||||||
| B | head tube length | 110.0 mm | |||||||||||||||||
| C | top tube horizontal | 540.0 mm | |||||||||||||||||
| D | standover height | 666.0 mm | |||||||||||||||||
| E | BB offset | -38.0 mm | |||||||||||||||||
| F | BB height | 308.0 mm | |||||||||||||||||
| G | wheel base | 1,038.0 mm | |||||||||||||||||
| H | BB center to toptube center | 285.0 mm | |||||||||||||||||
| I | BB center to top of seattube | 330.0 mm | |||||||||||||||||
| J | seat angle | 73.5 ° | |||||||||||||||||
| K | chainstay | 425.0 mm | |||||||||||||||||
| L | reach | 376.0 mm | |||||||||||||||||
| M | stack | 553.0 mm | |||||||||||||||||
| N | stem length |
45.0 mm |
|||||||||||||||||
