Scott Roxter 200
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

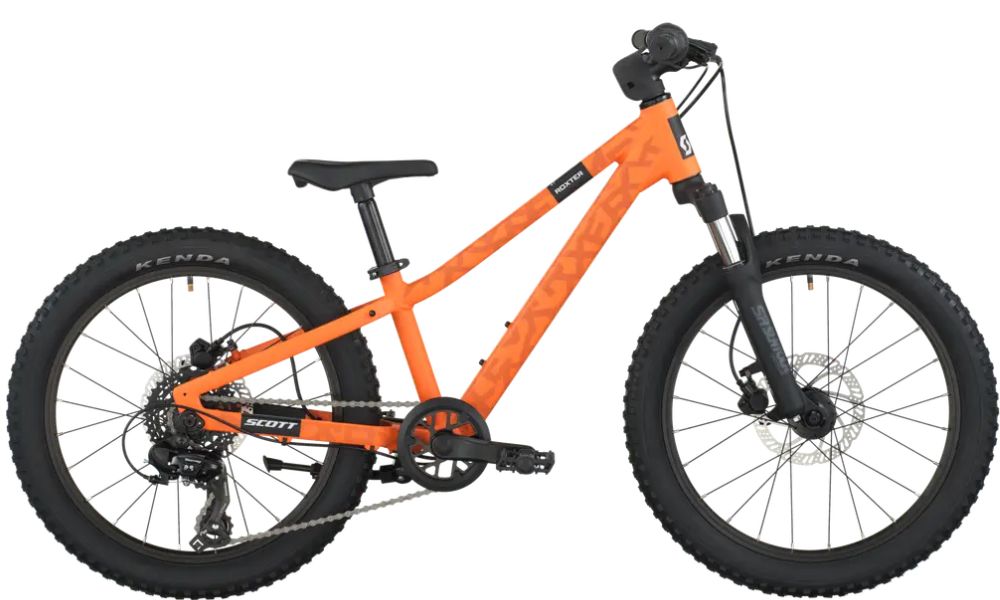

Scott Roxter 200
Designed for little rippers ready to hit the trails, this 20-inch bike is built for fun and confidence. With a durable frame and kid-friendly geometry, it makes riding easy—whether cruising the local trails, rolling over rocks, or catching little air on jumps. Ready to ride like a rockstar? This is your bike.
Key Features
- Kids from 115 cm
- 20" wheels
- 9.9 KG / 21.83 LBS
- Equipped with 7 gears
- The bike to rock the local forest
- Easy handling hydr disc brakes
- A suspension for more comfort
- Traction without limits
- bike size specific cockpit, easy handling with small diameter for maximum control
- Bigger cassette to easier climbs
Specifications
Scott Roxter 200
Frame
Size: 20
Colour: Vibrant Orange
Frame: KIDS20 disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM
Fork: SR Suntour XCT-JR 63mm travel Softer spring setup
Shock:
Drivetrain
Crankset: Prowheel, Alloy Crank 114mm 28T, w/CG PVG double cover
Pedals:
Chain: KMC Z7
Bottom Bracket: Feimin, BB68, cartridge, square taper
Rear Derailleur: Shimano RD-TY300 7 Speed
Front Derailleur:
Shifter: Shimano SL-RV300-7R Revo Shifter
Freewheel/Cassette: SunRace CSM40 7 Speed, 11-34T
Braking System
Brakes: Tektro HD-M276, Hydr. Disc 160F/160R rotor, short reach lever
Brake Levers: Tektro HD-M276
Wheels
Tyres: [F] and [R] Kenda K1237 Karma2, 20x2.2", 30TPI
Wheels/Rims: Alloy anodized black, disc
Hubs: [F] Formula 5x100mm, 24H, disc 6 bolt [R] Formula 5x135mm, 24H, disc 6 bolt
Other
Handlebar: LEADTEC Kids riser bar alloy D:19 540mm, 20mm Rise Syncros Grips Kids 100/80
Stem: LEADTEC Alloy 50mm, +10°, 25.4 clamp
Seat Post:
Saddle: Syncros KIDS III incl. Seatpost 27.2mm
Geometry
Scott Roxter 200
| 20" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.1 ° | |||||||||||||||||
| B | head tube length / hauteur tube de direction | 110.0 mm | |||||||||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 447.0 mm | |||||||||||||||||
| D | standover height / hauteur entre-jambes | 317.0 mm | |||||||||||||||||
| E | BB offset / deport axe de pédalier | -45.8 mm | |||||||||||||||||
| F | BB height / hauteur axe de pédalier | 222.7 mm | |||||||||||||||||
| G | wheel base / entraxe roues | 858.3 mm | |||||||||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 260.0 mm | |||||||||||||||||
| J | seat angle / angle tube de selle | 73.1 ° | |||||||||||||||||
| K | chainstay / longueur des bases | 352.0 mm | |||||||||||||||||
| L | reach / reach | 306.0 mm | |||||||||||||||||
| M | stack / stack | 464.9 mm | |||||||||||||||||
| N |
stem length / longueur potence |
||||||||||||||||||
