Scott Foil RC Team

(0)

$10,800.00

In stock

Size

S M L XL

Scott Foil RC Team

Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.

Specifications

Scott Foil RC Team

Frame

Size: S, M, L and XL
Colour: Tungsten Grey
Frame: Foil RC Disc HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork: Foil RC Disc HMX, 1" eccentric carbon steerer
Shock:

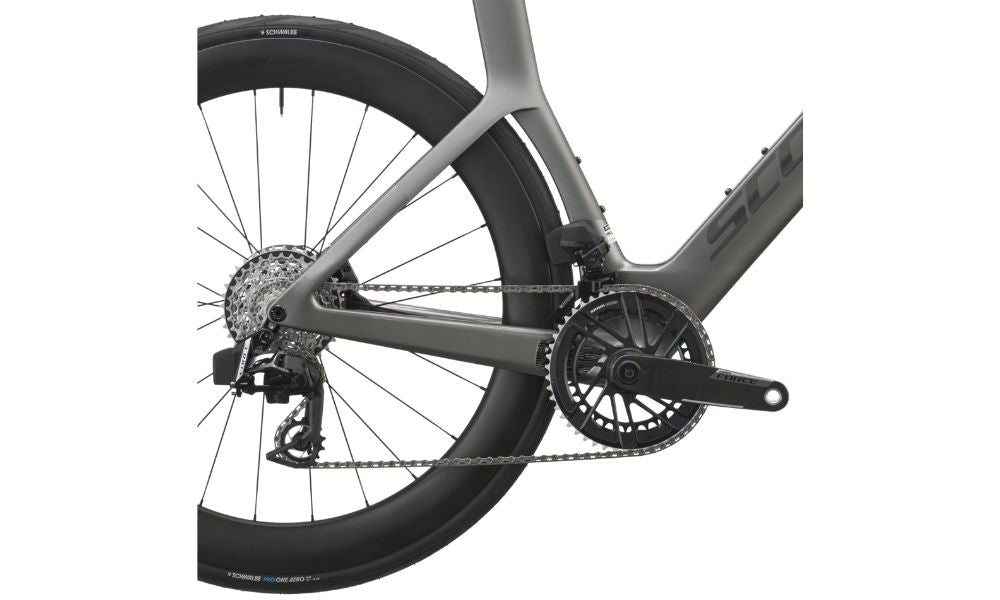

Drivetrain

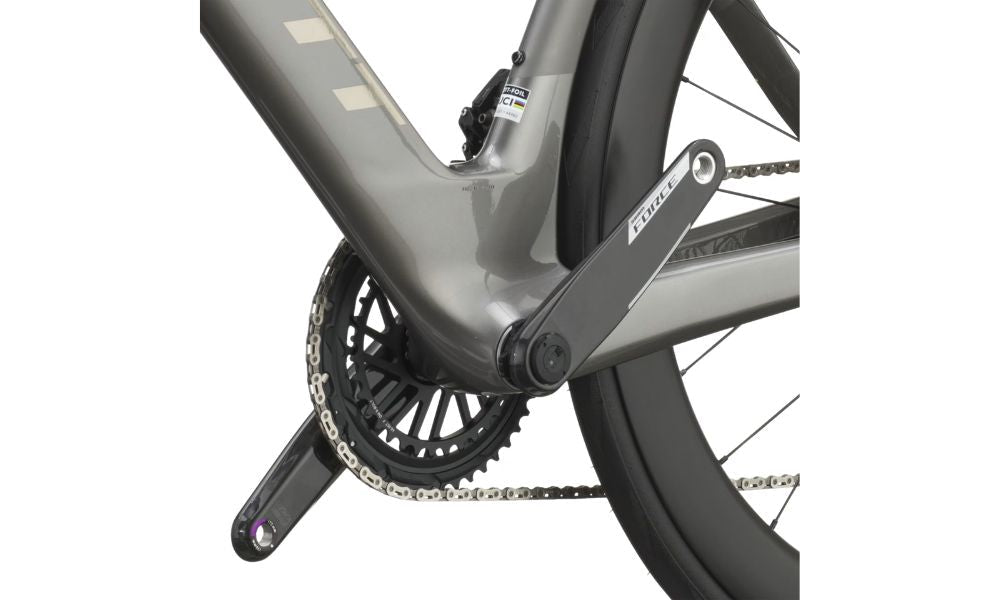

Crankset: SRAM FORCE Powermeter 48-35T
Pedals:
Chain: SRAM FORCE
Bottom Bracket: SRAM DUB PF ROAD 86.5
Rear Derailleur: SRAM FORCE AXS 24-Speed, Electronic Shift System
Front Derailleur: SRAM FORCE AXS Electronic Shift System
Derailleur Shifter: SRAM FORCE AXS HRD Shift-Brake System
Freewheel/Cassette: SRAM FORCE XG1270, 10-36T

Braking System

Brakes: SRAM FORCE AXS HRD Shift-Brake System
Brake Levers:

Wheels

Tyres: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Wheels/Rims: Syncros Capital 1.0S Aero 60mm, 24 Front, 24 Rear, Syncros SL Axle, removable lever with tool
Hubs: [F] [R]

Other

Handlebar: Syncros Creston iC SL Aero, Carbon combo
Stem:
Seat Post: Syncros Duncan SL Aero CFT
Saddle: Syncros Belcarra V2.0 Cut-out, Carbon rails

Geometry

Scott Foil RC Team

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	70.5 mm	71.0 mm	72.0 mm	72.5 mm	73.0 mm	73.3 mm	73.3 mm
B head tube length	103.0 mm	108.0 mm	121.0 mm	141.0 mm	161.0 mm	181.0 mm	199.0 mm
C top tube horizontal	520.0 mm	530.0 mm	540.0 mm	550.0 mm	565.0 mm	580.0 mm	600.0 mm
D standover height	746.4 mm	759.6 mm	779.4 mm	801.0 mm	820.0 mm	838.0 mm	853.3 mm
E BB offset	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm
F BB height	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm
G wheel base	987.7 mm	993.7 mm	990.7 mm	992.6 mm	999.9 mm	1008.6 mm	1022.7 mm
H BB center to toptube center	450.8 mm	480.9 mm	501.4 mm	521.6 mm	541.4 mm	558.8 mm	571.4 mm
I BB center to top of seattube	451.8 mm	481.9 mm	502.4 mm	522.6 mm	542.4 mm	559.8 mm	572.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	73.0 mm	72.5 mm
K chainstay	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm
L reach	380.0 mm	388.0 mm	389.0 mm	389.0 mm	394.5 mm	400.0 mm	409.0 mm
M stack	505.0 mm	511.0 mm	527.0 mm	548.0 mm	568.0 mm	589.0 mm	606.0 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	380.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm

Size Chart for Scott Foil RC Team Bike
