Scott Addict RC 20

(0)

$9,100.00

In stock

Colour

Green Black

Size

XXS XS S M L XL

Scott Addict RC 20

Engineered to defy gravity and elevate your performance, the Addict RC is our lightest production race bike ever. Whether you're attacking steep climbs or sprinting for the finish line, every aspect of this bike was meticulously crafted with one thing in mind – leaving everyone else in the dust.

Specifications

Scott Addict RC 20

Frame

Size: XXS, XS, S, M, L and XL

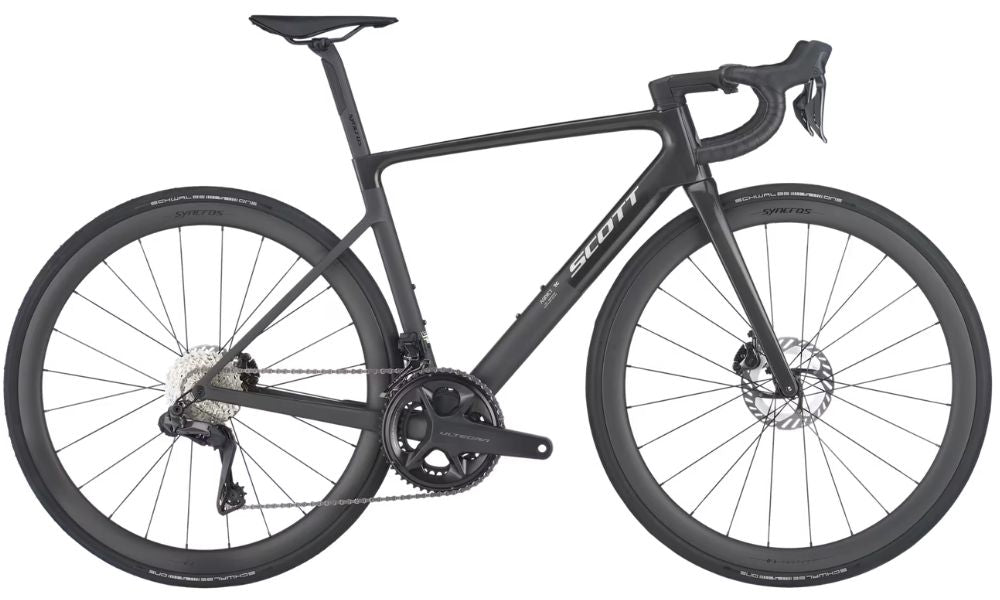

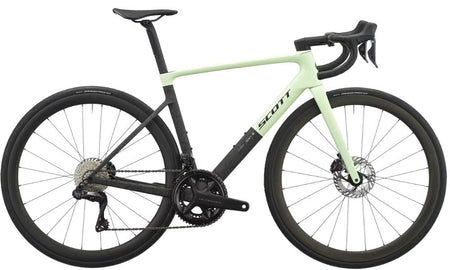

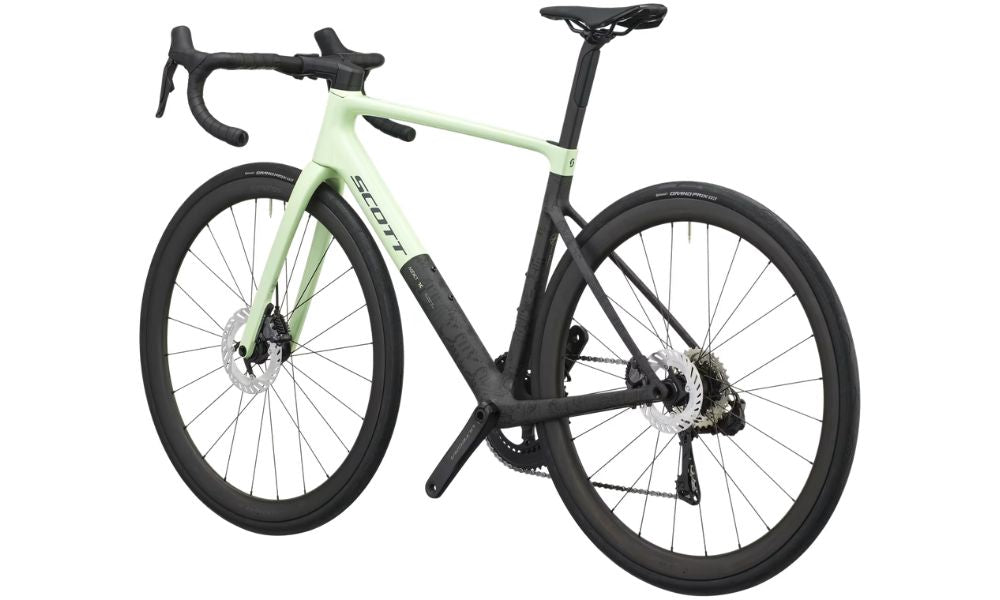

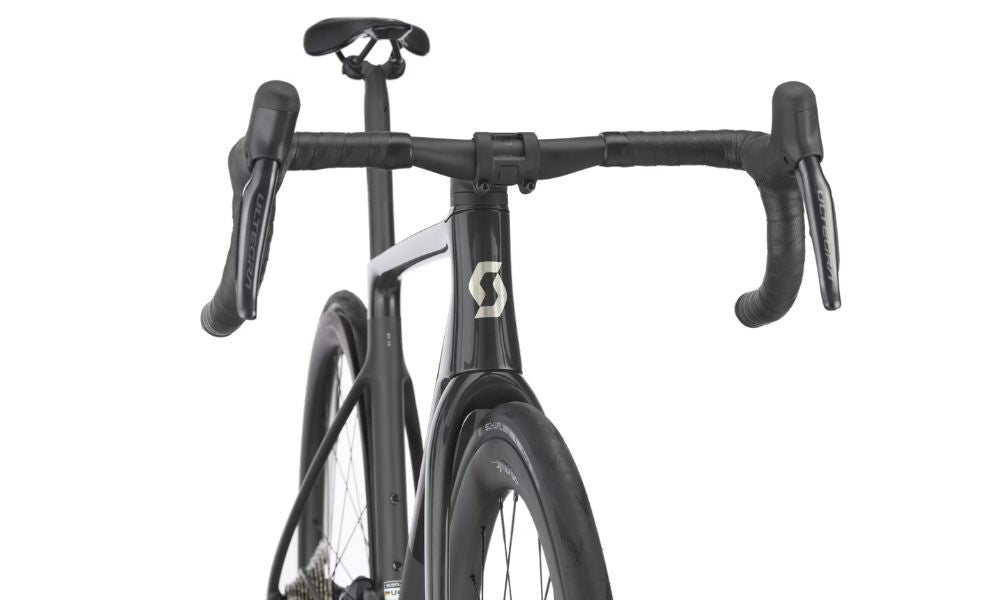

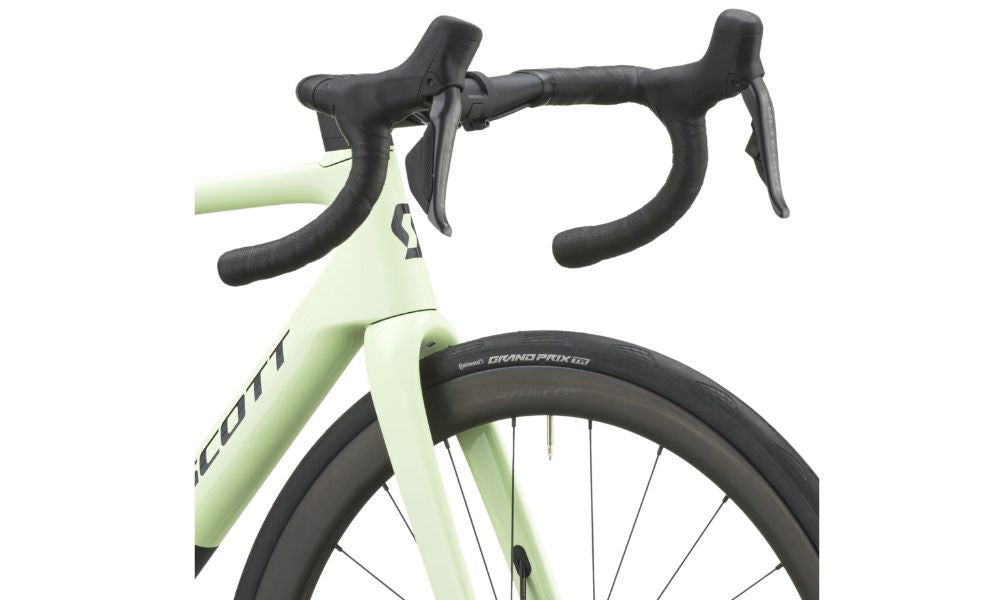

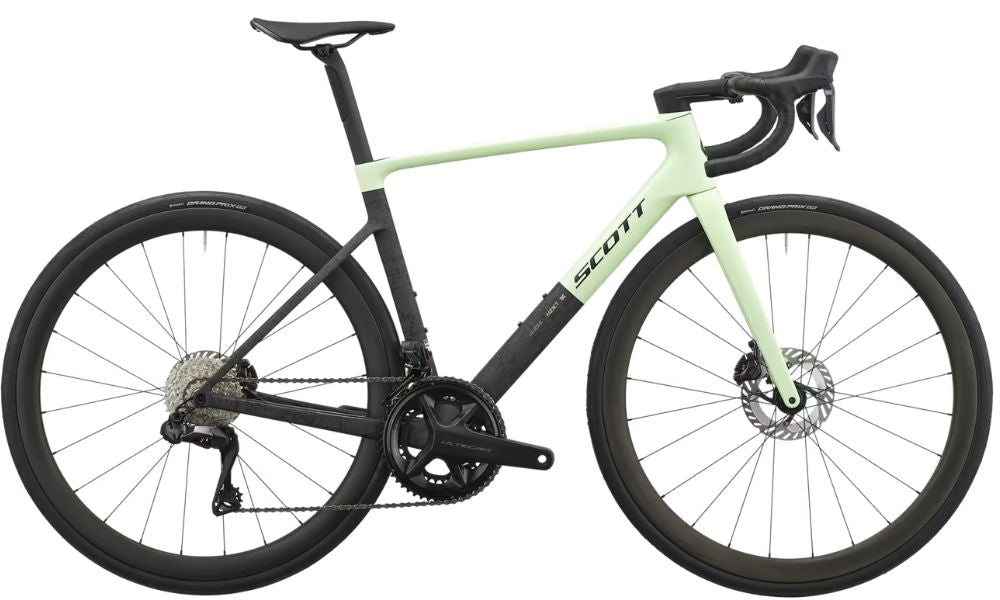

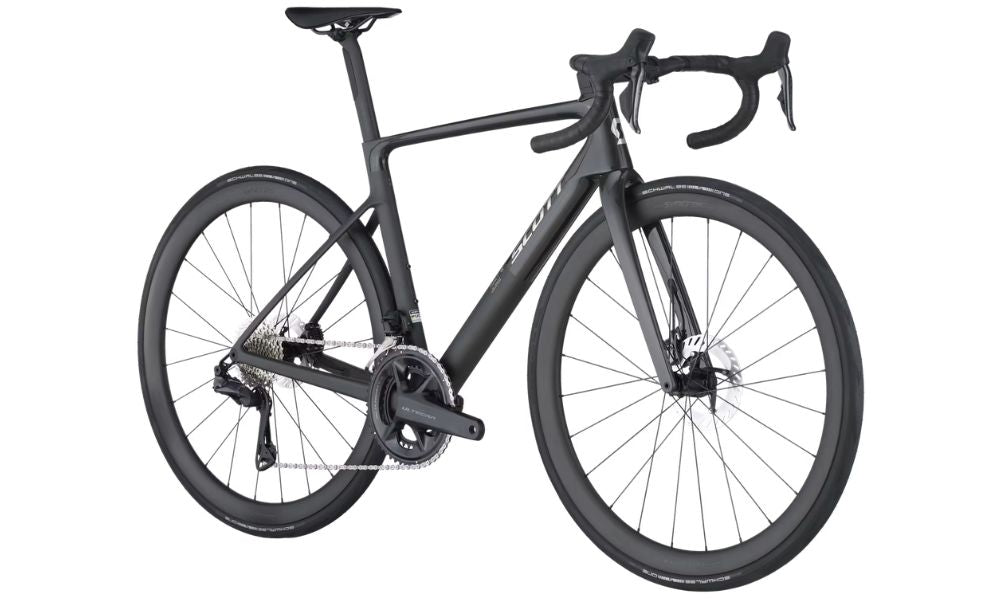

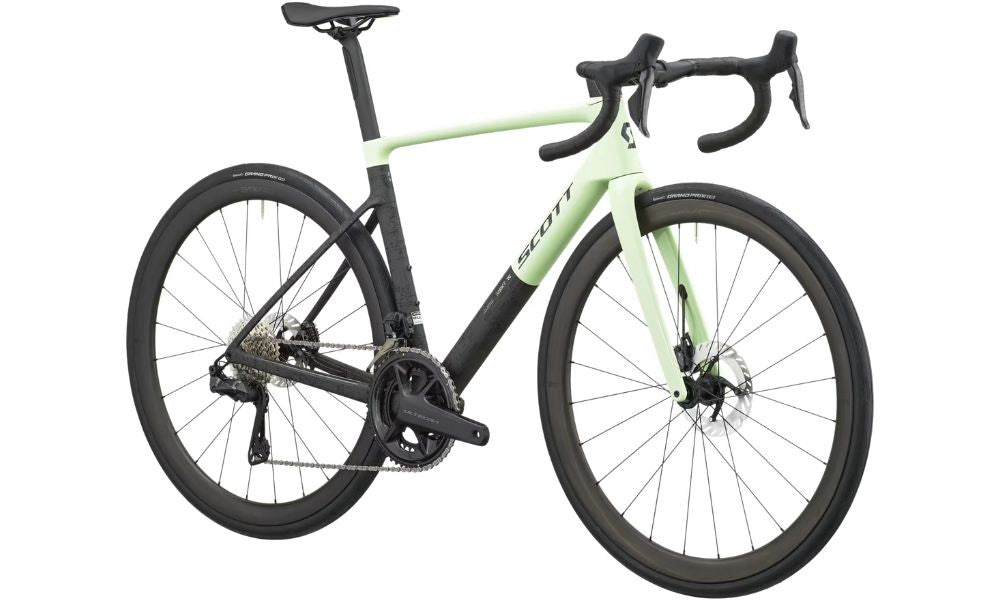

Colour: Cream Green/Carbon Black or Carbon Black

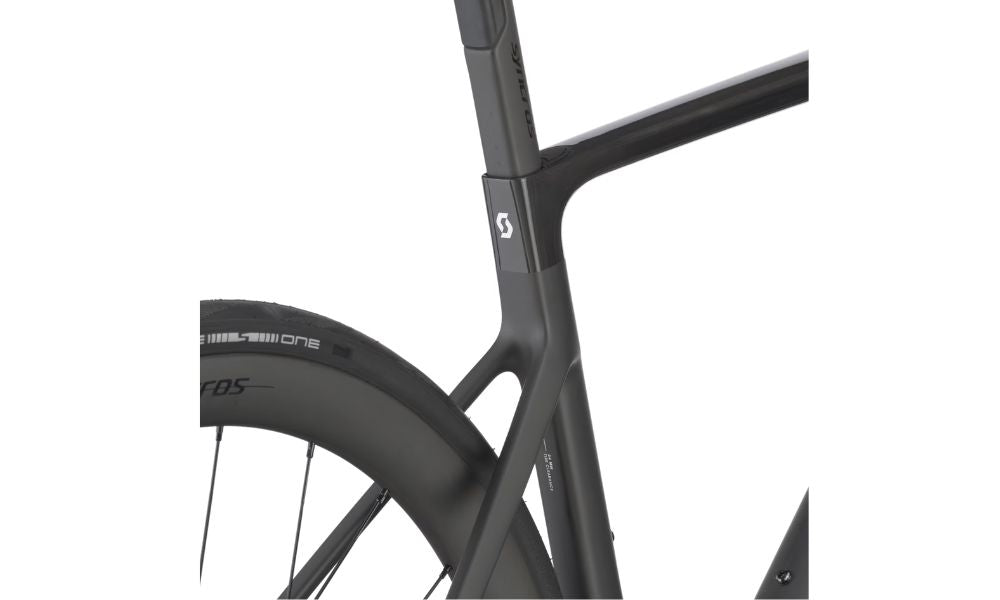

Frame: Addict RC HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork: Addict RC HMX Flatmount Disc, 27.2mm eccentric carbon steerer
Shock:

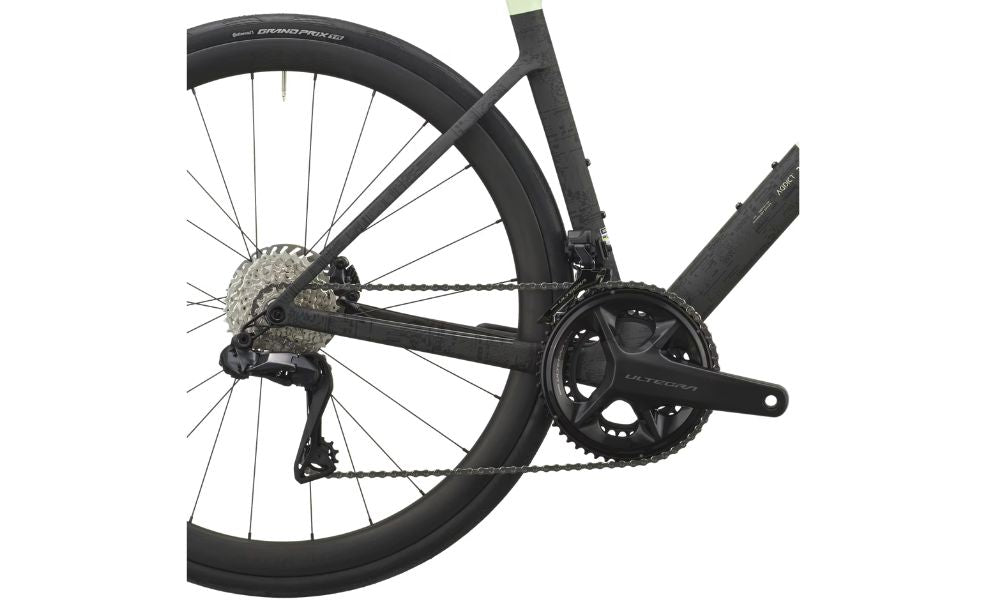

Drivetrain

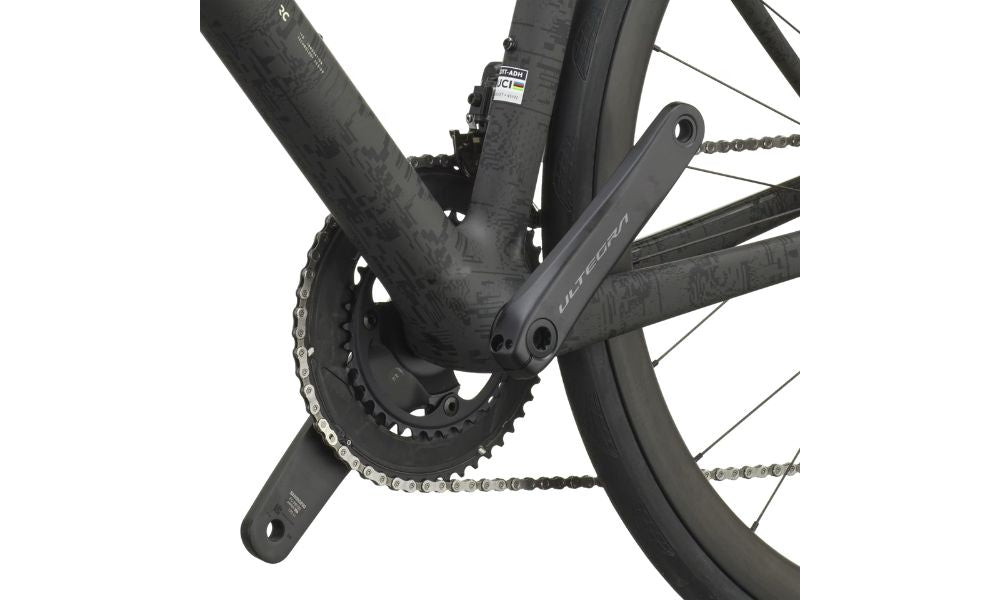

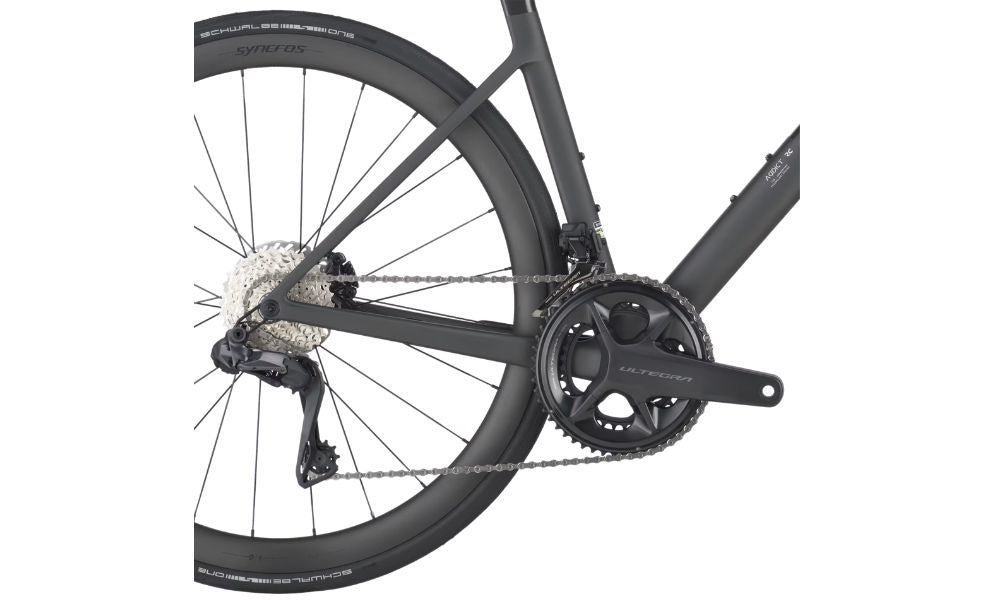

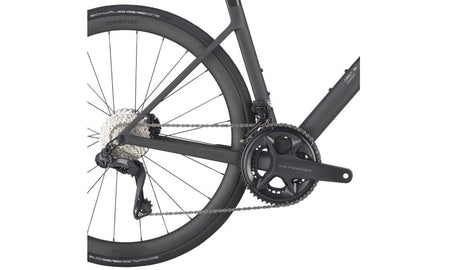

Crankset: Shimano Ultegra FC-R8100, Hollowtech II 52-36T
Pedals:
Chain: Shimano CN-M8100
Bottom Bracket: Shimano SM-BB71-41B
Rear Derailleur: Shimano Ultegra Di2 RD-R8150 24 Speed, Electronic Shift System
Front Derailleur: Shimano Ultegra Di2 FD-R8150, Electronic Shift System
Derailleur Shifter: Shimano Ultegra Di2 ST-R8170, 24 Speed Electronic Shift System, Shimano BR-R8170 Hyd.Disc
Freewheel/Cassette: Shimano Ultegra CS-R8100-12, 11-34

Braking System

Brakes: Shimano BR-R8170 Hyd.Disc
Brake Levers:

Wheels

Tyres: Continental Grand Prix TR 30x622
Wheels/Rims: Syncros Capital 1.0 40 Disc, 24 Front, 24 Rear, Syncros Axle
Hubs: [F] [R]

Other

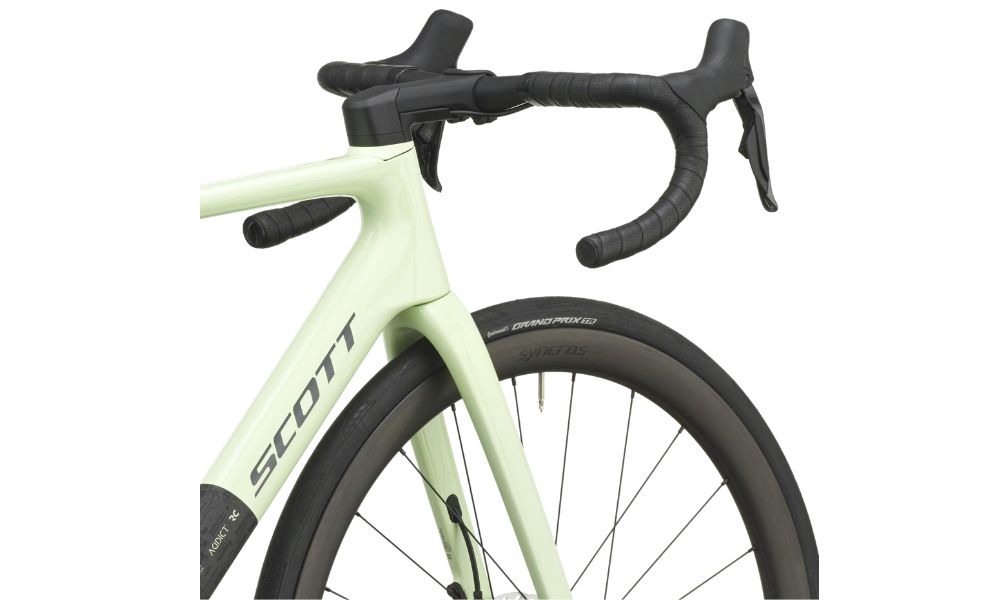

Handlebar: Syncros HB-R100-CF
Stem: Syncros ST-R100-AL

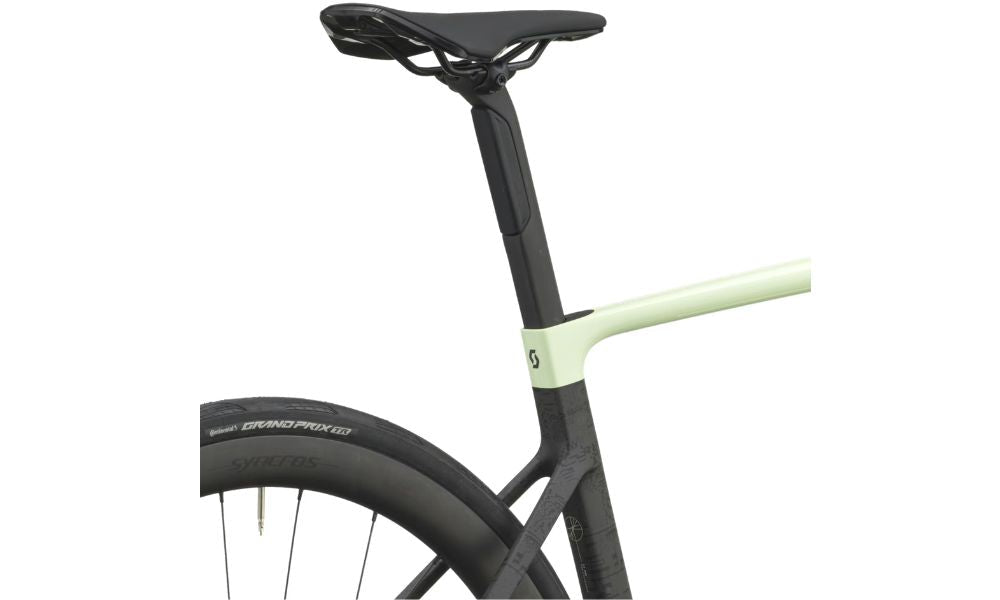

Seat Post: Syncros SP-R101-CF
Saddle: Syncros Belcarra V2.0 Cut-out, CrMo rails

Geometry

Scott Addict RC 20

Sizes in:

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	71.3 mm	71.8 mm	72.3 mm	72.8 mm	73.4 mm	73.6 mm	73.8 mm
B head tube length	90.0 mm	100.0 mm	113.0 mm	130.0 mm	150.0 mm	170.0 mm	190.0 mm
C top tube horizontal	519.0 mm	528.0 mm	542.0 mm	555.0 mm	572.0 mm	586.0 mm	602.0 mm
D standover height	725.0 mm	740.0 mm	758.0 mm	778.0 mm	799.0 mm	820.0 mm	840.0 mm
E BB offset	-74.0 mm	-74.0 mm	-73.0 mm	-72.0 mm	-72.0 mm	-72.0 mm	-72.0 mm
F BB height	270.5 mm	270.5 mm	271.5 mm	272.5 mm	272.5 mm	272.5 mm	272.5 mm
G wheel base	977.0 mm	983.2 mm	988.8 mm	990.8 mm	999.0 mm	1006.4 mm	1015.4 mm
H BB center to toptube center	412.5 mm	432.5 mm	452.1 mm	472.0 mm	492.2 mm	512.3 mm	532.4 mm
I BB center to top of seattube	422.5 mm	442.5 mm	462.1 mm	482.0 mm	502.2 mm	522.3 mm	542.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	72.8 mm	72.5 mm
K chainstay	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm
L reach	379.4 mm	386.3 mm	391.6 mm	395.2 mm	402.6 mm	406.1 mm	411.3 mm
M stack	501.3 mm	512.5 mm	525.5 mm	543.3 mm	564.5 mm	584.3 mm	604.2 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	360.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm
P cockpit reach	530.0 mm	547.0 mm	563.0 mm	577.0 mm	585.0 mm	599.0 mm	604.0 mm
Q cockpit min. stack	562.0 mm	573.0 mm	586.0 mm	604.0 mm	623.0 mm	643.0 mm	662.0 mm
R crank arm length	165.0 mm	165.0 mm	170.0 mm	170.0 mm	172.5 mm	172.5 mm	175.0 mm
S fork offset	47.0 mm	47.0 mm	47.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm

Size Chart for Scott Addict RC 20 Bike
