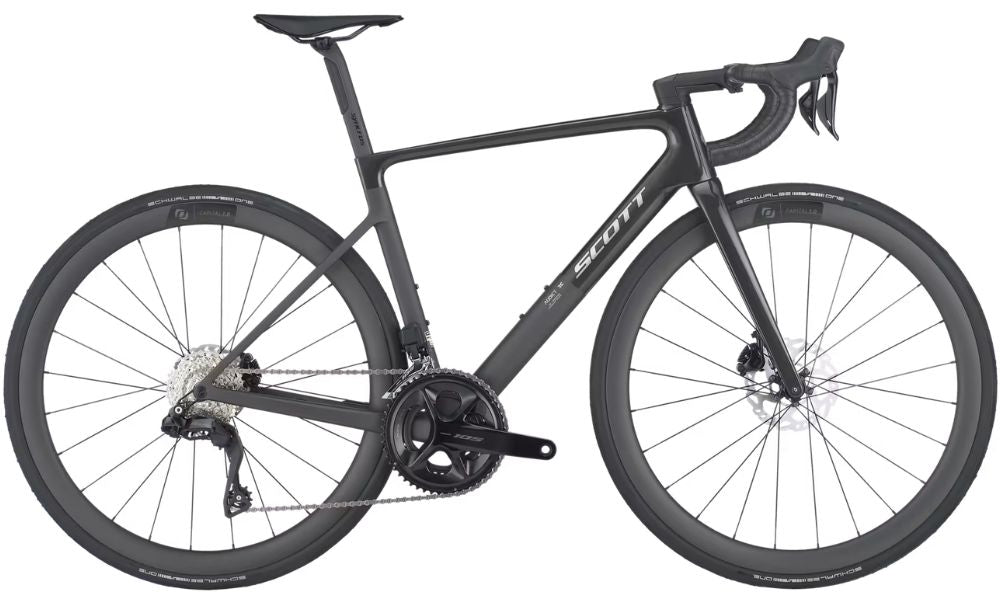

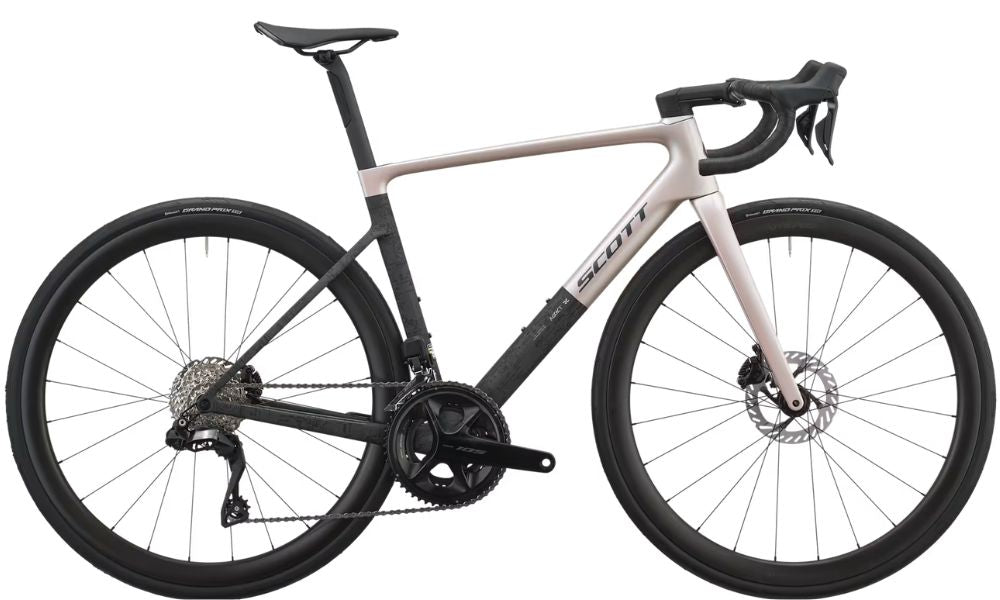

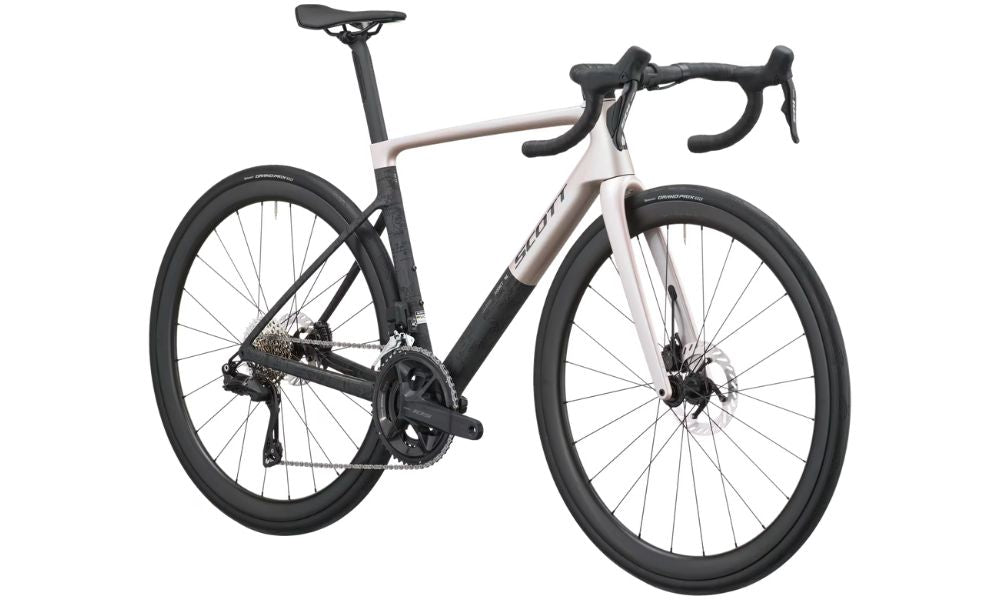

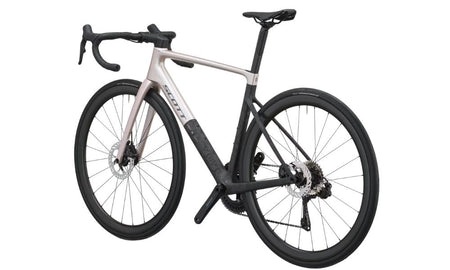

Scott Addict RC 30

Engineered to defy gravity and elevate your performance, the Addict RC is our lightest production race bike ever. Whether you're attacking steep climbs or sprinting for the finish line, every aspect of this bike was meticulously crafted with one thing in mind – leaving everyone else in the dust.

Specifications

Scott Addict RC 30

Frame

Size: XXS, XS, S, M, L, XL and XXL

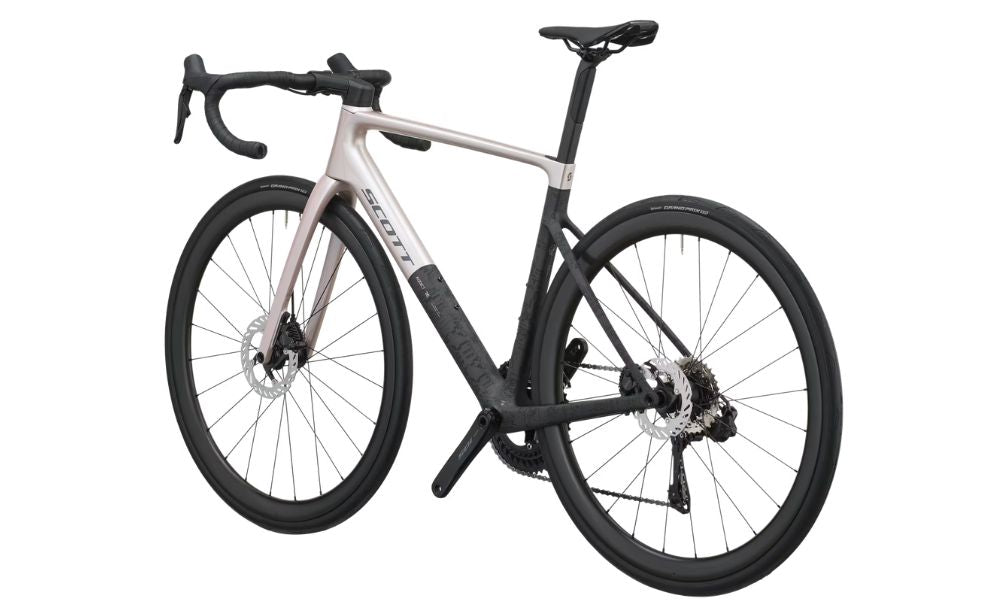

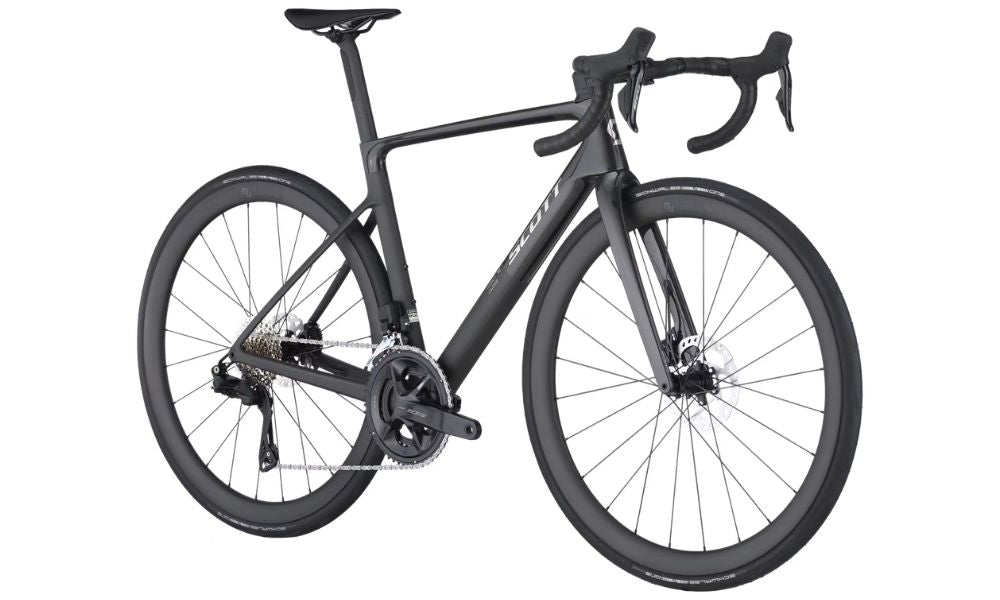

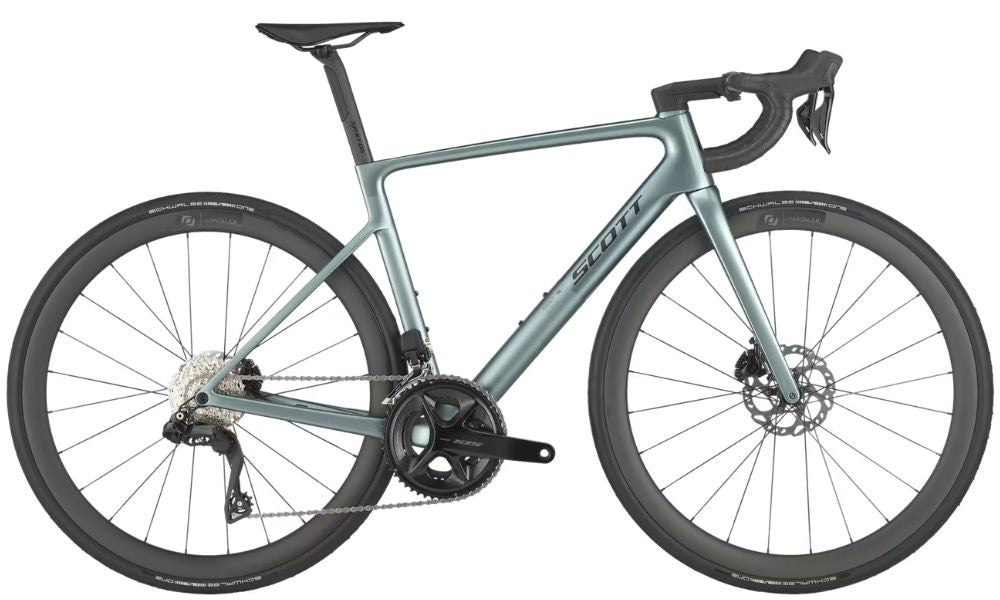

Colour: Carbon Black, Champgane PInk/Carbon Black or Whale Grey

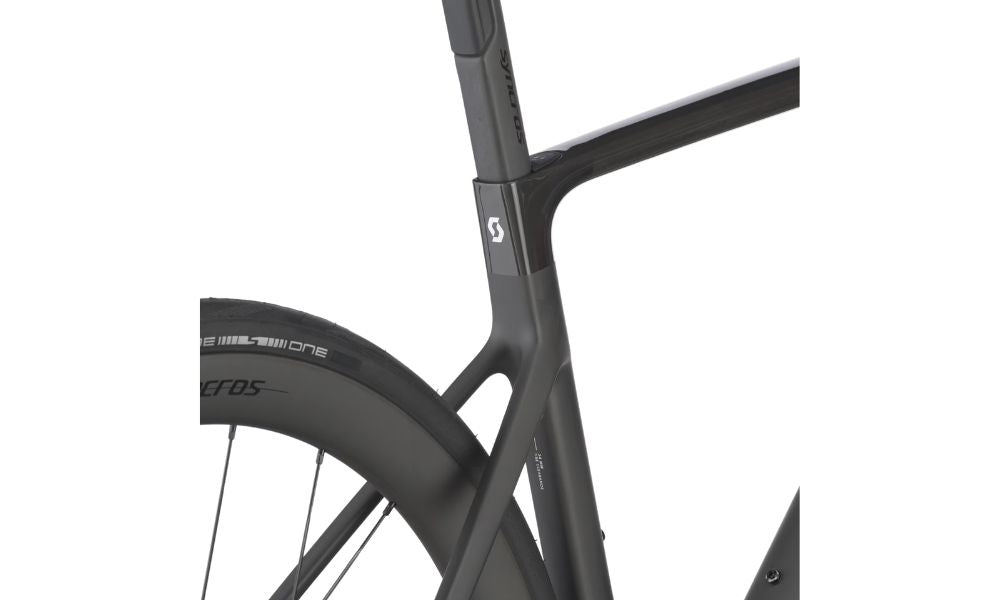

Frame: Addict RC HMX, race geometry, replaceable derailleur hanger, internal cable routing

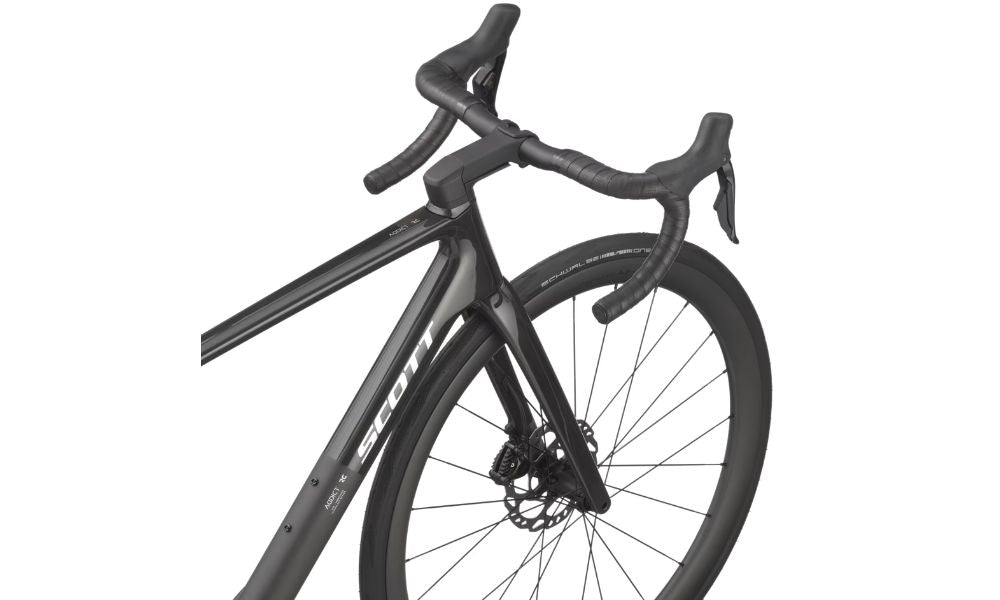

Fork: Addict RC HMX Flatmount Disc, 27.2mm eccentric carbon steerer
Shock:

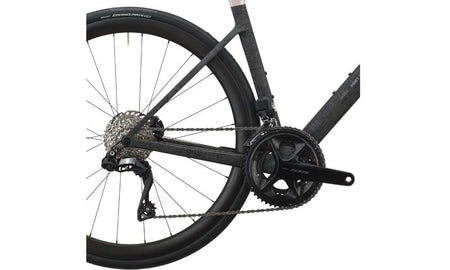

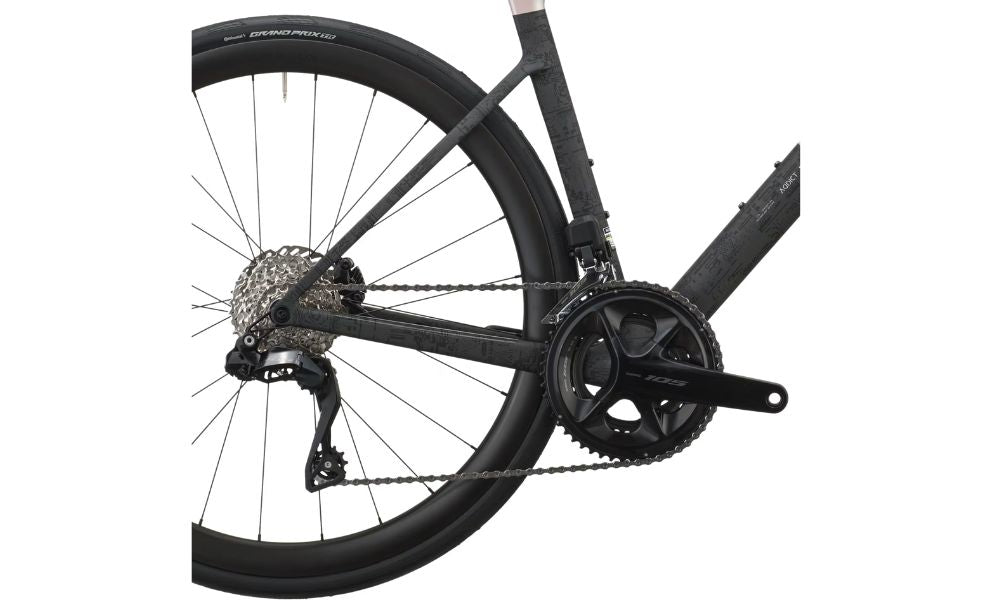

Drivetrain

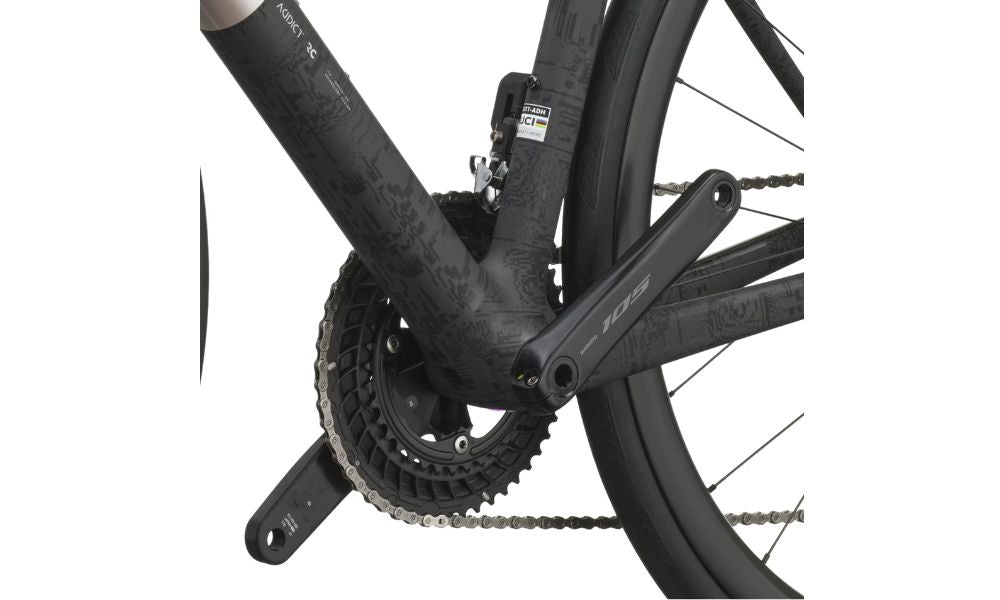

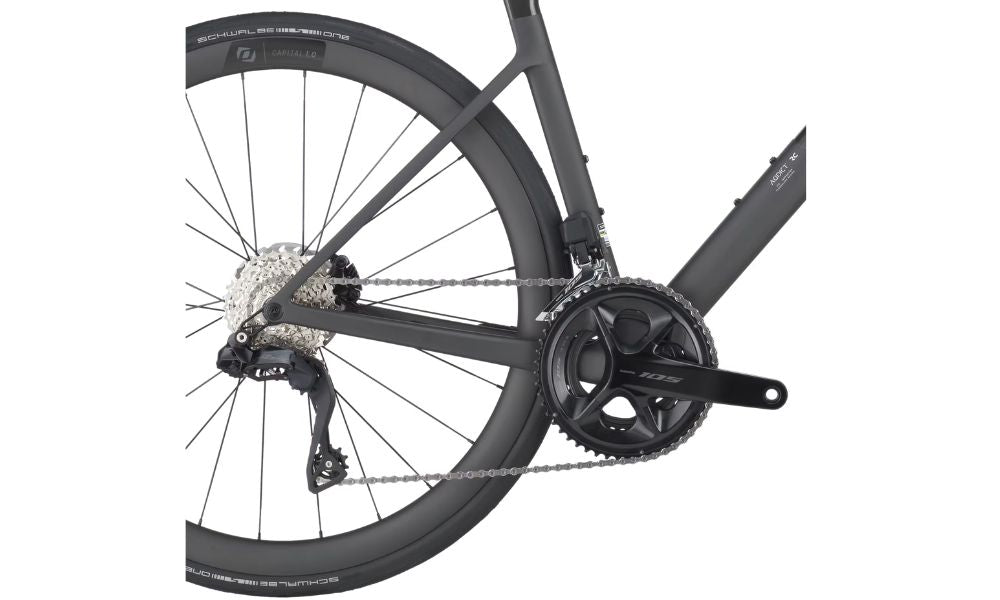

Crankset: Shimano 105 FC-R7100, Hollowtech II 52-36T
Pedals:
Chain: Shimano CN-M6100
Bottom Bracket: Shimano BB-RS500-PB
Rear Derailleur: Shimano 105 Di2 RD-R7150 24 Speed, Electronic Shift System
Front Derailleur: Shimano 105 Di2 FD-R7150, Electronic Shift System
Derailleur Shifter: Shimano 105 Di2 ST-R7170, 24 Speed Electronic Shift System, Shimano BR-R7170 Hyd.Disc
Freewheel/Cassette: Shimano CS-R7100, 11-34

Braking System

Brakes: Shimano BR-R7170 Hyd.Disc
Brake Levers:

Wheels

Tyres: Continental Grand Prix TR 30x622
Wheels/Rims: Syncros Capital 1.0 40 Disc, 24 Front, 24 Rear, Syncros Axle
Hubs: [F] [R]

Other

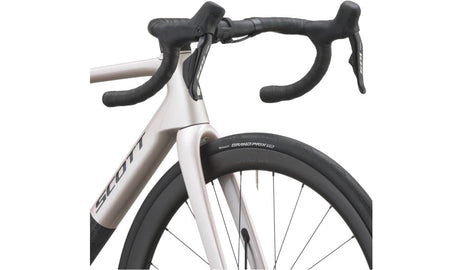

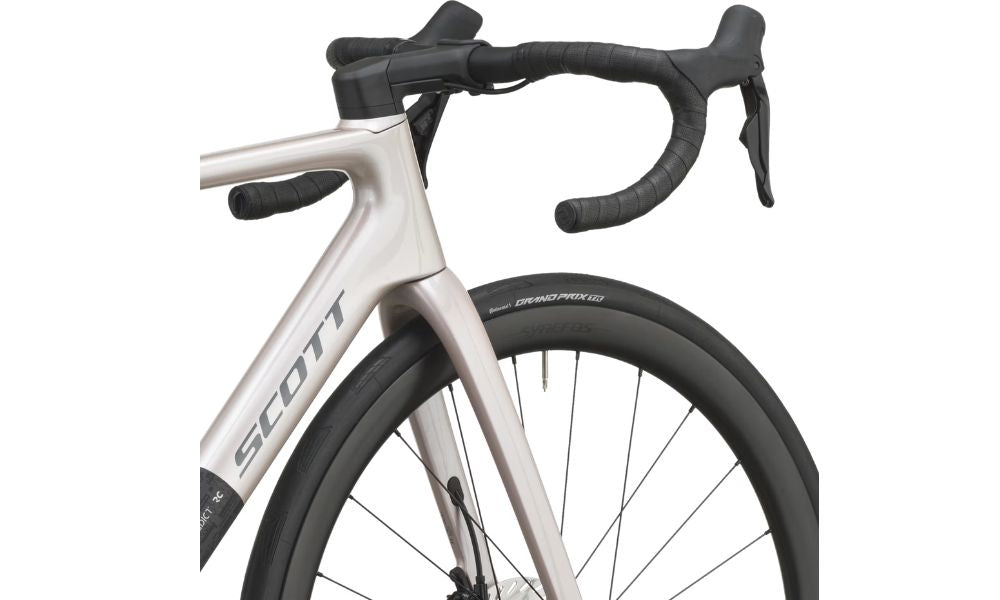

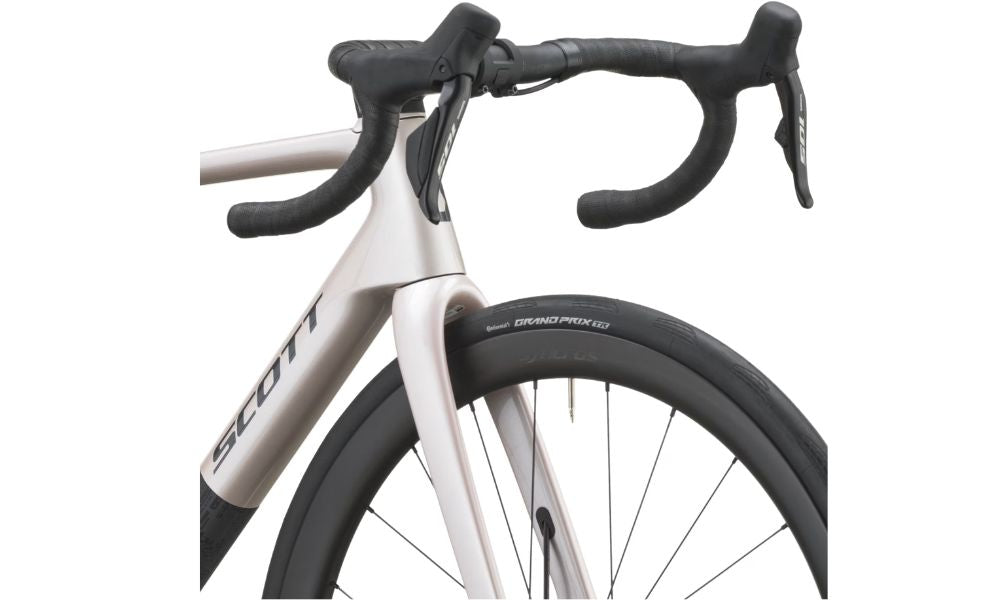

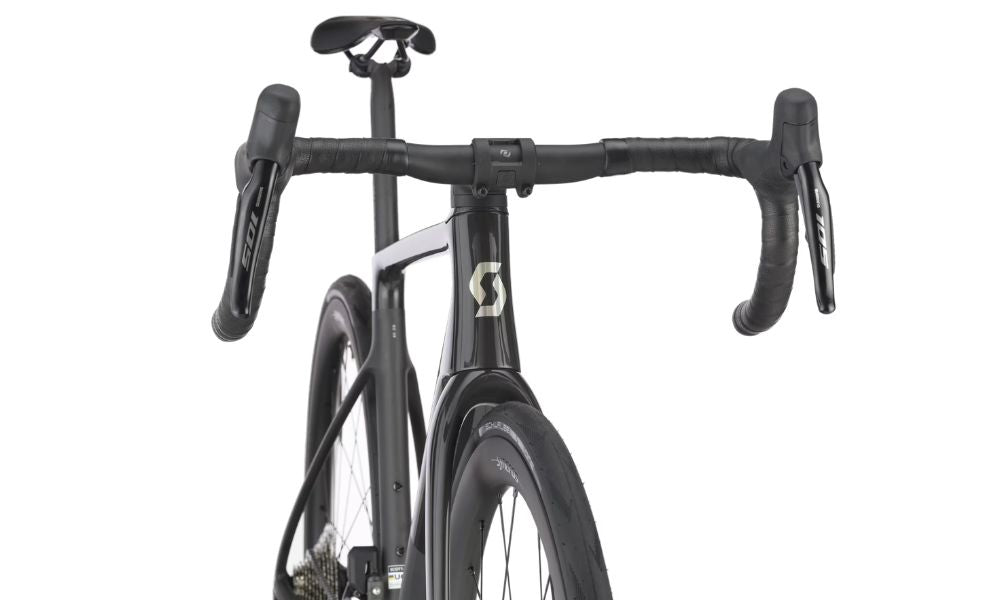

Handlebar: Syncros HB-R100-AL
Stem: Syncros ST-R100-AL

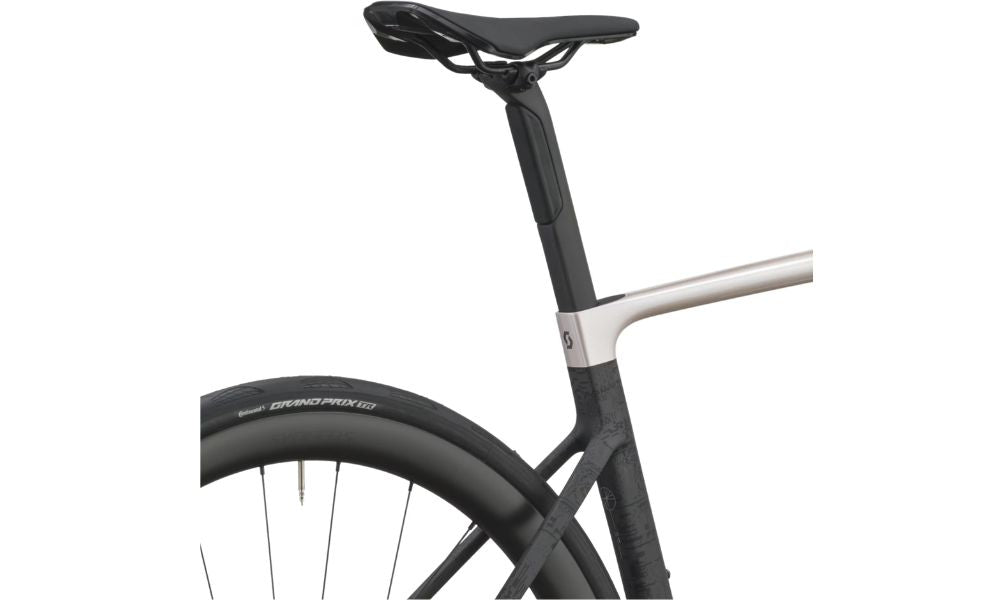

Seat Post: Syncros SP-R101-CF
Saddle: Syncros Belcarra V2.0 Cut-out, CrMo rails

Geometry

Scott Addict RC 30

Sizes in:

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	71.3 mm	71.8 mm	72.3 mm	72.8 mm	73.4 mm	73.6 mm	73.8 mm
B head tube length	90.0 mm	100.0 mm	113.0 mm	130.0 mm	150.0 mm	170.0 mm	190.0 mm
C top tube horizontal	519.0 mm	528.0 mm	542.0 mm	555.0 mm	572.0 mm	586.0 mm	602.0 mm
D standover height	725.0 mm	740.0 mm	758.0 mm	778.0 mm	799.0 mm	820.0 mm	840.0 mm
E BB offset	-74.0 mm	-74.0 mm	-73.0 mm	-72.0 mm	-72.0 mm	-72.0 mm	-72.0 mm
F BB height	270.5 mm	270.5 mm	271.5 mm	272.5 mm	272.5 mm	272.5 mm	272.5 mm
G wheel base	977.0 mm	983.2 mm	988.8 mm	990.8 mm	999.0 mm	1006.4 mm	1015.4 mm
H BB center to toptube center	412.5 mm	432.5 mm	452.1 mm	472.0 mm	492.2 mm	512.3 mm	532.4 mm
I BB center to top of seattube	422.5 mm	442.5 mm	462.1 mm	482.0 mm	502.2 mm	522.3 mm	542.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	72.8 mm	72.5 mm
K chainstay	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm
L reach	379.4 mm	386.3 mm	391.6 mm	395.2 mm	402.6 mm	406.1 mm	411.3 mm
M stack	501.3 mm	512.5 mm	525.5 mm	543.3 mm	564.5 mm	584.3 mm	604.2 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	360.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm
P cockpit reach	530.0 mm	547.0 mm	563.0 mm	577.0 mm	585.0 mm	599.0 mm	604.0 mm
Q cockpit min. stack	562.0 mm	573.0 mm	586.0 mm	604.0 mm	623.0 mm	643.0 mm	662.0 mm
R crank arm length	165.0 mm	165.0 mm	170.0 mm	170.0 mm	172.5 mm	172.5 mm	175.0 mm
S fork offset	47.0 mm	47.0 mm	47.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm
