Profile Design - Sonic Ergo 39a

PROFILE DESIGN - SONIC ERGO 39A

REPLACES THE 35a & 43a

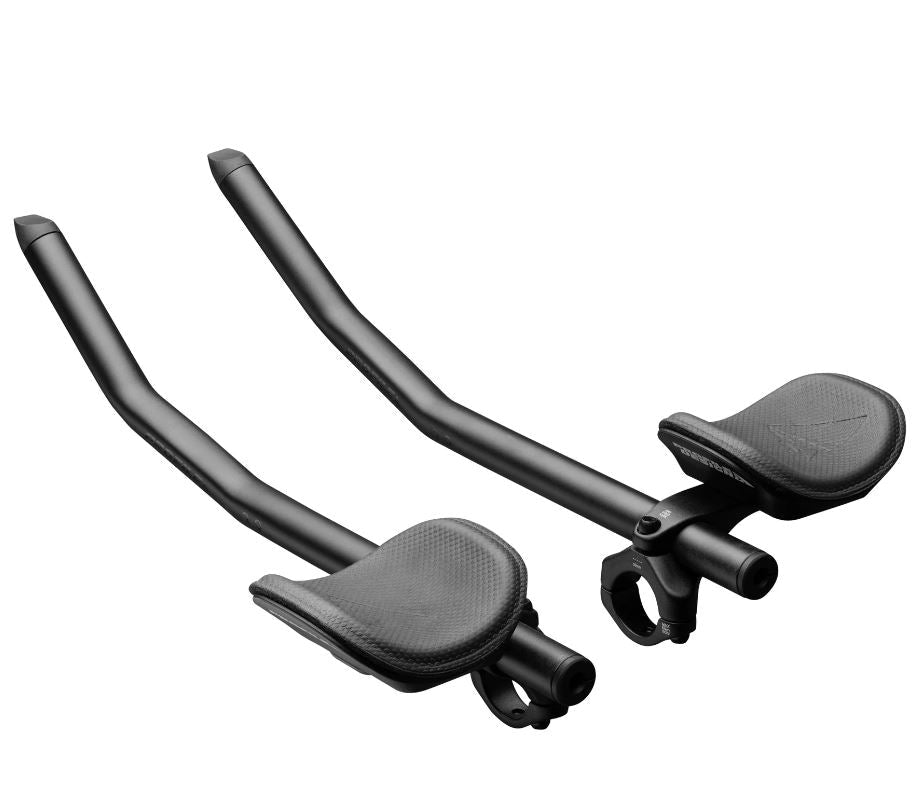

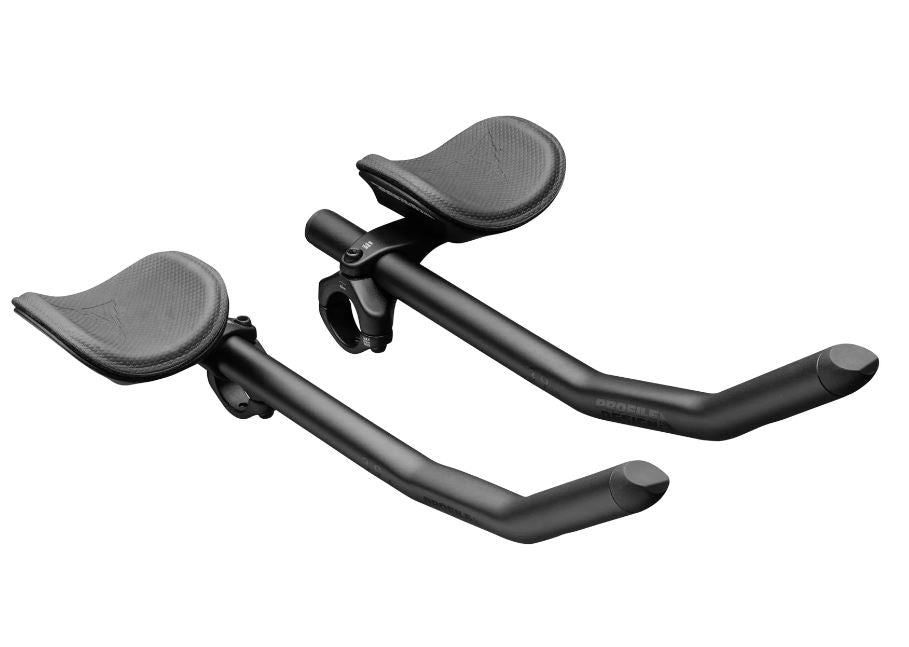

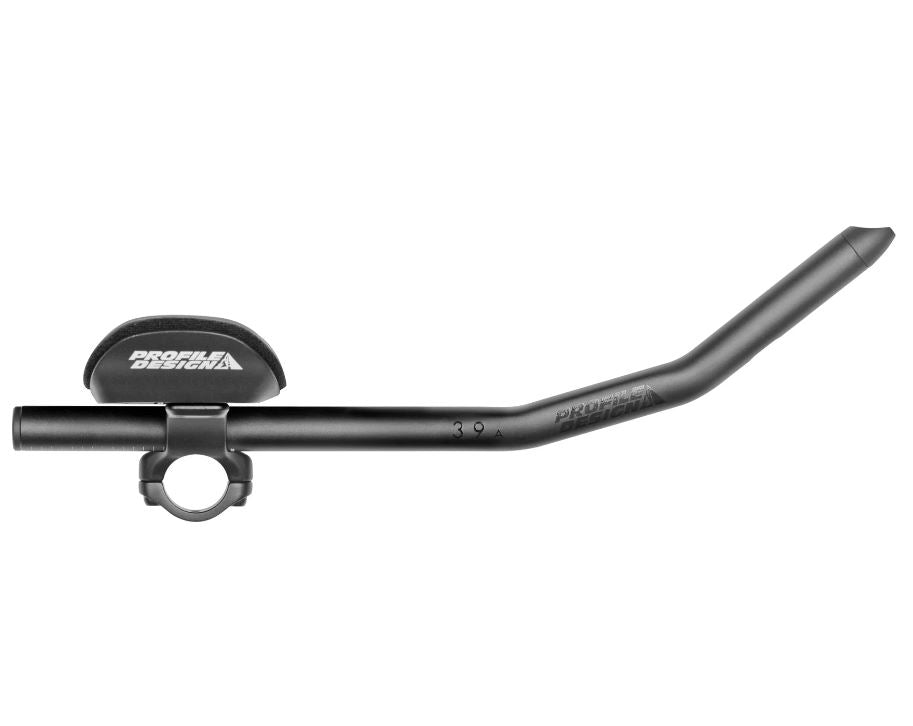

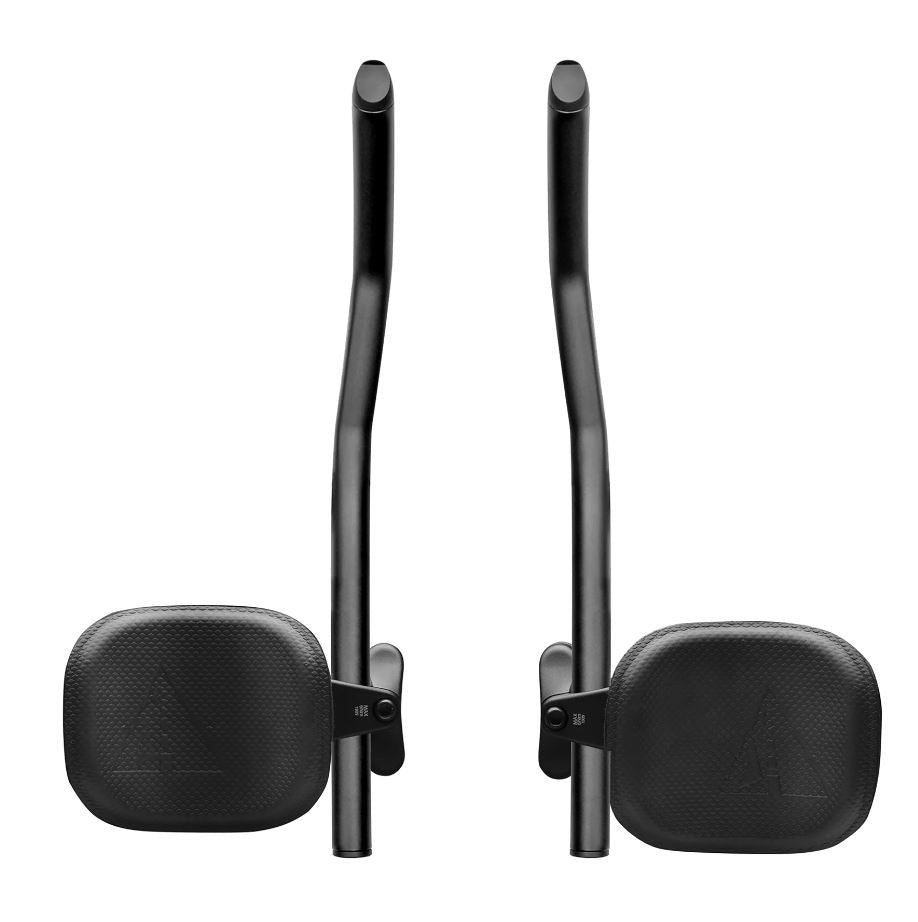

The Sonic bracket offers an extensive fit range, low weight and easy adjustment along with minimal frontal area. Combining this with the Ergo armrest creates an aerobar that will aid most riders in optimising their position for both speed and comfort.

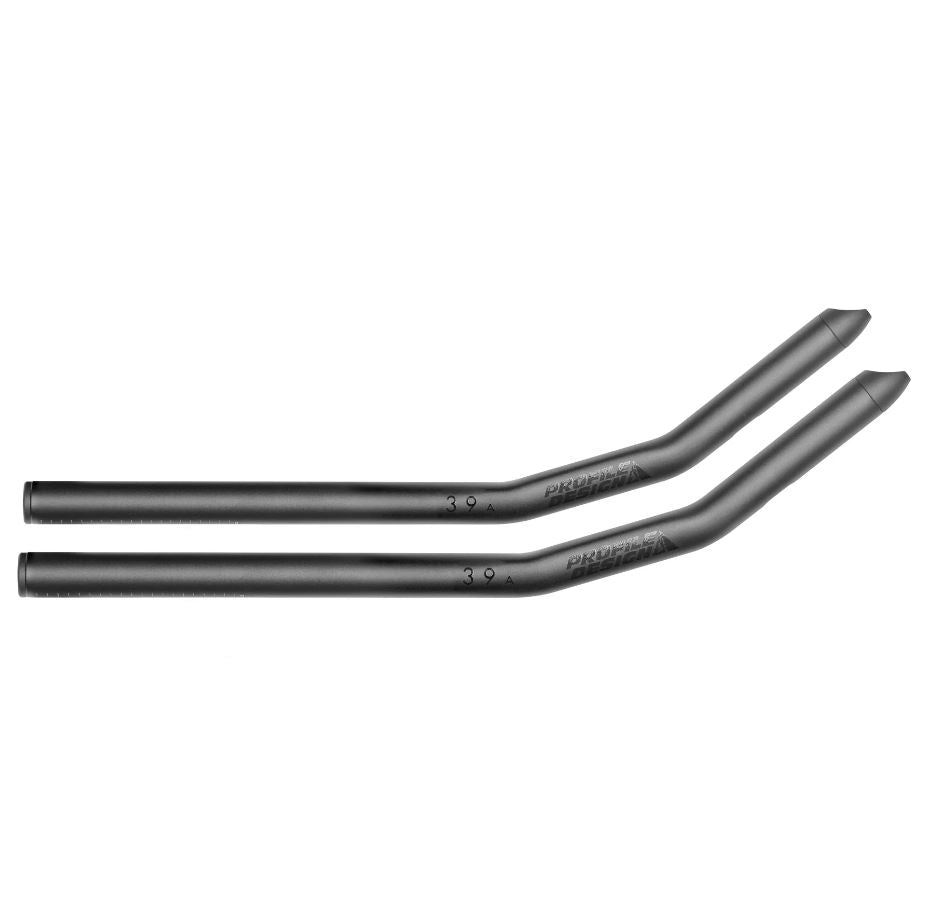

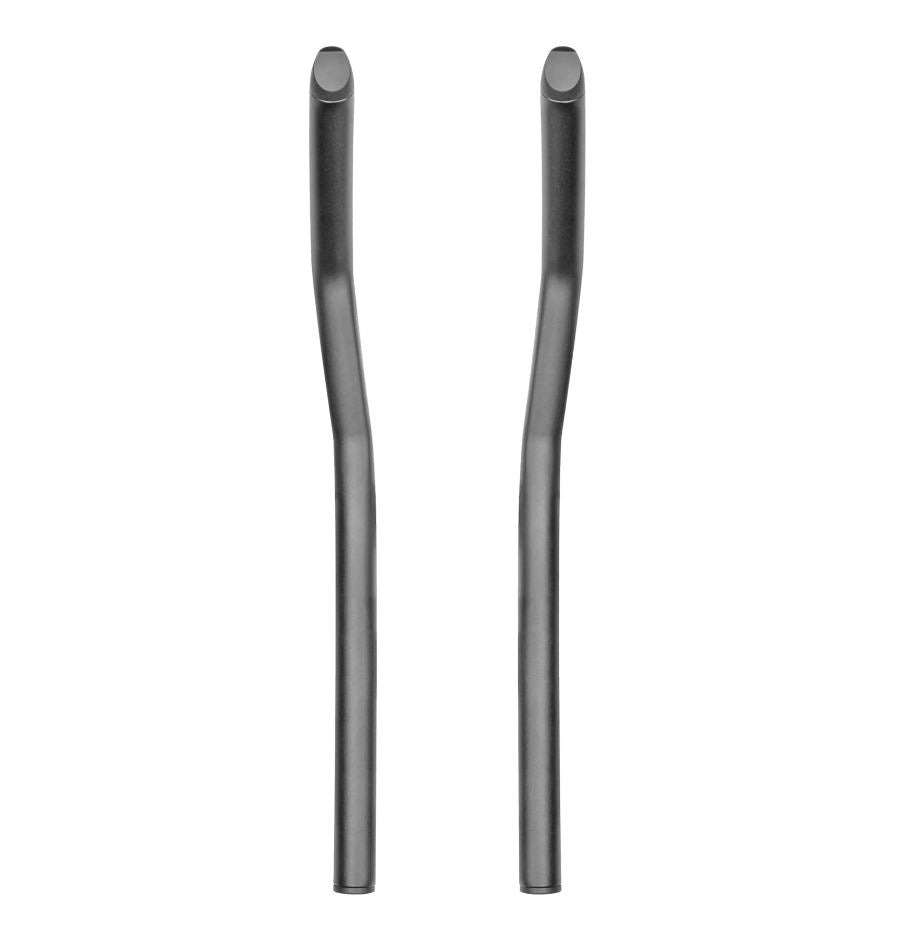

The 39A is one of the newest versions of our reliable aluminium extension range.

Performance

The Sonic/Ergo is designed to present minimal frontal area to create as little aerodynamic drag as possible. The main purpose of an aerobar is, of course, to get the rider into a fast position despite a fairly minimalist appearance the Sonic/Ergo offers a comprehensive fit range for exactly this purpose.

Fit Data

The 39a extensions have a 39° for the grip . The rider can choose whether to hold high for the shrugged position or low for a more open, head up position.

There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. This is the most adjustable clip on bar on the market (and in history).

• Armrest Offset: -70mm to -17.5mm in 7.5mm steps
• Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
• Armrest Stack:  60mm (no riser kit) to 130mm in 5mm increments (With aftermarket Riser Kit)

Tech Specs:

• Bracket: Sonic
• Clamp Diameter: 31.8mm (26.0 w/Shims)
• Armrest:  Ergo / 10mm Pads
• Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
• Armrest Offset: -70mm to -17.5mm in 7.5mm steps
• Armrest Stack: The minimum is 60mm and the bracket is compatible with our existing risers which add up to 130mm stack with (70mm of spacers added)
• Construction: 6061-T6 aluminum, pre-drilled for bar-end shifter cable routing

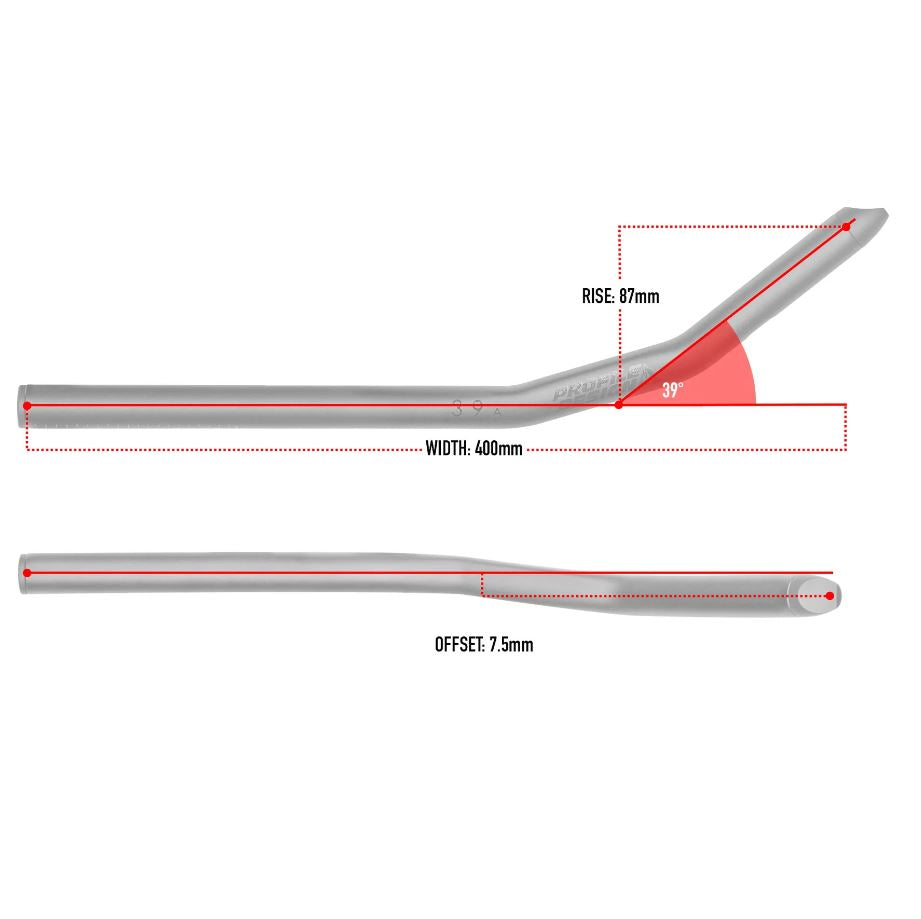

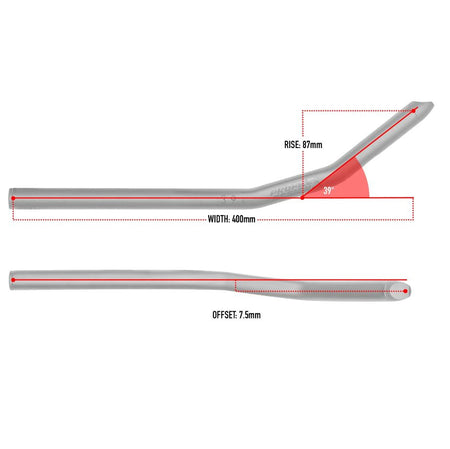

• Extension Length: 400mm
• Extension Angle: 39 Degrees
• Extension Rise: 87mm (bottom to top)
• Extension Offset: 15mm total
• Outer Diameter: 22.2mm
• Inner Diameter: 19.2mm
• Shifter Compatibility: Electronic or Mechanical
• Weight: 564g
