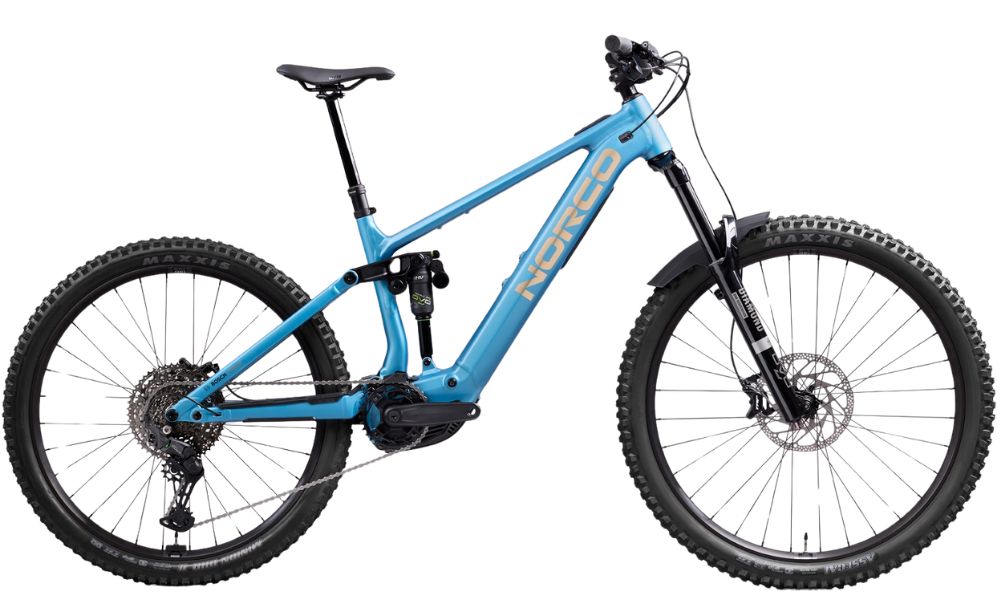

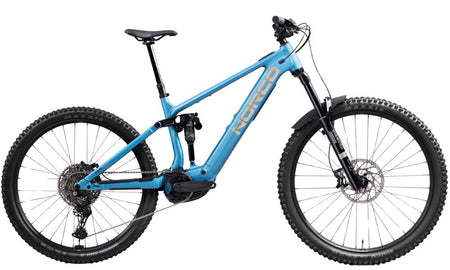

Norco 2026 Sight VLT PX A3

Sight VLT Bosch A3 delivers full-power eMTB performance where it matters most. No fluff, just composure and confidence. Designed for easy maintenance and serviceability, built for all-mountain riding. With 160 mm of travel in the front and 150 mm in the rear, with Norco’s proven VPS platform and dependable system. Everything you need to get out and go, more.

Performance and control where it counts.

The Norco Sight VLT Bosch A3 delivers top-tier ride quality and exceptional value, without compromising what matters most. At its core, the Bosch PX motor provides the power and torque to conquer the steepest climbs, delivering 90Nm of torque and 700W of peak power. Progressive all-mountain geometry and a mixed-wheel setup give the versatility to tackle any terrain with ease. Size-specific geometry ensures balanced weight distribution and a precise fit across every frame. Meticulously tuned VPS suspension and powerful brakes keep every ride controlled and confident.

  • Confidence in every size - Top-tier ride quality and exceptional value
  • Bosch Power - All the power you need, with natural-feeling delivery
  • Proven All-Mountain Suspension - The perfect balance of playful and confident
  • Durable design - A no-nonsense, dependable build
  • Drive System Reliability - Full support from Bosch
  • Ride Aligned - perfect fit, dialed handling and personalized setup in minutes
  • No Other Way Limited Lifetime Warranty
    • Specifications

    Norco 2026 Sight VLT PX A3

    Frame

    Size: S2, S3, S4
    Colour: Pacific Blue
    Frame: Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
    Fork: DVO Diamond Comp36
    Shock: DVO Opal, 230x60mm TR

    Drivetrain

    Crankset: Prowheel Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
    Pedals:
    Chain: Shimano CUES CN-LG500-Q, 11sp
    Bottom Bracket:
    Rear Derailleur: Shimano CUES RD-U6000, 11sp, GS
    Front Derailleur:
    Shifter: Shimano CUES SL-U6000-11R, 11sp
    Freewheel/Cassette: Shimano CUES CS-LG3400-11, 11-50T, 11sp

    Braking System

    Brakes: TRP Slate EVO, Oraganic Pads
    Brake Levers: TRP Slate EVO

    Wheels

    Tyres: [F] Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding [R] Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
    Wheels/Rims: WTB ST Tough TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R
    Hubs: [F] Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock [R] Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock

    Other

    Handlebar: Norco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
    Stem: Norco 6061, 40mm Length, 35mm Clamp
    Seat Post: TranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
    Saddle: WTB Solano Med, 142x240 mm, Steel Rails

    E-Bike

    Drive Unit: Bosch Performance Line PX, 85 Nm
    Battery: Bosch PowerTube 600 Wh

    Geometry

    Norco 2026 Sight VLT PX A3

    Sight VLT Bosch A

    1 2 3 4 5
    Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
    Travel (mm front/mm rear)
    160/150
    Reach 430 450 470 490 510
    Stack 616 625 634 643 652
    HTA Head Tube Angle
    64
    OS Fork Offset
    44
    ST Seat Tube Length 385 395 415 445 475
    STA Effective Seat Tube Angle 77 77.25 77.5 77.75 78
    RC Rear Centre Length 432 436 440 444 448
    BBDF/R Bottom Bracket Drop (Front/Rear)
    27/8
    BBH Bottom Bracket Height
    347
    HTT Horizontal Top Tube 571 587 604 621 638
    WB Wheelbase 1202 1226 1255 1283 1311
    SOH Standover 696 704 706 723 745
    HT Head Tube Length 100 110 120 130 140
    Trail
    133
    Recommended Seatpost Drop 125 150 170 200 230
    Maximum Post Insertion 240 250 270 300 330
    Stem Length
    40
    Crank Length
    155
    160
    Tire Size
    2.35" – 2.5"
    Water Bottle Compatible 1 x 620mL
    1 x 750mL
