Norco 2026 Range VLT CX C1

(0)
$13,999.00
-13% $15,999.00 $13,999.00
Only 2 left
Low inventory - Hurry up!
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

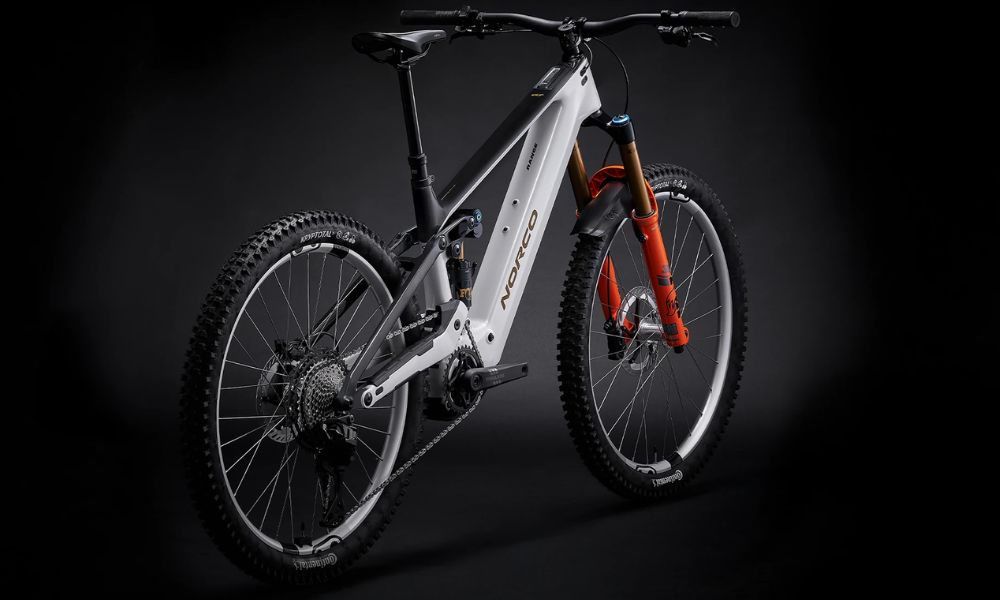

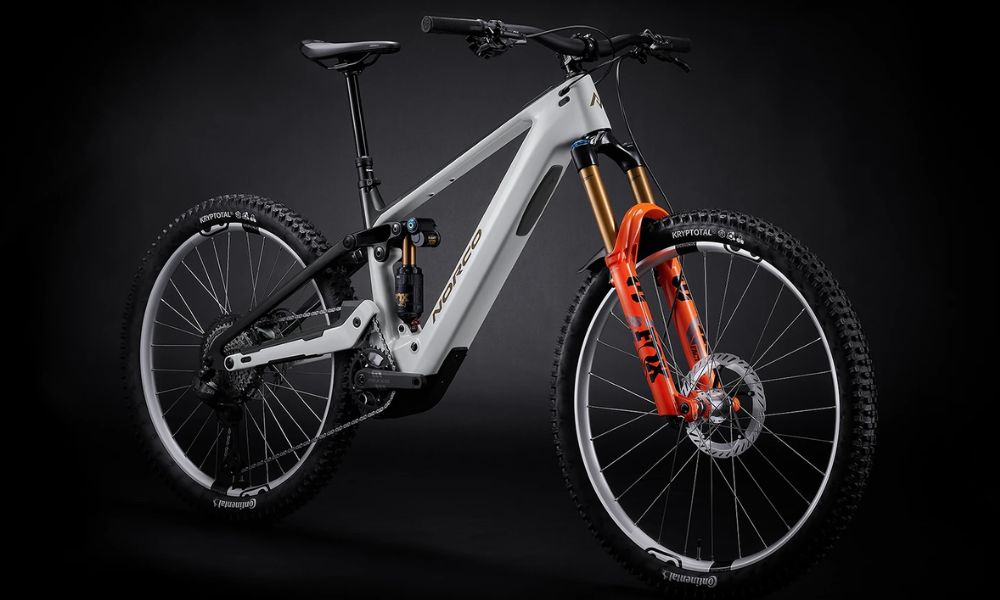

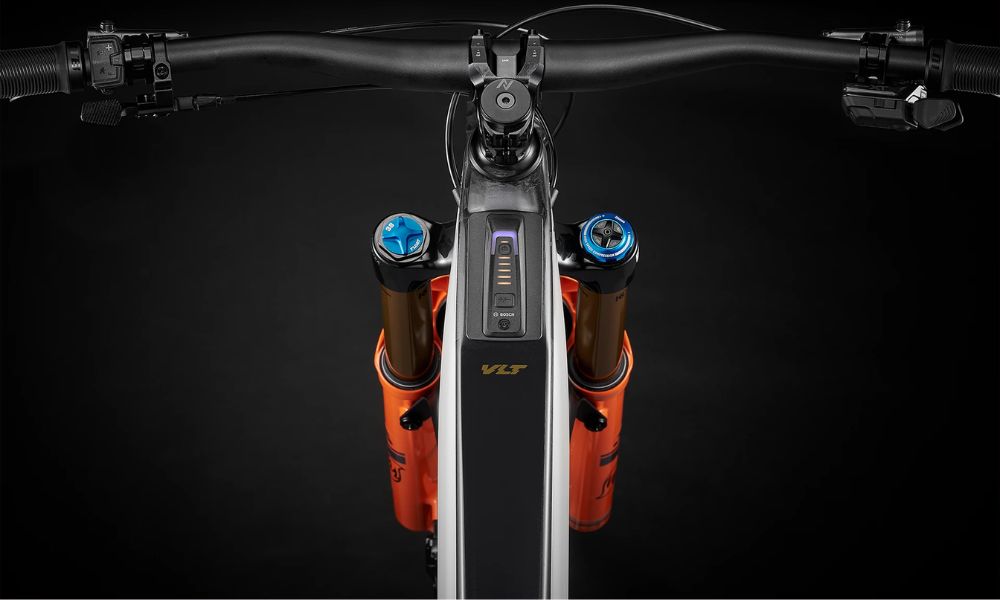

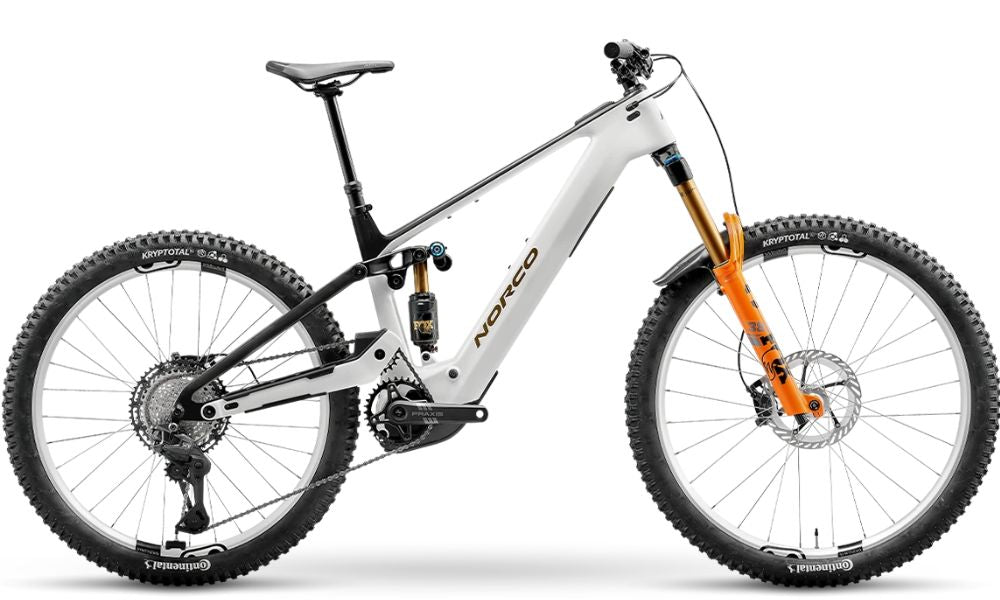

Norco 2026 Range VLT CX C1

A low-weight, full-power VLT with the newest Bosch technology, made to charge the steeps all day.

The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.

The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

  • A more powerful drive system that's lighter, quieter, and more natural feeling than ever before
  • Balanced geometry for maximum control and handling
  • VPSHP suspension platform - High pivot flow to eat up rough terrain with confidence
  • Bombproof components – spec'd for the toughest trails
  • Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
  • No Other Way Limited Lifetime Warranty
Specifications

Norco 2026 Range VLT CX C1

Frame

Size: S2, S3, S4 and S5
Colour: Neve White/Raw Black
Frame: Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned

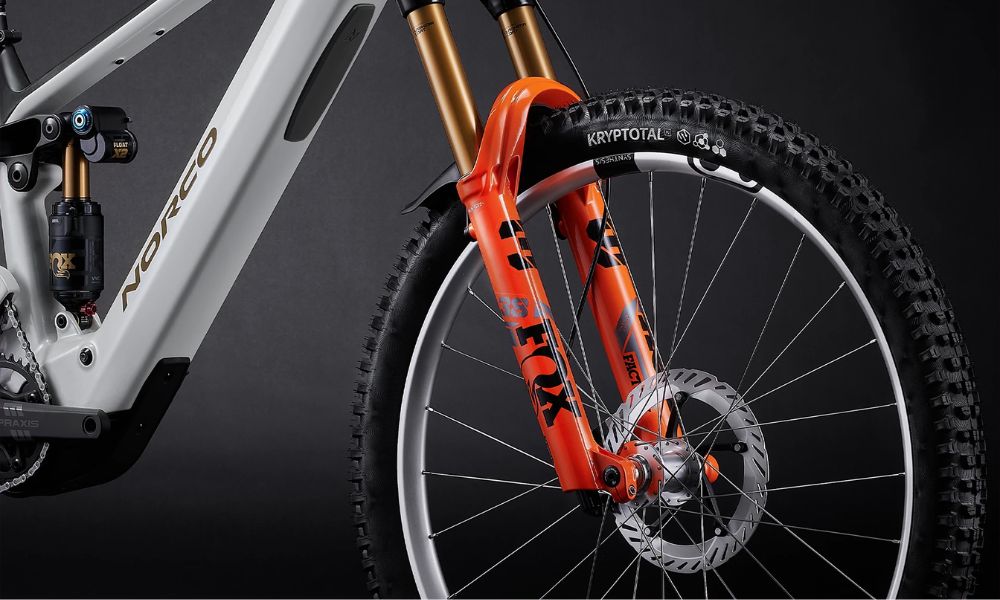

Fork: Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offset, Fender Include
Shock: Fox Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj

Drivetrain

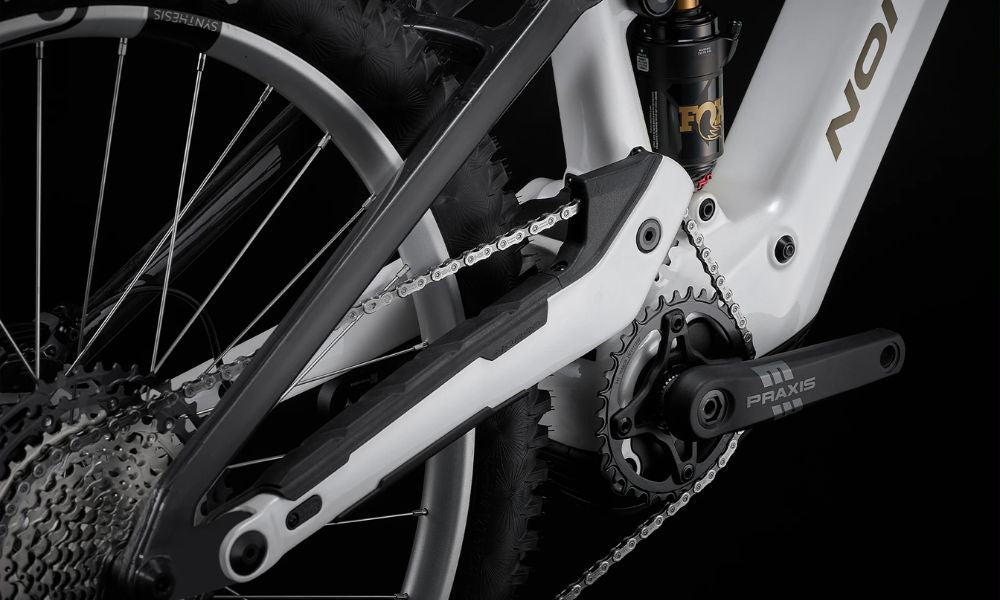

Crankset: Praxis Carbon Bosch Cranks, 34T,165mm
Pedals:
Chain: Shimano Deore XT CN-M8100, 12sp
Bottom Bracket: Bosch BES3 DU
Rear Derailleur: Shimano Deore XT RD-M8250, SGS, 12sp (EMBARGO)
Front Derailleur:
Derailleur Shifter: Shimano Deore XT SW-M8250-IR, 12spd (EMBARGO)
Freewheel/Cassette: Shimano Deore XT CS-M8200-12, 10-51T, 12sp

Braking System

Brakes: Shimano XT M8220 4-P, Mettalic pads
Brake Levers: Shimano XT BL-M8200

Wheels

Tyres: 14 x 2.125" Wanda P-1135
Wheels/Rims: Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29”-27.5 F/R
Hubs: [F] Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6 Bolt [R] Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6 Bolt

Other

Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise
Stem: 6061 Alloy, 40mm Length, 35mm Clamp
Seat Post: TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
Saddle: Fizik Terra Aidon X5

E-Bike

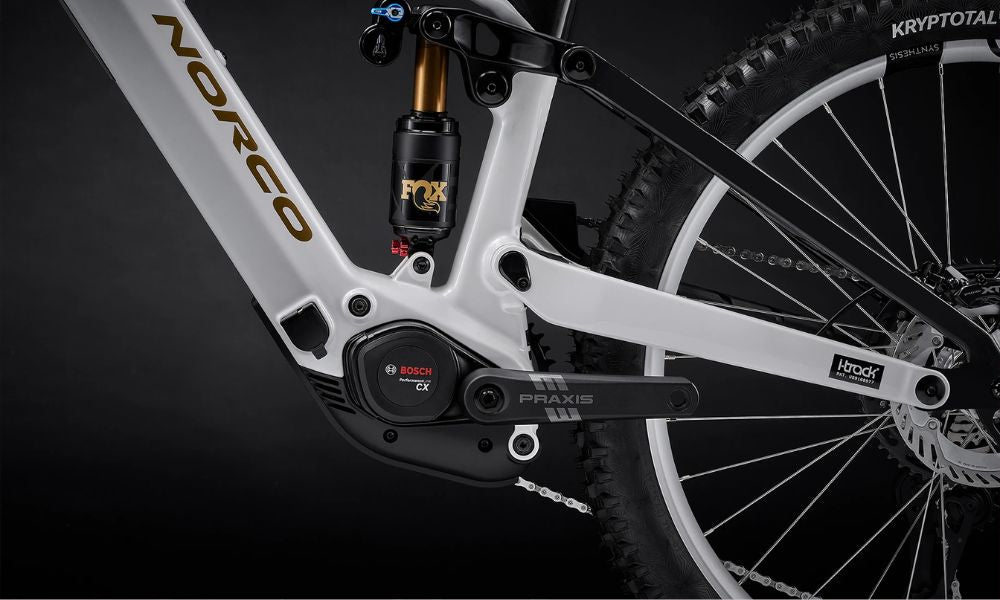

Drive Unit: Bosch Performance Line CX, 100 Nm
Battery: Bosh Power Tube 800 Wh
Controller:
Display:
Charger:

Geomerty

Norco 2026 Range VLT CX C1

Range VLT CX
2 3 4 5
Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
Travel (mm front/mm rear)
170/160
Reach 441 466 491 516
Stack 631 640 650 659
HTA Head Tube Angle
63.5
OS Fork Offset
44
ST Seat Tube Length 395 415 445 475
STA Effective Seat Tube Angle 76.5 77 77.25 77.5
RC Rear Centre Length 432 436 440 444
RC Rear Centre Length at Sag 442 446 450 454
BBDF/R Bottom Bracket Drop (Front/Rear)
20.5/0
BBH Bottom Bracket Height
353
HTT Horizontal Top Tube 589 613 637 661
WB Wheelbase 1228 1261 1295 1328
SOH Standover 705 711 718 733
HT Head Tube Length 115 125 135 145
Trail
138
Recommended Seatpost Drop 150 170
200
Maximum Post Insertion 250 270 300 330
Stem Length
40
Crank Length
165
Tire Size
2.35" - 2.6"
Water Bottle Compatible 1 x 620 mL
1 x 750 mL
