Norco 2025 Storm 120
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

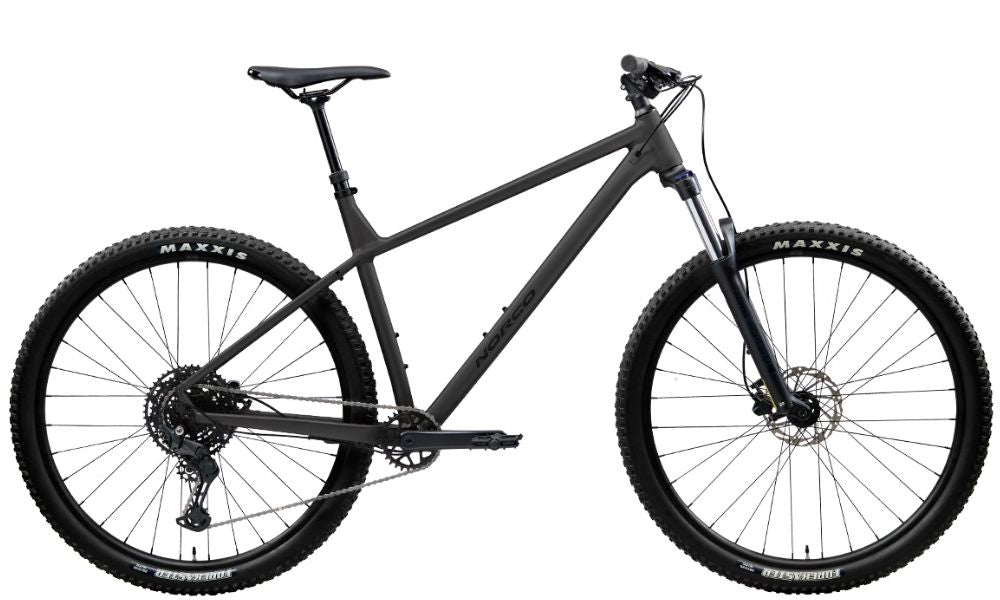

Norco 2025 Storm 120
The Storm 120 features a progressive off-road design and features that’ll help you discover your favourite way to ride.
Specifications
Norco 2025 Storm 120
Frame
Colour: Grey
Frame: Aluminum, Smooth Welding, Tapered HT
Fork: SR Suntour XCM32LO w/ lockout, 120mm, 46mm offset, 15x110mm Boost
Shock: NA
Drivetrain
Crankset: Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Chain: KMC Z10
Bottom Bracket: Cartridge, ST 73mm, 113mm axle length
Rear Derailleur: Shimano Cues RD-U6000, GS, 10sp
Front Derailleur: NA
Derailleur Shifter: Shimano Cues SL-U6000-10R, 10sp
Freewheel/Cassette: Shimano Cues CS-LG300-10, 11-48T, 10sp
Braking System
Brakes: Tektro HD-M275, Resin pads
Brake Levers: Tektro HD-M275
Wheels
Tyres: [F] Maxxis Ardent, 29x2.4" (27.5x2.4" for S), Wire [R] Maxxis Ardent Race, 29x2.2" (27.5x2.2" for S), Wire
Wheels/Rims: WTB STi25, 25mm ID, 32H, Tubless compatible
Hubs: [F] Formula DC51, 15x100mm Boost, 32h, 6-bolt [R] Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt
Other
Handlebar: 6061 Alloy DB, 750mm (S) / 780mm (M,L,XL,XXL) 30mm rise
Stem: Alloy 50mm Length, 31.8mm Clamp
Saddle: Norco XC, Steel Rail
Seat Post: X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M,L/XL/XXL)
Geometry
Norco 2025 Storm 120
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| Wheel Size | 27.5" | 29" | 29" | 29" | 29" | |
| Travel (mm front) |
120
|
|||||
| Reach | 410 | 440 | 470 | 500 | 530 | |
| Stack | 608 | 628 | 637 | 646 | 655 | |
| HTA | Head Tube Angle |
67
|
||||
| OS | Fork Offset | 42 |
46
|
|||
| ST | Seat Tube Length | 430 | 470 | 510 | 550 | 590 |
| STA | Effective Seat Tube Angle | 74.5 | 74.75 | 75 | 75.25 | 75.5 |
| RC | Rear Centre Length | 430 |
440
|
|||
| BB | Bottom Bracket Drop | 32 |
52
|
|||
| BBH | Bottom Bracket Height |
321
|
||||
| HTT | Horizontal Top Tube | 579 | 611 | 641 | 670 | 699 |
| WB | Wheelbase | 1129 | 1171 | 1205 | 1239 | 1273 |
| SOH | Standover | 646 | 671 | 718 | 738 | 769 |
| HT | Head Tube Length | 125 | 105 | 115 | 125 | 135 |
| Trail | 104 |
108
|
||||
| Recommended Seatpost Drop |
100
|
|||||
| Maximum Post Insertion | 300 | 265 | 300 | 340 | 380 | |
| Stem Length |
50
|
|||||
| Crank Length |
170
|
175
|
||||
| Tire Size |
2.2" – 2.4"
|
|||||
| Water Bottle Compatible | 1 x 620 mL | 1 x 620mL and 1 x 750 mL |
2 x 750 mL
|
|||
