Norco 2025 Sight C2 MX
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

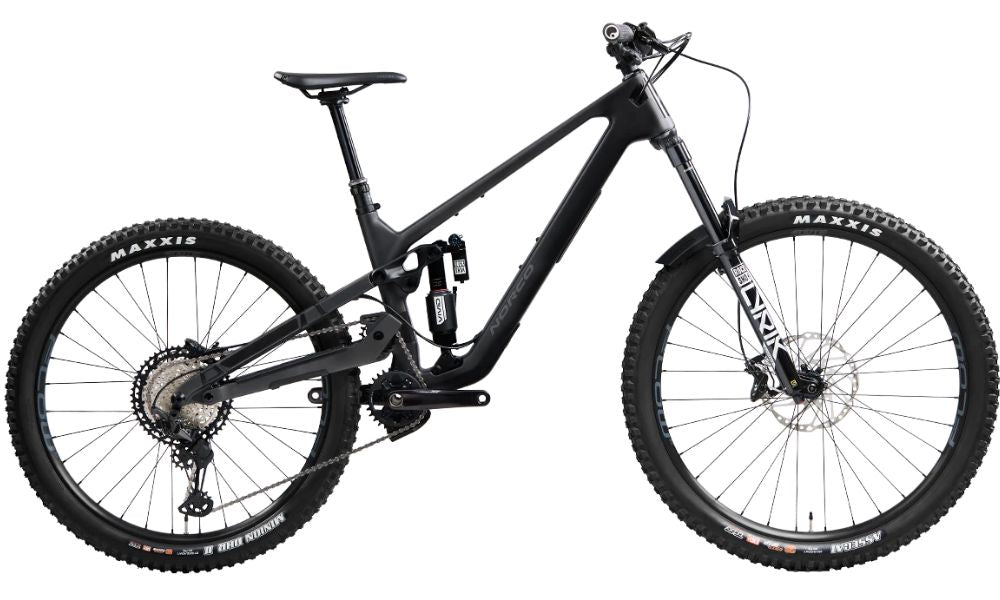

Norco 2025 Sight C2 MX
Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2025 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
Specifications
Norco 2025 Sight C2 MX
Frame
Colour: Black
Frame: Carbon Frame, 150mm Travel, UDH, High Pivot Horst Suspension, Eagle Transmission Compatible, Ride Aligned™
Fork: RockShox Lyrik Ultimate Charger 3.1, 160mm Travel, 44mm offset, Fender Included
Shock: RockShox Vivid 2 Ultimate Air, 205x60mm TR
Drivetrain
Crankset: Shimano Deore XT M8120, 32T, 55CL, 165mm (S1,S2) -170mm (S3,S4,S5)
Bottom Bracket: Shimano Sealed Bearing, BSA 73mm
Rear Derailleur: Shimano XT M8100, 12sp
Front Derailleur: NA
Derailleur Shifter: Shimano XT M8100, I-Spec, 12sp
Freewheel/Cassette: Shimano Deore XT M8200, 10-51T, 12sp
Braking System
Brakes: Shimano Deore MT520 4-P, Metallic pads
Brake Levers: Shimano Deore MT520 4-P
Wheels
Tyres: [F] Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding [R] Maxxis Minion DHR II, 3C Maxx Terra EXO+, 27.5x2.4", Folding
Wheels/Rims: Stan’s Flow S2, 32H, F- 29", R-27,5", 30mm ID
Hubs: [F] Shimano SLX,15x110mm Boost, 32H, C-lock [R] Shimano FH-M7110 SLX, 12x148mm Boost, Micro Spline, 32H, C-lock
Other
Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise
Saddle: Ergon SM-10 Enduro
Seat Post: TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)
Geometry
Norco 2025 Sight C2 MX
| 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" | |
| Travel (mm front/mm rear) |
160/150
|
||||||||||
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
| Stack | 618 | 627 | 636 | 645 | 654 | 618 | 627 | 636 | 645 | 654 | |
| HTA | Head Tube Angle |
64.0
|
64
|
||||||||
| OS | Fork Offset |
44
|
|||||||||
| ST | Seat Tube Length | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 385 | 430 | 445 |
| STA | Effective Seat Tube Angle | 77.00 | 77.25 | 77.50 | 77.75 | 78.00 | 77 | 77.25 | 77.5 | 77.75 | 78 |
| RC | Rear Centre Length | 420 | 424 | 428 | 432 | 436 | 426 | 430 | 434 | 438 | 442 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) |
25/4
|
25/25
|
||||||||
| BBH | Bottom Bracket Height |
353
|
|||||||||
| HTT | Horizontal Top Tube | 565 | 589 | 613 | 637 | 661 | 565 | 589 | 613 | 637 | 661 |
| WB | Wheelbase | 1181 | 1214 | 1247 | 1281 | 1314 | 1186 | 1219 | 1253 | 1286 | 1319 |
| SOH | Standover | 673 | 679 | 685 | 708 | 720 | 673 | 679 | 685 | 708 | 720 |
| HT | Head Tube Length | 105 | 115 | 125 | 135 | 145 | 105 | 115 | 125 | 135 | 145 |
| Trail |
135
|
||||||||||
| Recommended Seatpost Drop | 150 | 170 |
200
|
230 | 150 | 170 |
200
|
230 | |||
| Maximum Post Insertion | 250 | 270 |
300
|
330 | 250 | 270 |
300
|
330 | |||
| Stem Length |
40
|
||||||||||
| Crank Length |
170
|
||||||||||
| Tire Size |
2.35" – 2.6"
|
||||||||||
| Water Bottle Compatible |
1 x 750 mL
|
||||||||||
