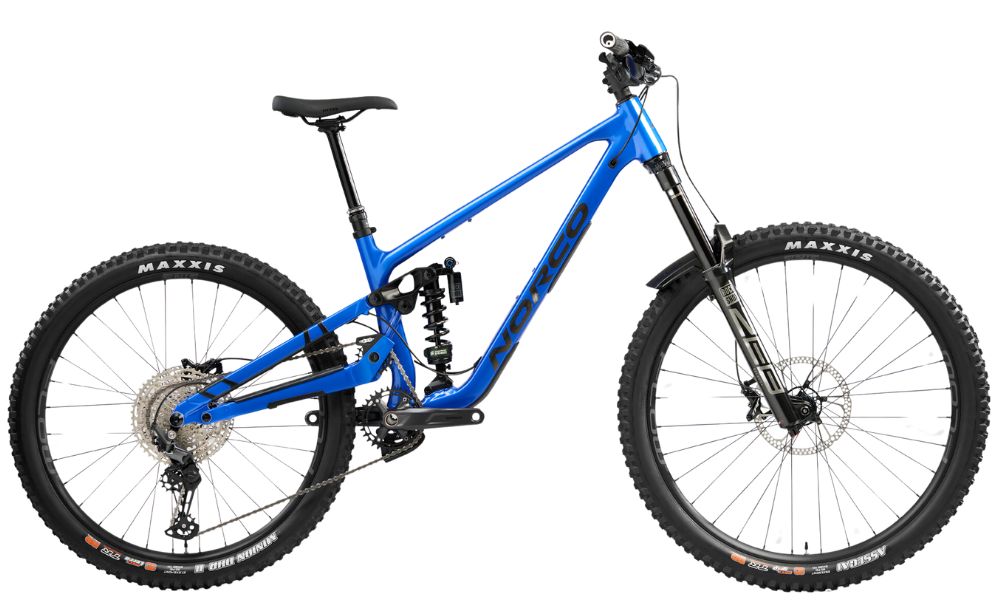

Norco 2025 Sight A2 160 MX
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Norco 2025 Sight A2 160 MX
The Sight 160 is next level - big travel, big spec, and ready for big mountain riding. Whether you're out racing an enduro or love going fast on technical trails, this is your bike to blow through the chunder. Inspired by the gnarliest trails in the backwoods of BC, built for riders living in areas where the terrain demands more out of the bike they ride.
An all-round beefier build to handle everything you throw down. We've stepped up on spec to help you handle more; a 35mm rise bar, big name brakes with metallic pads, Double Down rear tire casing, and coil rear shock with Sprindex spring to ride hard.
- 170mm/160mm travel for BC-inspired trails.
- Downhill oriented geometry, with efficient pedaling.
- Burly, high-quality components that can handle it all.
- Balanced weight distribution for top-of-class ride feel across sizes.
- VPSHP Suspension Platform.
- Built to accommodate rider preference in wheel size.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
Specifications
Norco 2025 Sight A2 160 MX
Frame
Colour: Blue Point
Frame: Sight Aluminum, High Pivot VPS Suspension, 160mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Fork: Fox FLOAT 36 Rhythm, Sweep Adjust, 160mm, 44mm Offset
Shock: Fox FLOAT X Performance, LSC/LSR, 205x60mm Trunnion
Drivetrain
Crankset: Shimano SLX FC-M71002, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
Pedals: Chain: Shimano Deore CN-M6100, 12sp
Bottom Bracket: Shimano Sealed Bearing, BSA 73mm
Rear Derailleur: Shimano SLX RD-M7100, 12sp
Front Derailleur:
Derailleur Shifter: Shimano SLX SL-M7100-R, 12sp
Freewheel/Cassette: Shimano SLX CS-M7100-12, 10-51T, 12sp
Braking System
Brakes: [F] Shimano Deore MT520 4 Piston, Metallic Pads, Shimano RT-64, 200mm rotor, C-Lock [R] Shimano Deore MT520 4 Piston, Metallic Pads, Shimano RT-64, 180mm rotor, C-Lock
Brake Levers:
Wheels
Tyres: [F] Maxxis Minion DHF, 3C MaxxTerra EXO+ TR, 29x2.5", Folding [R] Maxxis Minion DHR II 3C MaxxTerra EXO+ TR, 27.5x2.4", Folding
Wheels/Rims: Stan's Flow D, 32H, F/R- 29", 29mm ID
Hubs: [F] Shimano SLX HB-M7110-B, 15x110mm Boost, 32H, C-lock [R] Shimano SLX FH-M7110, 12x148mm Boost, Micro Spline, 32H, C-lock
Other
Handlebar: 6061 Alloy, 800mm, 25mm Rise
Stem: 6061 Alloy, 40mm Length, 35mm Clamp
Saddle: SDG Bel Air V3
Seat Post: TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
VPSHP Suspension Platform. Built to accommodate rider preference in wheel size. Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes. No Other Way Limited Lifetime Warranty.
Geometry
Norco 2025 Sight A2 160 MX
| 5 | 4 | 3 | 2 | 1 | 5 | 4 | 3 | 2 | 1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | |
| Travel (mm front/mm rear) |
170/160
|
||||||||||
| Reach | 516 | 491 | 466 | 441 | 416 | 516 | 491 | 466 | 441 | 416 | |
| Stack | 659 | 650 | 640 | 631 | 622 | 659 | 650 | 640 | 631 | 622 | |
| HTA | Head Tube Angle |
63.5
|
|||||||||
| OS | Fork Offset |
44
|
|||||||||
| ST | Seat Tube Length | 445 | 430 | 385 | 370 | 350 | 445 | 430 | 385 | 370 | 350 |
| STA | Effective Seat Tube Angle | 77.50 | 77.25 | 77.00 | 76.50 | 76.25 | 77.50 | 77.25 | 77.00 | 76.50 | 76.25 |
| RC | Rear Centre Length | 442 | 438 | 434 | 430 | 426 | 436 | 432 | 428 | 424 | 420 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) |
20.5/20.5
|
20.5/0
|
||||||||
| BBH | Bottom Bracket Height |
353
|
|||||||||
| HTT | Horizontal Top Tube | 663 | 639 | 615 | 591 | 567 | 663 | 639 | 615 | 591 | 567 |
| WB | Wheelbase | 1326 | 1292 | 1259 | 1225 | 1192 | 1320 | 1287 | 1253 | 1220 | 1187 |
| SOH | Standover | 725 | 715 | 694 | 685 | 671 | 725 | 715 | 694 | 685 | 671 |
| HT | Head Tube Length | 145 | 135 | 125 | 115 | 105 | 145 | 135 | 125 | 115 | 105 |
| Trail |
140
|
||||||||||
| Recommended Seatpost Drop | 230 |
200
|
170 | 150 | 230 |
200
|
170 | 150 | |||
| Maximum Post Insertion | 330 |
300
|
270 | 250 | 330 |
300
|
270 | 250 | |||
| Stem Length |
40
|
||||||||||
| Crank Length |
170
|
||||||||||
| Tire Size |
2.35" – 2.6"
|
||||||||||
| Water Bottle Compatible |
1 x 750 mL
|
||||||||||
