Norco 2025 Search C GRX

(0)
$4,999.00
Only 3 left
Low inventory - Hurry up!
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

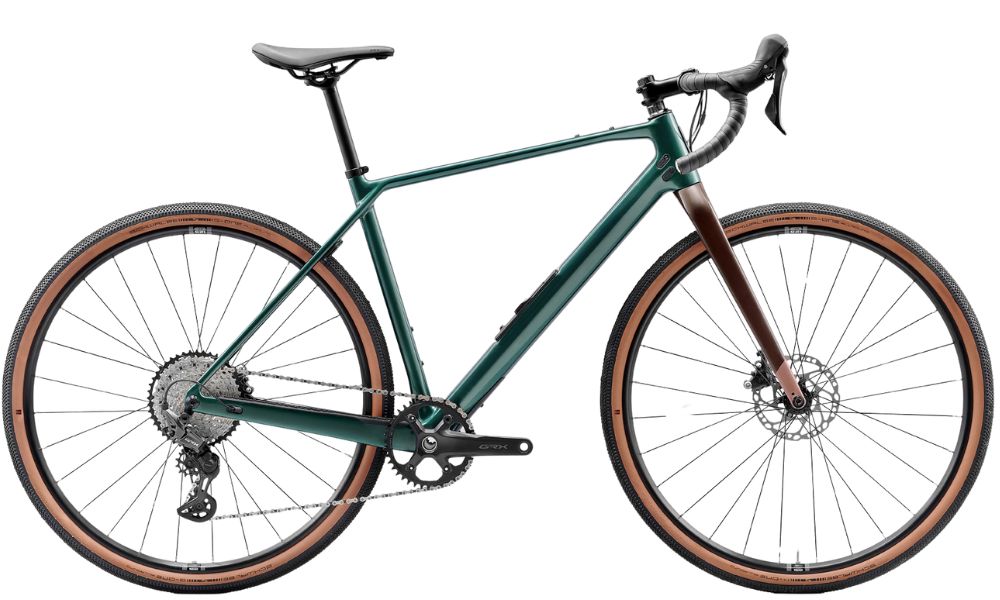

Norco 2025 Search C GRX

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search C GRX is ready for your next gravel adventure with modern gravel geo, a lightweight full carbon frame featuring Norco's proprietary downtube storage, tire clearance up to 50c, and full-coverage fender and toptube bag mounts.

A progressive, modern gravel bike.

Search C GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and the new geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

  • Progressive and confidence-inspiring.
  • Easy-Access Downtube Storage
  • A lightweight frame with options.
  • Updated features for easy wrenching.
  • More traction, when you want it.
  • Versatile mount options.
  • No Other Way Limited Lifetime Warranty.
Specifications

Norco 2025 Search C GRX

Frame

Size: S2, S3, S4
Colour: Green
Frame: Search Carbon w/ DT Storage, UDH Compatible
Fork: Search Carbon, 51mm Offset, 12x100mm TA
Shock:

Drivetrain

Crankset: Shimano GRX FC-RX610 40T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5)
Pedals:
Chain: KMC X12
Bottom Bracket: Shimano BSA 68mm
Rear Derailleur: Shimano GRX RD-RX822, 10-45T, 12sp, GS
Front Derailleur:
Derailleur Shifter: Shimano GRX ST610, 12sp
Freewheel/Cassette: Shimano CS-M7100, 10-45T, 12sp

Braking System

Brakes: Shimano BR-RX400, Resin w/o Fin
Brake Levers:

Wheels

Tyres: Schwalbe G-One All Round, Race Guard, 700x45c
Wheels/Rims: WTB ST i25 2.0, 28h, 25mm ID
Hubs: [F] Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock [R] Shimano FH-TC500 Sealed Bearing, 12x142mm, Micro Spline, 28H, C-lock

Other

Handlebar: Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
Stem: Norco SL Alloy 70mm Length, 31.8mm Clam
Seat Post: Norco Alloy, 27.2mm, 0Deg Offset, 350mm length
Saddle: Selle Royale SRX Gravel, 148mm

Geometry

Norco 2025 Search C GRX

Search Carbon
1 2 3 4 5
Wheel Size 700c 700c 700c 700c 700c
Reach 385 400 415 430 445
Stack 554 564 587 611 634
HTA Head Tube Angle
69.5
OS Fork Offset
51
ST Seat Tube Length 440 475 510 545 580
STA Effective Seat Tube Angle 74.5 74.25 74 73.75 73.5
RC Rear Centre Length
425
 427.5
430
BB Bottom Bracket Drop
75
BBH Bottom Bracket Height
285
HTT Horizontal Top Tube 539 559 583 608 633
WB Wheelbase 1037 1056 1082 1108 1132
SOH Standover 691 725 758 791 824
HT Head Tube Length 100 110 135 160 185
Trail
80
Maximum Post Insertion 210 240
290
Stem Length
70
Crank Length 165
170
172.5
Tire Size
40c — 50c
Water Bottle Compatible
3 x 750 mL
