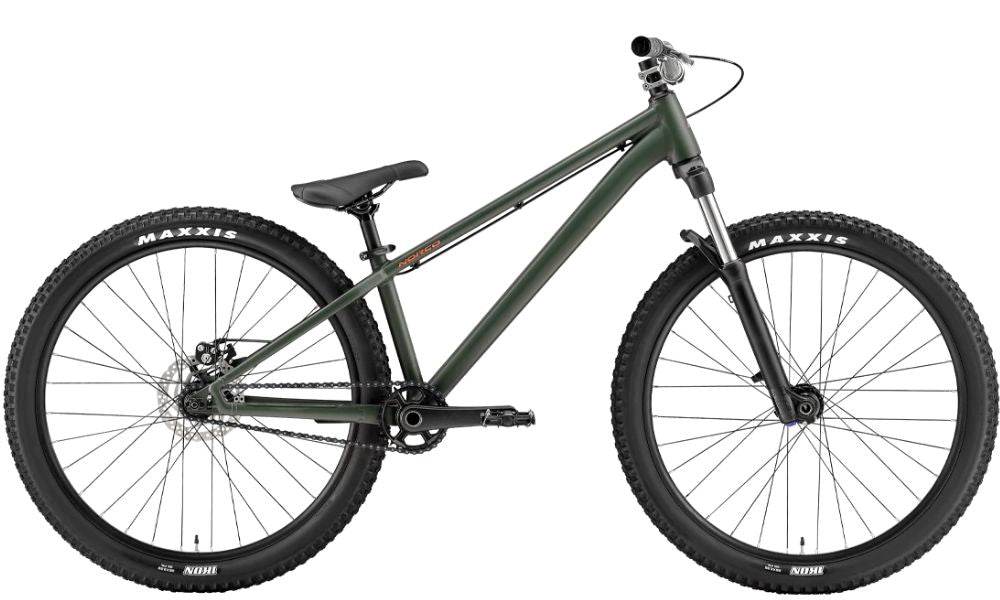

Norco 2025 Rampage 1
The Rampage 1 is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for finding your flow.
Specifications
Norco 2025 Rampage 1
Frame
Colour: Sage Slate
Frame: Aluminum DJ 26"
Fork: Manitou Circus Comp, 100mm, 20x110mm
Shock: NA
Drivetrain
Crankset: Prowheel Forged 2pc, 30T, 165mm
Chain: KMC Z1, 1/2 x 3/32"
Bottom Bracket: Sealed Cartridge, ISIS 73mm
Rear Derailleur: NA
Front Derailleur: NA
Derailleur Shifter: NA
Freewheel/Cassette: Single speed, 14T
Braking System
Brakes: [F] Tektro MD-280, Mechanical, Resin pads [R] Shimano Sora BR-R317 mechanical caliper
Brake Levers: Title Gyro brake lever
Wheels
Tyres: [F] and [R] Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
Wheels/Rims: Alex DP 25, 32h, F/R-26"
Hubs: [F] KT sealed bearing, 20x110mm, 32H, 6 bolt [R] KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt
Other
Handlebar: Title AH1, 800mm, 38mm rise
Stem: Norco, 40mm Length, 31.8 Clamp
Saddle: Norco Pivotal
Seat Post: Kue Q pivotal stealth, 27.2mm ID, 200mm Length
Geometry
Norco 2025 Rampage 1
| Short | Medium | Long | ||
|---|---|---|---|---|
| Wheel Size | 26" | 26" | 26" | |
| Travel (mm front) |
100
|
|||
| Reach | 405 | 435 | 465 | |
| Stack | 554 | 564 | 573 | |
| HTA | Head Tube Angle |
68.5
|
||
| OS | Fork Offset |
40
|
||
| ST | Seat Tube Length |
300
|
||
| STA | Effective Seat Tube Angle |
75
|
||
| RC | Rear Centre Length |
379
|
||
| BB | Bottom Bracket Drop |
20
|
||
| BBH | Bottom Bracket Height |
328
|
||
| HTT | Horizontal Top Tube | 554 | 586 | 619 |
| WB | Wheelbase | 1037 | 1071 | 1104 |
| SOH | Standover |
599
|
||
| HT | Head Tube Length | 105 | 115 | 125 |
| Trail |
94
|
|||
| Maximum Post Insertion |
245
|
|||
| Stem Length |
35
|
|||
| Crank Length |
165
|
|||
| Tire Size |
2.35" – 2.5"
|
|||
