Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Norco 2025 Fluid FS A3
The Norco Fluid FS A3 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.
Get everything out of the trail that you put into it.
The Fluid FS A3's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.
Specifications
Norco 2025 Fluid FS A3
Frame

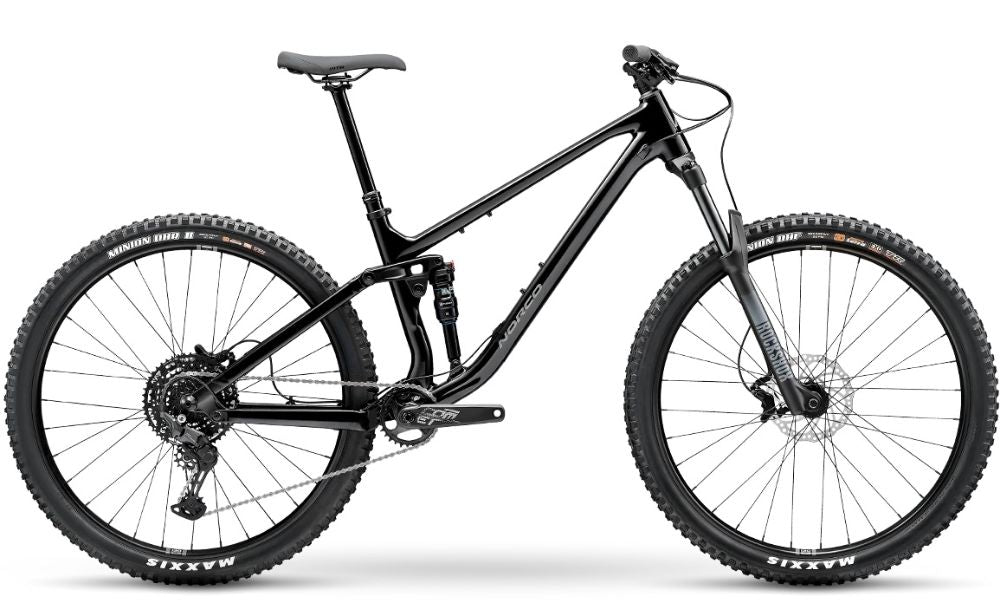

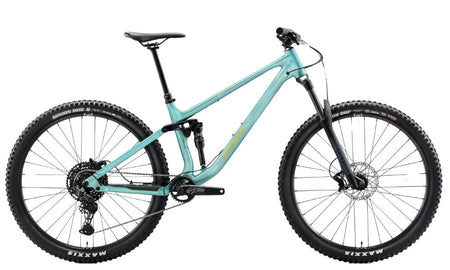

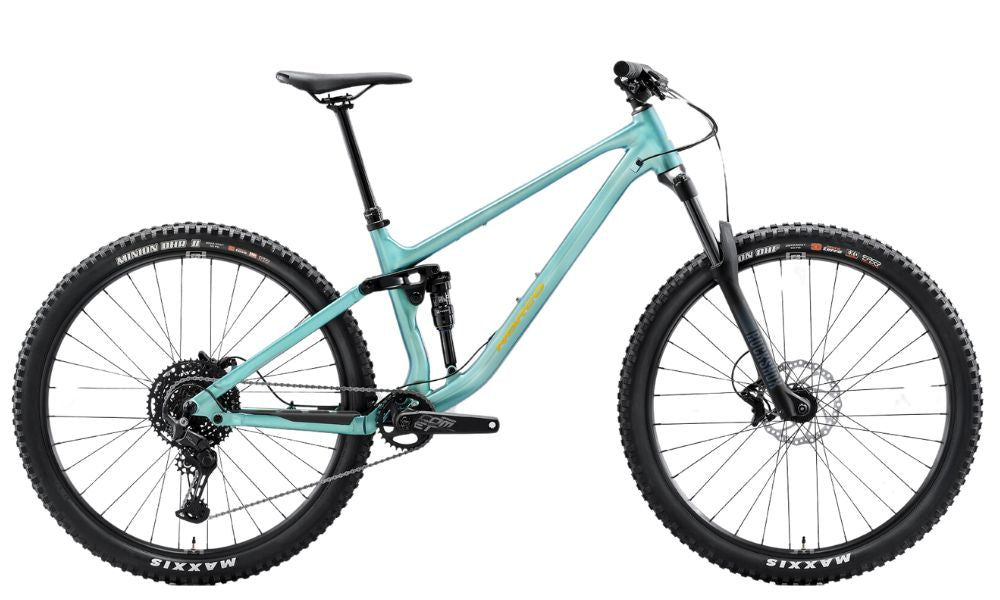

Colour: Canadian Mint or Black Tusk
Frame: 6061 Aluminum Frame, 130mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork: RockShox Recon RL, 140mm, 44mm offset
Shock: X-Fusion 02 Pro R AV, 210x50mm standard
Drivetrain
Crankset: Shimano Cues FC-U6000, 30T, CL52, 170mm (S), 175mm (M-XXL)
Pedals: Chain: Shimano LG-500, 10sp
Bottom Bracket: Shimano BB-MT501, 73mm BSA
Rear Derailleur: Shimano CUES SL-U6000, 10sp
Front Derailleur:
Derailleur Shifter: Shimano CUES SL-U6000, 10sp
Freewheel/Cassette: Shimano CUES LG-400, 11-48T, 10sp
Braking System
Brakes: [F] Tektro HD-M535, 4 Piston, Resin pads, TRP TR180, 180mm, 2.3mm Thickness, 6 bolt [R] Tektro HD-M535, 4 Piston, Resin pads, TRP TR180, 180mm, 2.3mm Thickness, 6 bolt
Brake Levers: Tektro HD-M535
Wheels
Tyres: [F] Continental Kryptotal-F, Trail, Endurance, 29" x 2.4", Folding [R] Continental Xynotal, Trail, Endurance,29" x 2.4", Folding
Wheels/Rims: WTB ST, 32H, F/R-29", 30mm ID
Hubs: [F] Formula DC-511, 15x110mm, 32H, 6 bolt [R] Formula DC-3248, 12x148, HG, 32H, 6 bolt
Other
Handlebar: Norco 6061 DB Alloy, 800mm, 25mm rise
Stem: Norco 6061 Alloy 40mm length, 35mm clamp
Saddle: Norco Trail
Seat Post: TranzX YSI34 Dropper, 34.9mm, 150mm (S) - 170mm (M) - 200mm (L, XL, XXL)
- Intuitive precision handling.
- Top-tier design and features over-deliver as skills evolve.
- Sophisticated suspension components for full-platform performance and tunability.
- Long-travel droppers and generous standover get you through the rough stuff.
- Refined design and expanded size range.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
Geometry
Norco 2025 Fluid FS A3
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" | |
| Travel (mm front/mm rear) |
140/130
|
|||||
| Reach | 420 | 450 | 480 | 510 | 540 | |
| Stack | 617 | 626 | 635 | 644 | 653 | |
| HTA | Head Tube Angle |
65
|
||||
| OS | Fork Offset |
44
|
||||
| ST | Seat Tube Length | 360 | 390 | 410 | 460 | 510 |
| STA | Effective Seat Tube Angle | 76 | 76.3 | 76.7 | 77 | 77.3 |
| RC | Rear Centre Length | 425 | 430 | 435 | 440 | 445 |
| BB | Bottom Bracket Drop |
30
|
||||
| BBH | Bottom Bracket Height |
348
|
||||
| HTT | Horizontal Top Tube | 574 | 602 | 630 | 659 | 687 |
| WB | Wheelbase | 1166 | 1205 | 1245 | 1284 | 1323 |
| SOH | Standover | 678 | 690 | 699 | 736 | 767 |
| HT | Head Tube Length | 110 | 120 | 130 | 140 | 150 |
| Trail |
128
|
|||||
| Recommended Seatpost Drop | 150 | 170 |
200
|
|||
| Maximum Post Insertion | 250 | 270 |
300
|
|||
| Stem Length |
40
|
|||||
| Crank Length |
175
|
|||||
| Tire Size |
2.4" – 2.6"
|
|||||
| Water Bottle Compatible |
1 x 750 mL
|
1 x 750 mL and 1 x 620 mL | ||||
