Norco 2025 Fluid FS A1 29
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

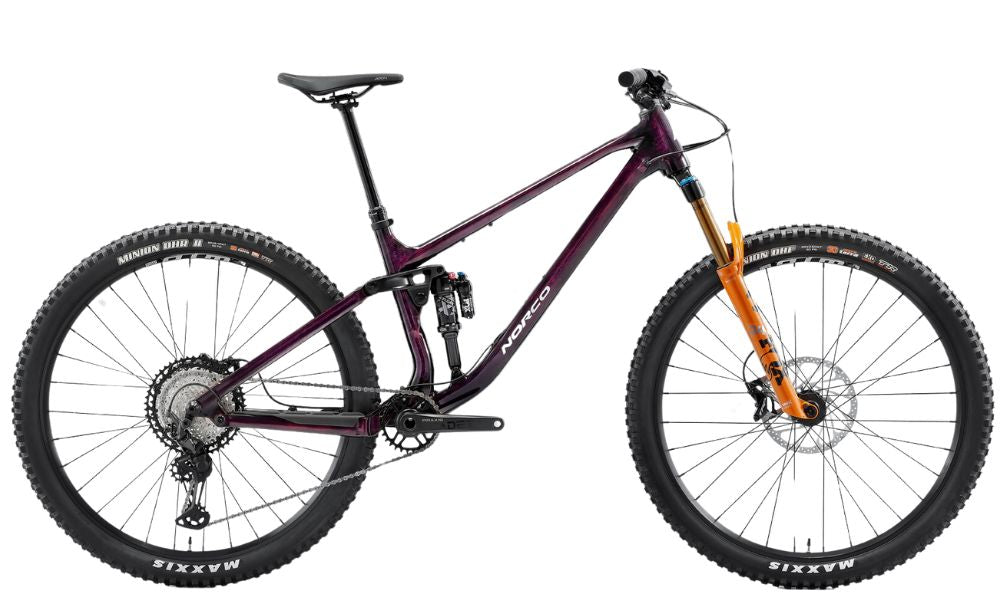

Norco 2025 Fluid FS A1 29
The Norco Fluid FS A1 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.
Get everything out of the trail that you put into it.
The Fluid FS A1's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.
Specifications
Norco 2025 Fluid FS A1
Frame
Colour: Purple
Frame: 6061 Aluminum, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Fork: Fox 34 Factory GRIP2, 140mm Travel, 44mm Offset
Shock: Fox FLOAT X Performance Elite, 2-pos, 210x50mm, Custom Tune
Drivetrain
Crankset: Praxis G2 Cadet M24, 30T, 170mm (S), 175mm (M - XXL)
Pedals: Chain: Shimano XT M8100, 12sp
Bottom Bracket: Praxis M24, BSA Threaded
Rear Derailleur: Shimano XT M8100, 12sp
Front Derailleur:
Derailleur Shifter: Shimano XT M8100, I-Spec EV, 12sp
Freewheel/Cassette: Shimano XT CS-M8100, 10-51T, 12sp
Braking System
Brakes: [F] TRP Trail EVO, 4 Piston, Organic Pads, TRP TR203-29 203mm [R] TRP Trail EVO, 4 Piston, Organic Pads, TRP TR180-29 180mm
Brake Levers: TRP Trail EVO
Wheels
Tyres: [F] Continental Kryptotal-F, Trail, Endurance, 29" x 2.4", Folding [R] Continental Xynotal, Trail, Endurance,29" x 2.4", Folding
Wheels/Rims: WTB ST Light, 32H, F/R-29", 30mm ID
Hubs: [F] Bear Pawls BMB-013, 15x110mm Boost, 32H, 6 Bolt [R] Bear Pawls BMB-004, 148x12mm Boost, Micro Spline, 32H, 6 Bolt
Other
Handlebar: 6061 Butted Alloy, 800mm, 25mm Rise
Stem: 6061 Alloy, 40mm Length, 35mm Clamp
Saddle: SDG Bel Air V3 Lux Alloy
Seat Post: TranzX YSI34 Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL, XXL)
- Intuitive precision handling.
- Top-tier design and features over-deliver as skills evolve.
- Sophisticated suspension components for full-platform performance and tunability.
- Long-travel droppers and generous standover get you through the rough stuff.
- Refined design and expanded size range.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
Geometry
Norco 2025 Fluid FS A1
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" | 29" | |
| Travel (mm front/mm rear) |
140/130
|
|||||
| Reach | 420 | 450 | 480 | 510 | 540 | |
| Stack | 617 | 626 | 635 | 644 | 653 | |
| HTA | Head Tube Angle |
65
|
||||
| OS | Fork Offset |
44
|
||||
| ST | Seat Tube Length | 360 | 390 | 410 | 460 | 510 |
| STA | Effective Seat Tube Angle | 76 | 76.3 | 76.7 | 77 | 77.3 |
| RC | Rear Centre Length | 425 | 430 | 435 | 440 | 445 |
| BB | Bottom Bracket Drop |
30
|
||||
| BBH | Bottom Bracket Height |
348
|
||||
| HTT | Horizontal Top Tube | 574 | 602 | 630 | 659 | 687 |
| WB | Wheelbase | 1166 | 1205 | 1245 | 1284 | 1323 |
| SOH | Standover | 678 | 690 | 699 | 736 | 767 |
| HT | Head Tube Length | 110 | 120 | 130 | 140 | 150 |
| Trail |
128
|
|||||
| Recommended Seatpost Drop | 150 | 170 |
200
|
|||
| Maximum Post Insertion | 250 | 270 |
300
|
|||
| Stem Length |
40
|
|||||
| Crank Length |
175
|
|||||
| Tire Size |
2.4" – 2.6"
|
|||||
| Water Bottle Compatible |
1 x 750 mL
|
1 x 750 mL and 1 x 620 mL | ||||
