Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

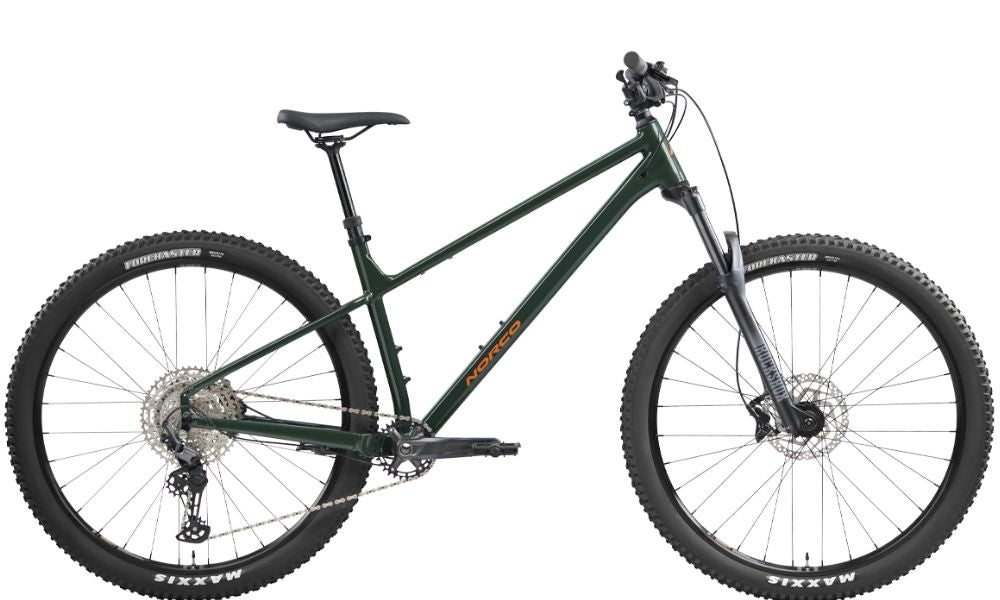

Norco 2025 Charger A1
Charger 1 is a durable, modern hardtail trail bike with progressive geometry, stable handling, and premium frame features.
Specifications
Norco 2025 Charger A1
Frame
Colour: Sage Slate
Frame: Aluminum, Smooth Welding, 12x148mm Boost, Tapered HT
Fork: Rockshox Judy Silver TK Air, 130mm, 51mm offset, 15x110mm Boost
Shock: NA
Drivetrain
Crankset: Shimano Deore FC-MT512 2 pc, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket: Shimano BB-MT501, BSA 68/73mm, CL55
Rear Derailleur: Shimano Deore RD-M6100, SGS, 12sp
Front Derailleur: NA
Derailleur Shifter: Shimano Deore SL-M6100-R, 12sp
Freewheel/Cassette: Shimano Deore CS-M6100, 10-51T, 12sp
Braking System
Brakes: Shimano Deore BD-MT410, Resin pads
Brake Levers: Shimano Deore BD-MT410
Wheels
Tyres: [F] and [R] Maxxis Forekaster, 29x2.35" (27x2.35" for S), Wire
Wheels/Rims: WTB ST TCS 2.0, 27mm ID, 32H
Hubs: [F] Formula DC-511, 15x110mm, 32h, C-lock [R] Formula DC-3248,12x148mm Boost, HG, 32h, C-lock
Other
Handlebar: Norco Aluminum, 780mm, 30mm Rise
Stem: Alloy 40mm Length, 31.8mm Clamp
Saddle: WTB Volt Sport, Med
Seat Post: X-Fusion Manic LC, 31.6mm, 130mm (S), 150mm (M), 170mm (L/XL/XXL)
Geometry
Norco 2025 Charger A1
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| Wheel Size | 27.5" | 29" | 29" | 29" | 29" | |
| Travel (mm front) |
130
|
|||||
| Reach | 420 | 450 | 480 | 510 | 540 | |
| Stack | 617 | 633 | 642 | 651 | 661 | |
| HTA | Head Tube Angle |
65
|
||||
| OS | Fork Offset | 42 |
51
|
|||
| ST | Seat Tube Length | 370 | 400 | 430 | 480 | 530 |
| STA | Effective Seat Tube Angle | 75 | 75.25 | 75.5 | 75.75 | 76 |
| RC | Rear Centre Length | 425 |
430
|
435
|
||
| BB | Bottom Bracket Drop | 34 |
54
|
|||
| BBH | Bottom Bracket Height |
324
|
||||
| HTT | Horizontal Top Tube | 585 | 617 | 646 | 675 | 705 |
| WB | Wheelbase | 1162 | 1203 | 1237 | 1277 | 1311 |
| SOH | Standover | 616 |
667
|
709 | 744 | |
| HT | Head Tube Length | 140 | 120 | 130 | 140 | 150 |
| Trail |
121
|
|||||
| Recommended Seatpost Drop | 130 | 150 |
170
|
|||
| Maximum Post Insertion | 265 | 300 | 325 | 375 | 425 | |
| Stem Length |
40
|
|||||
| Crank Length |
170
|
175
|
||||
| Tire Size |
2.2" – 2.4"
|
|||||
| Water Bottle Compatible | 1 x 620 mL | 1 x 620mL and 1 x 750 mL | ||||
