Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

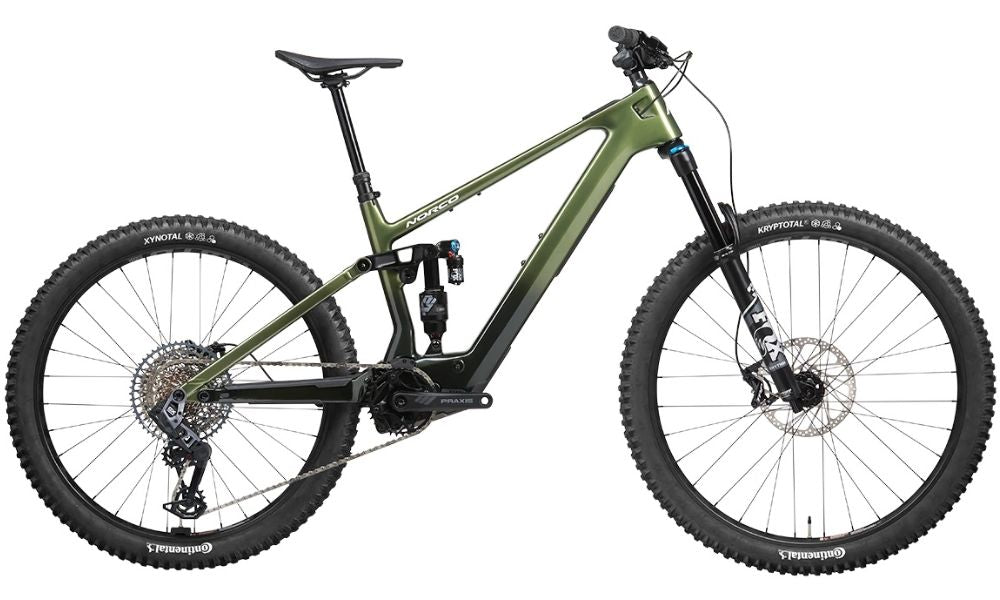

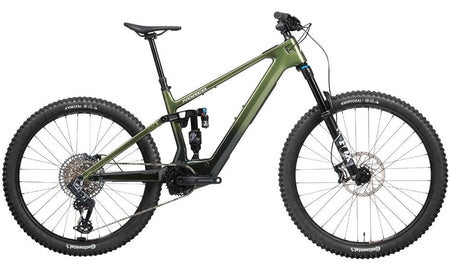

Norco 2025 Fluid VLT C2
Get more rides in and make the most of every minute of the lightweight Fluid VLT C2 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
Specifications
Norco 2025 Fluid VLT C2
Frame

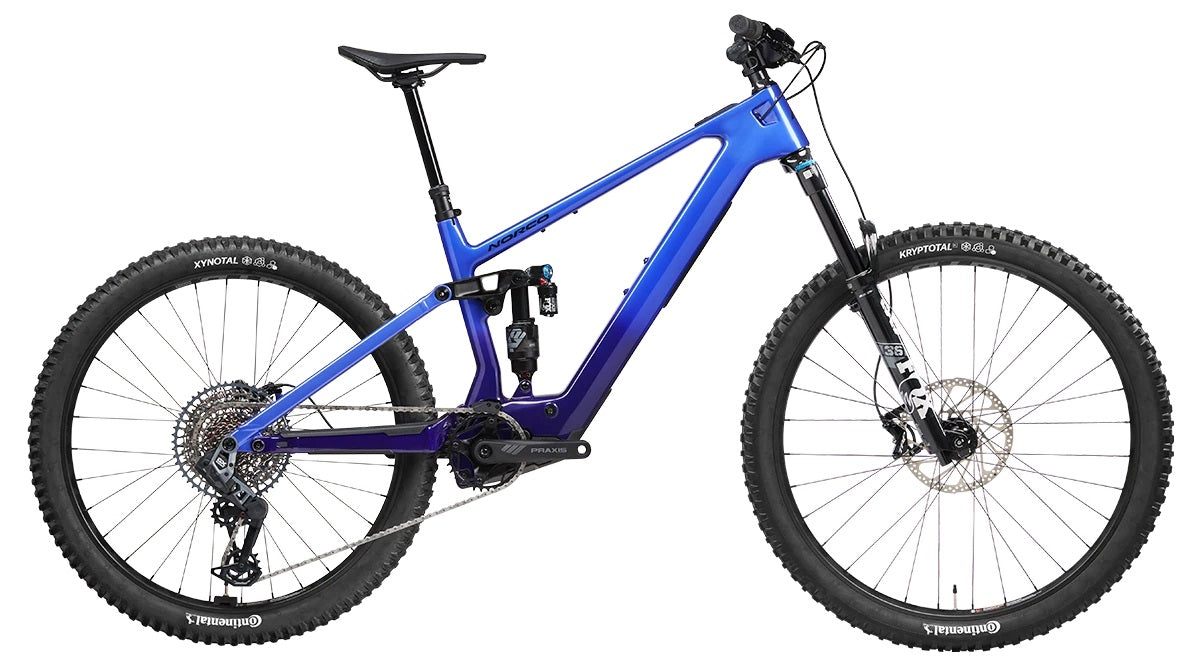

Colour: Green or Purple/Blue
Frame: Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Fork: Fox 36 Performance Elite, 29”, 150 mm Travel
Shock: Fox FLOAT X2 Performance Elite, 185x55mm Trunnion
Drivetrain
Crankset: Praxis Alloy HD eMTB, 165mm
Pedals:
Chain: SRAM GX Eagle T-Type
Bottom Bracket:
Rear Derailleur: SRAM GX Eagle AXS T-Type
Front Derailleur: NA
Derailleur Shifter: SRAM Pod Ultimate Controller
Freewheel/Cassette: SRAM 1275 T-Type 10-52T
Braking System
Brakes: TRP Trail Evo, 4 Piston [F] TRP TR203, 203mm, 2.3mm Thick [R] TRP TR180, 180mm, 2.3mm Thick
Brake Levers: TRP Trail Evo
Wheels
Tyres: [F] Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding [R] Maxxis Minion DHRII, 3C Max Terra EXO+, 27.5x2.4", Folding
Wheels/Rims: WTB KOM Trail 32H, 27.5" Rear, 29" Front, 30mm ID
Hubs: [F] Bear Pawls, 110x15mm Boost, 6-Bolt [R] Bear Pawls, Impel 24T, 3-Bearing Steel Driver Body, 148x12mm Boost, 6-Bolt, XD
Other
Handlebar: 6061 DB Alloy, 800mm, 25mm Rise
Stem: Norco SL 6061 Alloy 40mm Length, 35mm Clamp
Saddle: Fizik Ridon
Seat Post: TranzX YSI08FL RAD+ Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
E-Bike
Drive Unit: Bosch Performance Line SX
Battery: Bosch CPT 400Wh
Geometry
Norco 2025 Fluid VLT C2
| Frame Size | 1 (Small) | 2 (Medium-Short) | 3 (Medium-Tall) | 4 (Large) | 5 (X-Large) |
| Rider Height (ft.) | 5'1"–5'5" | 5'4"–5'8" | 5'7"–5'-11" | 5'10"–6'2" | 6'1"–6'5" |
| Rider Height (cm) | 155.0–165.0 | 162.5–172.5 | 170.0–180.0 | 178.0–188.0 | 185.5–195.5 |
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (Front/Rear) | 150/140 | 150/140 | 150/140 | 150/140 | 150/140 |
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack | 610 | 619 | 628 | 637 | 646 |
| Head Tube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
| Seat Tube Length | 385 | 395 | 415 | 445 | 475 |
| Effective Seat Tube Angle | 76.50 | 76.75 | 77.00 | 77.25 | 77.50 |
| Rear Centre | 432 | 432 | 436 | 440 | 444 |
| Bottom Bracket Drop (Front/Rear) | 28/8 | 28/8 | 28/8 | 28/8 | 28/8 |
| Bottom Bracket Height | 350 | 350 | 350 | 350 | 350 |
| Horizontal Top Tube Length | 569 | 593 | 618 | 642 | 666 |
| Wheelbase | 1181 | 1210 | 1243 | 1277 | 1310 |
| Standover Height | 715 | 701 | 703 | 720 | 743 |
| Head Tube Length | 100 | 110 | 120 | 130 | 140 |
| Trail | 132 | 132 | 132 | 132 | 132 |
| Recommended Seatpost Drop | 125 | 150 | 170 | 200 | 200 |
| Maximum Post Insertion | 240 | 250 | 270 | 300 | 330 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Crank Length | 165 | 165 | 165 | 165 | 165 |
| Tire Size | 2.35"–2.6" | 2.35"–2.6" | 2.35"–2.6" | 2.35"–2.6" | 2.35"–2.6" |
| Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
