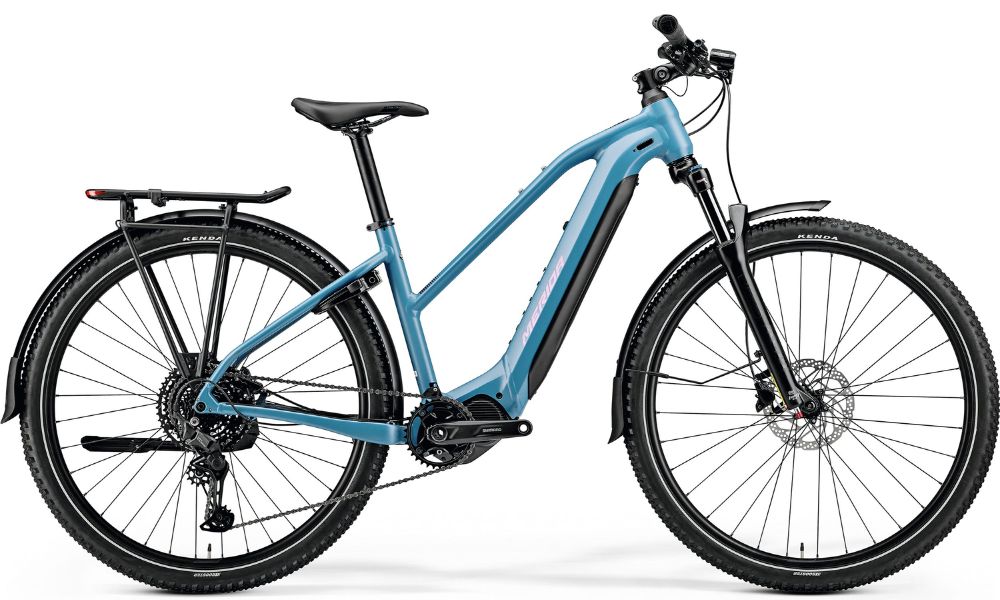

Merida 2026 eBIG TOUR 400 EQ

Merida 2026 eBIG TOUR 400 EQ

Everyday practicality of a low-step-through frame with city friendly equipment is paired with a rugged, go anywhere attitude and powerful Shimano motor.

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 400 EQ does just that, with the new Shimano EP6 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 630 Wh battery and generous standard fit equipment including mudguards and lighting have your everyday needs covered, so there's no need to compromise.

Are practicality and excitement mutually exclusive? We don't think so - and neither does the eBIG.TOUR. It's a reliable day-to-day companion for riding to work that's equally happy taking you on big adventures off the beaten track, thanks to a winning combination of mountain bike inspired geometry with low step-through frame practicality. A powerful and smooth Shimano pedal-assist motor is integrated cleanly into the aluminium frame, while a suspension fork and high-volume tyres provide comfort and safety. Add in standard fit mudguards, racks, lighting, wheel lock and a kickstand plus long-lasting 630 or 750 Wh batteries and you'll realise you've got the best of all worlds.

• Lightweight aluminium frame with integrated 630 Wh battery and low step-through frame design
• Latest powerful Shimano EP6 drive unit with 85 Nm torque
• SR Suntour suspension fork for improved comfort and control
• Standard fit mudguards, rack, lights, wheel lock and kickstand
• 29er wheels with high volume tyres can handle city or countryside terrain
• Smooth Shimano drivetrain and powerful disc brakes

Specifications

Merida 2026 eBIG TOUR 400 EQ

Frame

Size: S, M, L, XL
Colour: Silk Dive BLue(Blue)
Frame: eBIG.TOUR LITE IV, MAT aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. WHS, 148x12 AST, intube,
Fork: Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max WHS,
Shock:

Drivetrain

Crankset: Shimano CRE70-B, 34t
Pedals:
Chain: Shimano LG500,
Bottom Bracket:
Rear Derailleur: Shimano CUES U6000 GS
Front Derailleur:
Shifter: Shimano CUES U6000-10
Freewheel/Cassette: Shimano LG300, 11-48,10,

Braking System

Brakes: Shimano MT-200, 2 piston
Brake Levers:

Wheels

Tyres: KENDA Booster, 29x2.2", wire,
Wheels/Rims: MERIDA COMP CC II, 25 IWR, MAT aluminium,
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 36 SPH, Centerlock

Other

Handlebar: MERIDA EXPERT CC, MAT aluminium, 720 WHB, 10 RHB
Stem: MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable
Seat Post: MERIDA EXPERT CC, MAT aluminium, 34.9 DSP, 0 SSB
Saddle: MERIDA EXPERT TK, V-mount

E-Bike

Drive Unit: Shimano EP6, 85Nm
Battery: Shimano EN806, 630Wh
Controller:
Display: Shimano SC-EN500,
Charger:

Extras

Fenders:
Kickstand:
Lights: [F] LEZYNE E-BIKE HECTO STVZO E65, [R] Spanninga Commuter GLOW XE,
Carrier:
Frame Lock: Abus 4650SL LH-3 lock,

Geometry

Merida 2026 eBIG TOUR 400 EQ
