Merida Crossway 10-V

(0)
$749.00
Out of stock
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

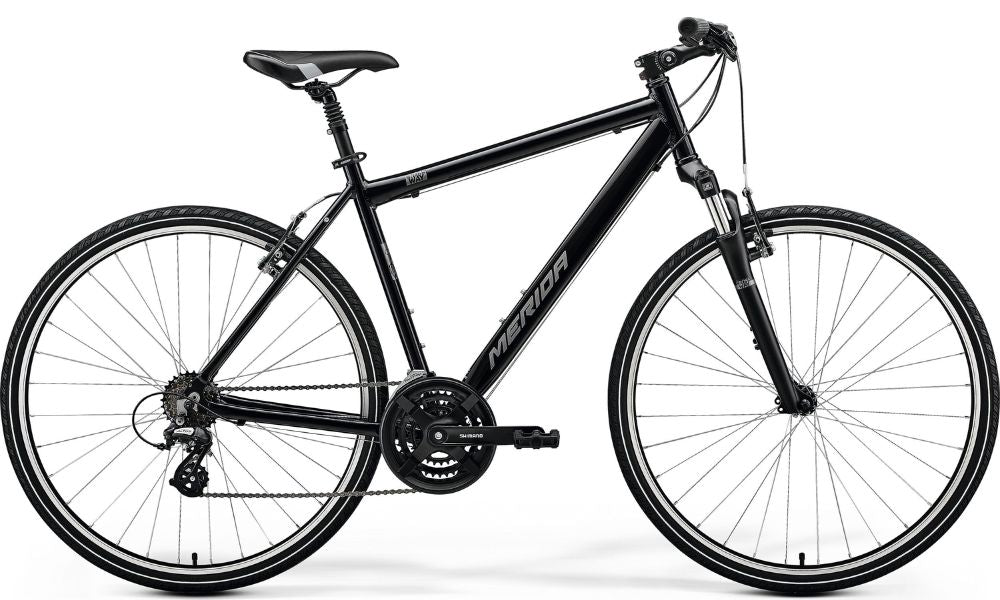

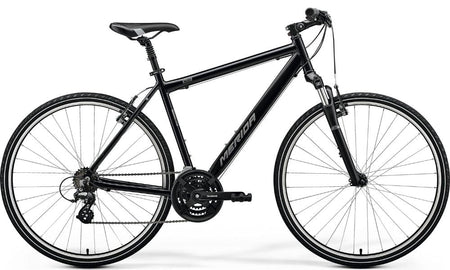

Merida Crossway 10-V

You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10-V comes with powerful and easy to service V-brakes, a broad gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork and seat post provide extra comfort and riding safety.

The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork and adjustable stems on selective models, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding.

Specifications

Merida Crossway 10-V

Frame

Colour: Black/Silver
Frame: CROSSWAY DT
Fork: SR Suntour NEX
Shock: NA

Drivetrain

Crankset: Shimano TY301
Pedals: Chain: SunRace CNM 84
Bottom Bracket: FSA TH-7420ST, 68-124
Rear Derailleur: Shimano RD-M310
Front Derailleur: Shimano FD-TY510-3
Derailleur Shifter: Shimano ST-EF500-L / Shimano ST-EF500-7R
Freewheel/Cassette: Shimano MF-TZ500

Braking System

Brakes: [F] and [R] Promax MTV-117A
Brake Levers:

Wheels

Tyres: [F] and [R] MERIDA K1171
Wheels/Rims: MERIDA CC
Hubs: [F] and [R] Joytech JY-751DSE / Joytech JY-752DSE

Other

Handlebar: MERIDA CC
Stem: MERIDA TK
Saddle: MERIDA Cross Sport
Seat Post: MERIDA TK

Geometry

Merida Crossway 10-V

Bike Frame Geometry Image

Frame Size XS S S/M M/L L XL XXL
Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
ST seat tube [mm] 440 460 480 520 550 580 610
TT top tube [mm] 565 575 585 595 605 620 635
CS chain stay length [mm] 450 450 450 450 450 450 450
HTA head tube angle [°] 71 71.5 71.5 72 72 72 72.5
STA seat tube angle [°] 74 73.5 73.5 73.5 73 73 72.5
BD bottom bracket drop [mm] 70 70 70 70 70 70 70
HT head tube [mm] 125 125 135 135 145 170 200
FL fork length [mm] 450 450 450 450 450 450 450
R reach [mm] 394 397 405 414 415 423 422
S stack [mm] 597 599 609 611 620 644 675
WB wheel base [mm] 1073 1072 1082 1087 1091 1107 1110
SH stand over height [mm] 711 727 743 774 798 825 852
