Merida 2026 Time Warp Tri Limited

(0)
$10,999.00
Only 1 left
Low inventory - Hurry up!
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

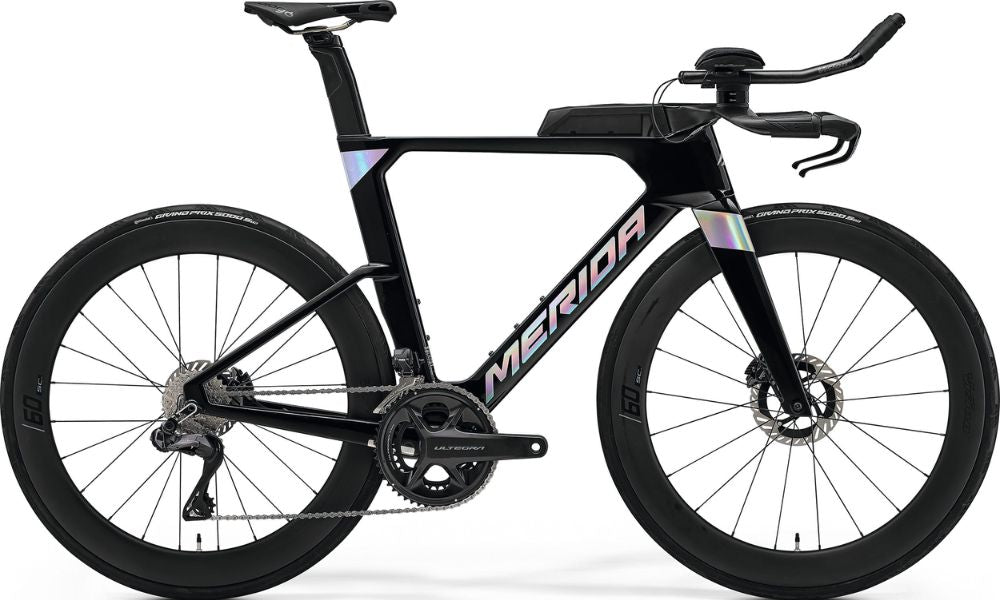

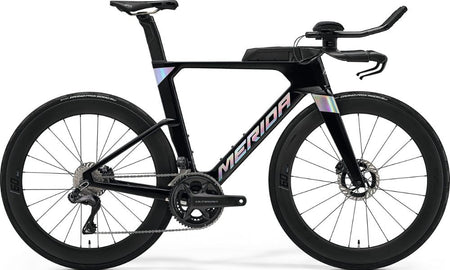

Merida 2026 Time Warp Tri Limited

Featuring a high-end CF5 weight-optimised carbon frame heavily inspired by the World Tour proven TIME WARP TT, the TIME WARP TRI LIMITED offers top aerodynamic performance at a more wallet-friendly price point.

Racing is in the DNA of our TIME WARP TRI series, and our TRI LIMITED model delivers for the triathlon newcomer as well as for the seasoned racer. Equipped with the super reliable 12-speed Ultegra Di2 drivetrain and ultra-precise Dura-Ace hydraulic disc brakes, the TIME WARP TRI LIMITED delivers on every level. The top-level frame offers outstanding wind-slicing capabilities, while the adjustable armrests allow for a perfect riding position on any course as well as provide outstanding control on even the most demanding of sections. If triathlon is your sport, make the TIME WARP TRI LIMITED your bike.

Inspired by our World Tour proven TIME WARP TT time trial machine, our triathlon-specific TIME WARP TRI perfectly combined aerodynamics, efficiency and comfort to give you the edge in the middle discipline of your favourite sport. Equipped with easy-to-operate and ultra-reliable disc brakes and the latest high and position adjustable armrests, the TIME WARP TRI lets you find your most efficient position for a variety of courses as well as keeps you fresh and ready to attack your run. A high-end carbon frame, slip-streamed disc brake integration and perfectly incorporated additional storage capacity round up the TIME WARP TRI offering and help to keep weight and aerodynamic drag super low.

  • Super-light CF5 carbon triathlon frame and fork
  • Vision Metron TC 55 carbon wheelset
  • Hydraulic Shimano Dura-Ace disc brakes with tri-specific levers
  • Vision Metron S-BEND height and position adjustable tri-specific armrests
  • Full cable integration and additional top tube storage bento box
  • Shimano Ultegra 12-speed Di2 drivetrain with tri-specific shifting options
Specifications

Merida 2026 Time Warp Tri Limited

Frame

Size: XS, S, M, L
Colour: Metallic Black/Flash BCP
Frame: TIME-WARP TRI CF5 IV; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Fork: TIME-WARP TRI CF5 IV disc; MAT carbon; 700x30C max. WHS
Shock:

Drivetrain

Crankset: 165 mm-XS, 170 mm-S/M, 172,5 mm-L
Pedals:
Chain: Shimano M6100-12
Bottom Bracket: Shimano SM-BB71-41B; Pressfit 86.5
Rear Derailleur: Shimano Ultegra Di2
Front Derailleur: Shimano Ultegra Di2
Shifter: Shimano ST-R9180
Freewheel/Cassette: Shimano Ultegra; 52-36 ATC

Braking System

Brakes: Shimano Dura Ace; Hydraulic disc
Brake Levers:

Wheels

Tyres: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
Wheels/Rims: Vision SC 60 Disc brake; 100x12 WHF; 142x12 WHR; 23 IWR; 60 HRI; Centerlock; MAT carbon; Tubeless tape ready
Hubs: [F] [R]

Other

Handlebar: MERIDA Metron TT; MAT carbon
Stem: MERIDA Metron TT; MAT carbon; -17 ASD
Seat Post: MERIDA TEAM TT II; Aero shape; Carbon
Saddle: Prologo Zero TRI PAS Tirox

Geometry

Merida 2026 Time Warp Tri Limited

Bike Frame Geometry Image

Frame Size XS S M L
Tyre Sizes 28" 28" 28" 28"
ST seat tube [mm] 460 500 540 580
TT top tube [mm] 490 510 550 570
CS chain stay length [mm] 415 415 415 415
HTA head tube angle [°] 71 72 72 72
STA seat tube angle [°] 77 76 76 76
BD bottom bracket drop [mm] 55 55 70 70
HT head tube [mm] 110 130 130 173
FL fork length [mm] 371 371 371 371
R reach [mm] 376 381 417 427
S stack [mm] 496 518 533 574
WB wheel base [mm] 984 988 1022 1045
SH stand over height [mm] 752 781 799 838
