Home » Merida 2026 Scultura Team

Merida 2026 Scultura Team

(0)
$13,999.00
Out of stock
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

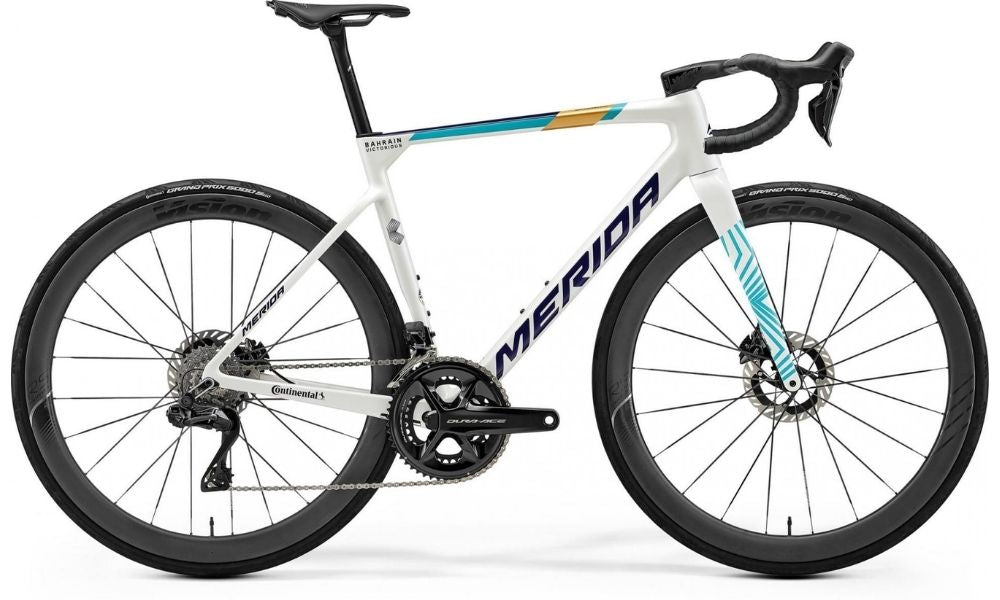

Merida 2026 Scultura Team

Team level SCULTURA road race bike featuring an award-winning frame and the same race proven geometry as the REACTO aero bike. The TEAM provides low weight, gunshot acceleration, air slicing frame features and class-leading frame compliance.

Race proven and WorldTour-winning, the SCULTURA TEAM is the comfort-focused alternative to the REACTO aero bike. While the latest SCULTURA has learned a lot from the REACTO in terms of aerodynamics, we have put extra effort into reducing the weight even further and making it the most comfortable pure road race bike in our range. Equipped with top-end components from Shimano, Vision, Continental and MERIDA, the TEAM is the perfect bike when comfort, weight and lightning-fast acceleration are essential for your next road session.

The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

  • Super-light CF5 carbon frame (approx. 822 g - in size M) with race-proven (identical to REACTO) geometry
  • Shimano Dura-Ace 12-speed Di2 groupset
  • Power meter
  • MERIDA TEAM SL 1P one-piece cockpit
  • Vision Metron 45 SL wheelset with Continental 5000S TR 28 mm tyres
  • MERIDA TEAM SL II carbon seat post and DISC COOLER technology
Specifications

Merida 2026 Scultura Team

Frame

Size: M, L
Colour: Team/Pearl(white)
Frame: SCULTURA CF5 V, MAT carbon, 700x30C max. WHS, 100x12/ 142x12 AST, Pressfit 86,5,
Fork: SCULTURA CF5 disc, MAT carbon, 700x30C max. WHS,
Shock:

Drivetrain

Crankset: Shimano Dura Ace, 52-36t, Power Meter,
Pedals:
Chain: Shimano M9100-12,
Bottom Bracket: Shimano SM-BB92-41B, Pressfit 86.5
Rear Derailleur: Shimano Dura Ace Di2,
Front Derailleur: Shimano Dura Ace Di2,
Shifter: Shimano Dura Ace disc Di2,
Freewheel/Cassette: Shimano Dura-Ace R9200, 11-30, 12sp,

Braking System

Brakes: Shimano Dura Ace, Hydraulic disc
Brake Levers:

Wheels

Tyres: Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Wheels/Rims: Vision Metron RS 45 SL Clincher TL Disc, 100x12 WHF, 142x12 WHR, 23 IWR, 45 HRI, Centerlock, MAT carbon, Tubeless tape ready
Hubs: [F] [R]

Other

Handlebar: Vision Metron 5D ACR EVO, MAT carbon, 380mm (3S-XXS-XS-S), 400mm (M-L), 420mm (XL),
Stem: Vision Metron 5D ACR EVO, MAT carbon
Seat Post: Metron RS Seatpost, 27.2 DSP, 0 SSB, Carbon
Saddle: Prologo Nago R4 PAS, Nack

Geometry

Merida 2026 Scultura Team

Bike Frame Geometry Image

Frame Size 3XS XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
ST seat tube [mm] 400 435 458 481 501 521 550
TT top tube [mm] 505 520 535 545 560 575 590
CS chain stay length [mm] 408 408 408 408 408 408 408
HTA head tube angle [°] 70.5 70.5 72 72.5 73.5 73.5 74
STA seat tube angle [°] 75.5 74.5 74 74 73.5 73 73
BD bottom bracket drop [mm] 70 70 70 66 66 66 66
HT head tube [mm] 100 105 112 128 140 155 176
FL fork length [mm] 385 385 385 385 385 385 385
R reach [mm] 373 377 383 390 395 400 409
S stack [mm] 512 517 529 542 557 571 593
WB wheel base [mm] 979 985 982 989 990 1000 1010
SH stand over height [mm] 700 721 745 765 782 800 823
