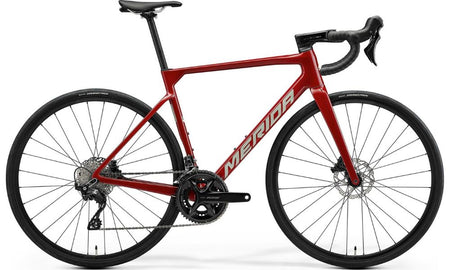

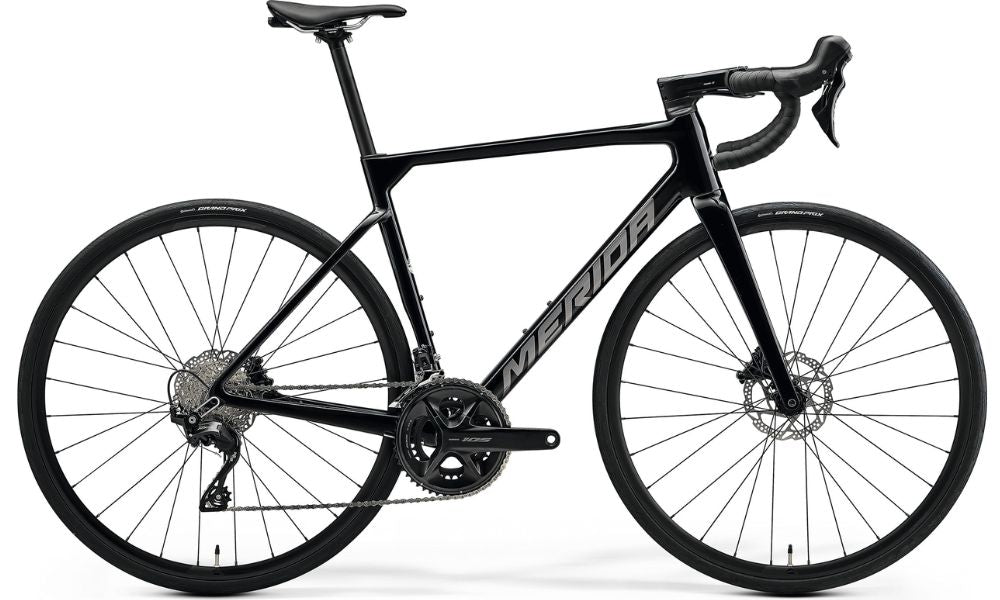

Merida 2026 Scultura 4000

Merida 2026 Scultura 4000

Our entry model into the SCULTURA frame family. Based on our lightweight CF3 frame featuring the same race-proven geometry as our REACTO and a solid componentry package. Our 4000 is light, aerodynamically efficient and super comfortable.

Based around the latest, super smooth 12-speed 105 groupset from Shimano and featuring our award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry bike to our latest SCULTURA frame design family. Similarly to its bigger brothers, it combines a long list of air slicing features and race-proven geometry, adapted from our REACTO family, with low weight and class-leading riding comfort creating an almost unbeatable package.

The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

• Lightweight CF3 carbon frame (approx. 997 g - in size M) with race proven (identical to REACTO) geometry
• Shimano 105 12-speed groupset
• MERIDA EXPERT SL II stem
• MERIDA EXPERT SL handlebar
• MERIDA EXPERT SL wheelset
• MERIDA EXPERT CC carbon seat post and DISC COOLER technology

Specifications

Merida 2026 Scultura 4000

Frame

Size: XS, S, M, L, XL
Colour: Heritage Red(Grey)br> Frame: SCULTURA CF3 V, MAT carbon, 700x30C max. WHS, 100x12/ 142x12 AST, Pressfit 86.5
Fork: SCULTURA CF3 disc, MAT carbon, 700x30C max. WHS
Shock:

Drivetrain

Crankset: Shimano 105 R7100, 50-34t
Pedals:
Chain: Shimano M6100-12,
Bottom Bracket: Shimano SM-BB71-41B, Pressfit 86.5
Rear Derailleur: Shimano 105, GS
Front Derailleur: Shimano 105
Derailleur Shifter: Shimano 105 disc
Freewheel/Cassette: Shimano 105 R7101, 11-34, 12sp

Braking System

Brakes: [F] and [R] Shimano 105, Hydraulic disc
Brake Levers:

Wheels

Tyres: [F] and [R] Continental Grand Prix, 700x28C, fold
Wheels/Rims: [F] [R] MERIDA EXPERT SL, 17 IWR, 22 HRI, MAT aluminium
Hubs: [F] Shimano HB-TC500, 100x12 WHF, 28 SPH, Centerlock [R] Shimano FH-TC500-HL, 12-142 WHR, 28 SPH, Centerlock

Other

Handlebar: MERIDA EXPERT SLII, MAT aluminium, (3S-XXS-XS-S), 400mm (M-L), 420mm (XL),
Stem: FSA SMR-II, MAT aluminium,-10
Seat Post: MERIDA EXPERT SL, 27.2 DSP, 0 SSB, Carbon
Saddle: MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
