Merida 2026 One FORTY 400

(0)
$3,399.00
Only 5 left
Low inventory - Hurry up!
Size
Color
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

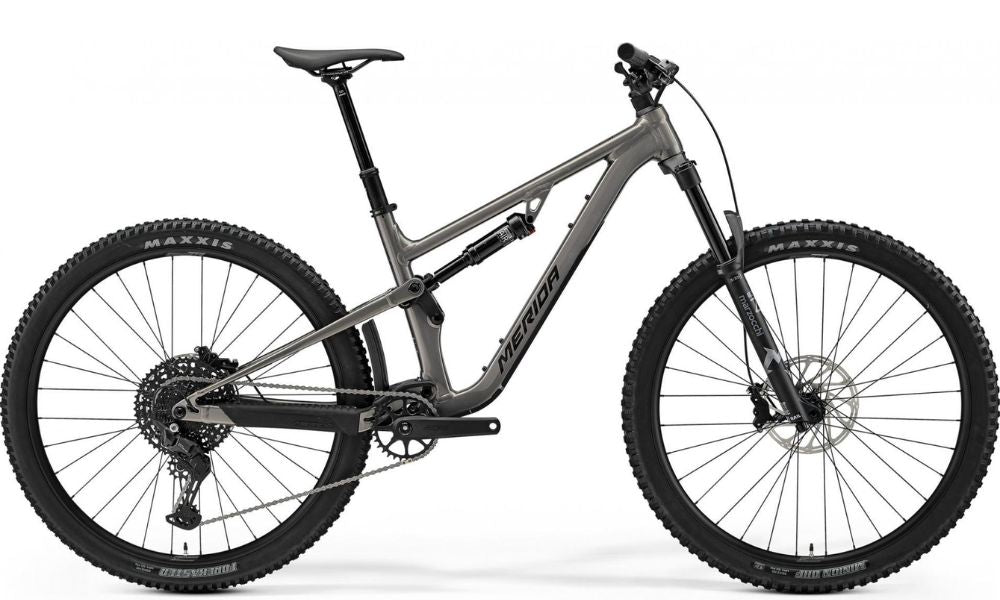

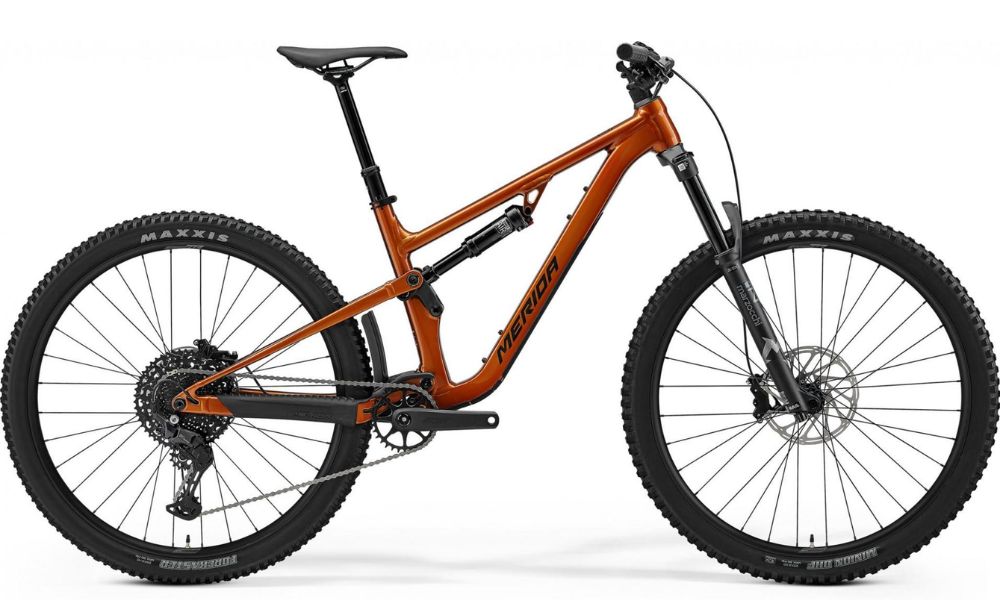

Merida 2026 One FORTY 400

The same ground-breaking trail bike geometry as it's more expensive brethren, just paired to an all-aluminium frame and kit that delivers the performance you need, without the chunky price tag.

The ONE-FORTY 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.

The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focused on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.

  • Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
  • Radical trail geometry with full 29er wheels
  • Marzocchi suspension, 150 mm front, 143 mm rear
  • Durable, wide-range Shimano CUES 11-speed drivetrain
  • 230 mm dropper post on XLong, 200 mm on Long, 170 mm on Mid and 150 mm on Short and XShort
  • Powerful 4-piston SRAM DB4 hydraulic disc brakes
Specifications

Merida 2026 One Forty 400

Frame

Size: X-Short, Short, Mid, Long, X-Long
Colour: Warm SLate Grey(Golden Black) and Wild Honey(Golden Black)
Frame: ONE-FORTY LITE III, 143 STR 29", MAT aluminium, 29x2.5" max. WHS, 148x12 AST, BSA BBR,
Fork: Marzocchi Z2, Air, 150 STR, Tapered, 44mm fork offset, 29x2.6" max. WHS,
Shock: Marzocchi Bomber inline,

Drivetrain

Crankset: MERIDA Expert TR II, 32t
Pedals:
Chain: KMC xGlide,
Bottom Bracket: Samox BSA 24mm EB2401,
Rear Derailleur: Shimano CUES U6000, Shadow Plus
Front Derailleur:
Shifter: Shimano CUES U6000,
Freewheel/Cassette: SunRace 10-50t CS-UX400 EA5, 10-50t, 11sp Linkglide

Braking System

Brakes: Sram DB4, 4 piston
Brake Levers:

Wheels

Tyres: [F] Maxxis Minion DHF, 29x2.5", wire, [R] Maxxis Forekaster, 29x2.4", wire,
Wheels/Rims: MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29",
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA COMP TR, MAT aluminium, 780 WHB, 20 RHB
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XSHORT/SHORT: 150mm travel - MID: 170mm travel - LONG: 200mm travel - XLONG: 230mm travel
Saddle: MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool

Geometry

Merida 2026 One Forty 400

Bike Frame Geometry Image

Frame Size XShort Short Mid Long XLong
Tyre Sizes 29" 29" 29" 29" 29"
ST seat tube [mm] 400 410 425 445 470
TT top tube [mm] 532 559 586 618 649
CS chain stay length [mm] 437.5 437.5 437.5 437.5 437.5
HTA head tube angle [°] 65 65 65 65 65
STA seat tube angle [°] 80 80 80 80 80
BD bottom bracket drop [mm] 35 35 35 35 35
HT head tube [mm] 95 95 95 105 120
FL fork length [mm] 557 557 557 557 557
R reach [mm] 426 453 480 509 535
S stack [mm] 607 607 607 616 629
WB wheel base [mm] 1177 1204 1232 1265 1298
SH stand over height [mm] 730 735 738 735 730
