Merida 2026 ETMO 800

(0)
$10,999.00
Only 4 left
Low inventory - Hurry up!
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

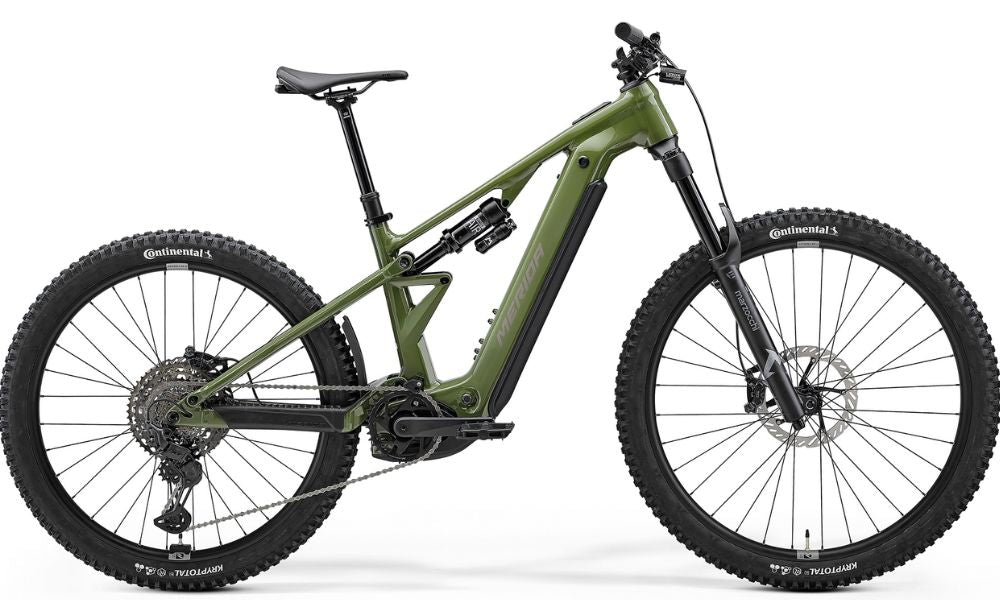

Merida 2026 ETMO 800

Proper performance for riders who don't want to blow the budget. Our high-value aluminium 160 mm full-suspension frame is paired with a powerful Bosch drive unit and high-capacity battery to deliver a fun and capable ride at a price that's hard to ignore.

The ETMO 800 delivers serious performance on the trail without hammering your wallet. We've combined our high-value aluminium 160 mm travel frame with Bosch's powerful 100 Nm CX drive unit and big 800 Wh battery, so you can explore for hours or lap your favourite loops all day long. With mixed-size wheels for a fun but stable ride and our proven geometry, you're guaranteed fun whether you're a fresh face to mountain biking or an experienced hand. Quality kit from Shimano handles stopping and drivetrain duty, while Marzocchi's legendary Bomber suspension, including a stout 38 mm stanchion fork, takes care of the bumps.

A quality e-MTB means more runs, more fun, and more time just getting out there. This is why we’ve created the MERIDA ETMO, our most price-focussed Bosch-powered e-MTB ever. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame that takes inspiration from the award-winning long-travel eONE-EIGHTY, but in an extra versatile and affordable package. The ETMO uses 160 mm of travel* at either end and mixed wheel sizes, so it’s fun and fast on any terrain, with handling that’ll bring a smile to the face of experienced riders and fresh faces alike. We've backed this up with our lifetime frame warranty, too.

With the proven and trusted power of Bosch pedal assistance, the ETMO offers battery and drive unit options for every need and wallet, with 540, 600 or 800 Wh internal batteries and the choice of powerful CX or high-value PX drive units depending on the model. We also have EQ models that come fully equipped with fenders, lights, a kickstand and a rear rack for urban SUV use, plus PRO models that have upgraded drive unit and battery specs.

*Some models come with 140 mm fork and and 143 mm rear travel.

  • Advanced LITE aluminium frame design with 160 mm travel
  • Mixed 29/27.5" size wheel setup for agile and confident handling
  • Bosch CX 100 Nm drive unit with 800 Wh internal battery
  • Marzocchi Bomber Z fork and Bomber Air rear shock, Shimano XT brakes and XT Linkglide 11-speed drivetrain
  • Reynolds 309 tubeless ready wheelset and Continental Kryptotal tyres
  • Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use
Specifications

Merida 2026 EMTO 800

Frame

Size: Short, Mid, Long, X-Long
Colour: Anaconda Green/Grey
Frame: ETMO LITE, MAT aluminium, 160mm STR, 27.5” x 2,6” max. WHS, 148x12 AST, intube
Fork: Marzocchi Bomber Z eMTB, Air, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS
Shock: Marzocchi Bomber Air

Drivetrain

Crankset: FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes
Pedals:
Chain: Shimano LG500
Bottom Bracket:
Rear Derailleur: Shimano XT RDM8130 LinkGlide 11
Front Derailleur:
Shifter: [F] Sram Dropper Lever MMX [R] Shimano XT M8130 11
Freewheel/Cassette: Shimano LG700, 11-50, 11spbr>

Braking System

Brakes: Shimano XT, 4 piston, Shimano CL700, 203mm
Brake Levers:

Wheels

Tyres: [F] Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft compund [R] Continental Kryptotal-R, 27.5x2.4" , fold, Enduro casing, soft compound
Wheels/Rims: Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5"
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA EXPERT eTR, 780 WHB,
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT
Saddle: Proxim Altius Tirox, V-mount adapter, incl. MERIDA minitool

E-Bike

Drive Unit: Bosch Performance Line CX
Battery: Bosch PowerTube 800, 800Wh
Display: Bosch Purion 400
UI/Remote: Bosch Mini Remote
Charger:

Geometry

Merida 2026 ETMO 800

Bike Frame Geometry Image

Frame Size Short Mid Long XLong
Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST seat tube [mm] 380 405 430 455
TT top tube [mm] 556 584 609 636
CS chain stay length [mm] 446 446 446 446
HTA head tube angle [°] 65 65 65 65
STA seat tube angle [°] 78.5 78.5 78.5 78.5
BD bottom bracket drop [mm] 20 20 20 20
HT head tube [mm] 105 115 115 125
FL fork length [mm] 580 580 580 580
FO fork offset [mm] 44 44 44 44
R reach [mm] 425 450 475 500
S stack [mm] 644 653 653 662
WB wheel base [mm] 1202 1231 1256 1285
SH stand over height [mm] 745 748 751 754
