Merida 2026 ETMO 400 Pro

(0)
$7,699.00
Only 2 left
Low inventory - Hurry up!
Size
Color
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

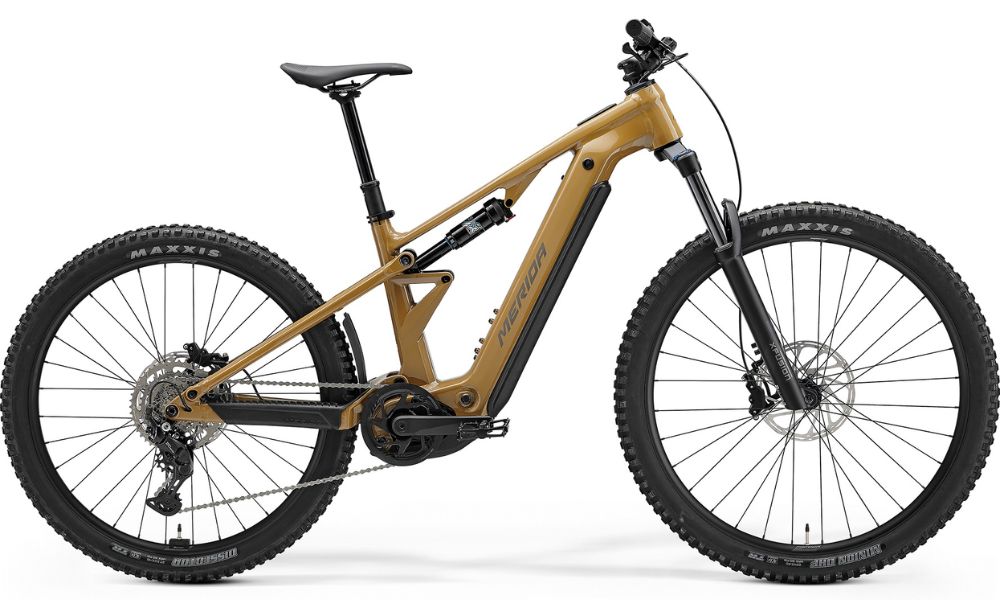

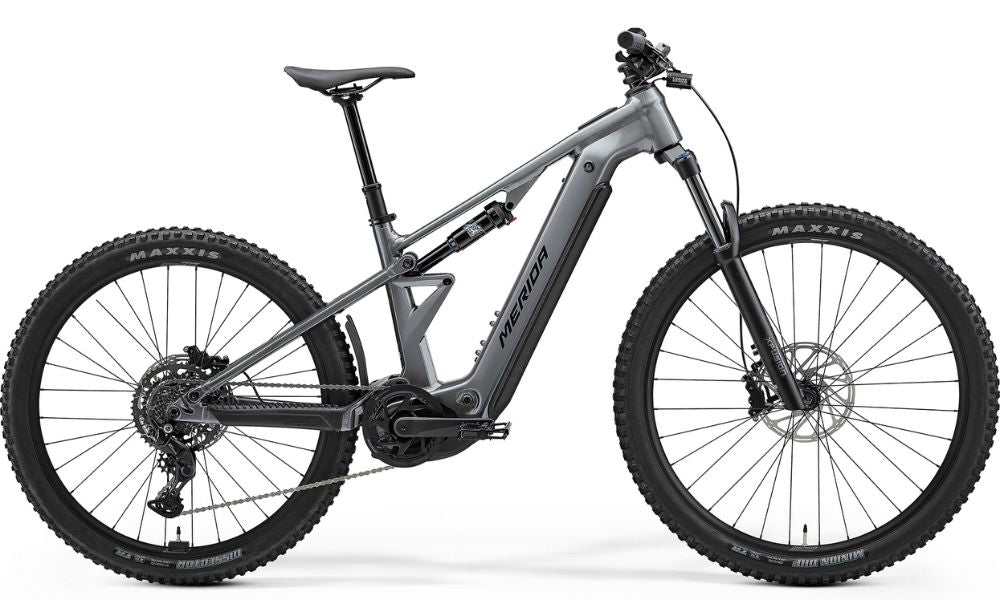

Merida 2026 ETMO 400 Pro

Welcome to the world of e-MTB fun, with a boosted spec. With our reliable aluminium full-suspension frame, an upgraded Bosch drive unit and high-capacity battery paired with high-value components, this is a bike that's ready to get out there and have adventures.

If you need an entry-level e-MTB but want a top-end drive unit and high-capacity battery as standard, the ETMO 400 PRO is the place to start. With a robust aluminium frame and 140 mm of travel at either end, it's more than capable of tackling proper mountain trails. The powerful upgraded Bosch CX drive unit delivers up to 100 Nm of hill-busting torque, and the large 800 Wh battery gives an extra edge over the standard model for those who need more range and power. We've then used high-performance and high-value kit from established brands like Shimano, SRAM and X-Fusion to create a great value package that delivers when it matters.

A quality e-MTB means more runs, more fun, and more time just getting out there. This is why we’ve created the MERIDA ETMO, our most price-focussed Bosch-powered e-MTB ever. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame that takes inspiration from the award-winning long-travel eONE-EIGHTY, but in an extra versatile and affordable package. The ETMO uses 160 mm of travel* at either end and mixed wheel sizes, so it’s fun and fast on any terrain, with handling that’ll bring a smile to the face of experienced riders and fresh faces alike. We've backed this up with our lifetime frame warranty, too.

With the proven and trusted power of Bosch pedal assistance, the ETMO offers battery and drive unit options for every need and wallet, with 540, 600 or 800 Wh internal batteries and the choice of powerful CX or high-value PX drive units depending on the model. We also have EQ models that come fully equipped with fenders, lights, a kickstand and a rear rack for urban SUV use, plus PRO models that have upgraded drive unit and battery specs.

*Some models come with 140 mm fork and and 143 mm rear travel.

  • Advanced LITE aluminium frame design with 140 mm travelMixed 29/27.5" size wheel setup for agile and confident handling
  • Bosch CX 100 Nm drive unit with 800 Wh internal battery
  • X-Fusion Migo 34 fork and O2Pro rear shock, SRAM DB4 brakes and Shimano CUES 9-speed drivetrain
  • MERIDA COMP TRII tubeless ready wheelset and Maxxis tyres
  • Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use
Specifications

Merida 2026 ETMO 400 Pro

Frame

Size: Short, Mid, Long, X-Long
Colour: River Clay/Grey
Frame: ETMO LITE, MAT aluminium, 142mm STR, 27.5” x 2,6” max. WHS, 148x12 AST, intube
Fork: X-Fusion Migo 34 Coil
Shock: X-Fusion O2 Pro

Drivetrain

Crankset: FSA CK-220 wide E-Bike Forged Crankset, 160mm for all size
Pedals:
Chain: Shimano LG500
Bottom Bracket:
Rear Derailleur: Shimano Cues U4000, GS
Front Derailleur:
Shifter: [F] Shimano SL -MT500-L [R] Shimano Cues U4000-9
Freewheel/Cassette: Shimano Cues LG400-9, 11-46t, 9sp

Braking System

Brakes: Sram DB4 stealth, 4 piston, Sram CenterLine, 200mm
Brake Levers:

Wheels

Tyres: [F] Maxxis Minion DHF, 29x2.5", EXO wire, tubeless ready [R] Maxxis Dissector, 27.5x2.4" wired, tubeless ready
Wheels/Rims: MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA COMP TR II, MAT aluminium, 780 WHB, 35 RHB
Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
Seat Post: MERIDA COMP TR IV, 34.9 DSP, 0 SSB, S/M/L/XL: 150 SPT
Saddle: MERIDA COMP SL, V-mount, incl. MERIDA minitool

E-Bike

Drive Unit: Bosch Performance Line CX
Battery: Bosch PowerTube 800, 800Wh
Display: Bosch Purion 200
UI/Remote: Bosch Mini Remote
Charger:

Geometry

Merida 2026 ETMO 400 Pro

Bike Frame Geometry Image

Frame Size Short Mid Long XLong
Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST seat tube [mm] 380 405 430 455
TT top tube [mm] 556 584 609 636
CS chain stay length [mm] 446 446 446 446
HTA head tube angle [°] 65 65 65 65
STA seat tube angle [°] 78.5 78.5 78.5 78.5
BD bottom bracket drop [mm] 20 20 20 20
HT head tube [mm] 105 115 115 125
FL fork length [mm] 580 580 580 580
FO fork offset [mm] 44 44 44 44
R reach [mm] 425 450 475 500
S stack [mm] 644 653 653 662
WB wheel base [mm] 1202 1231 1256 1285
SH stand over height [mm] 745 748 751 754
