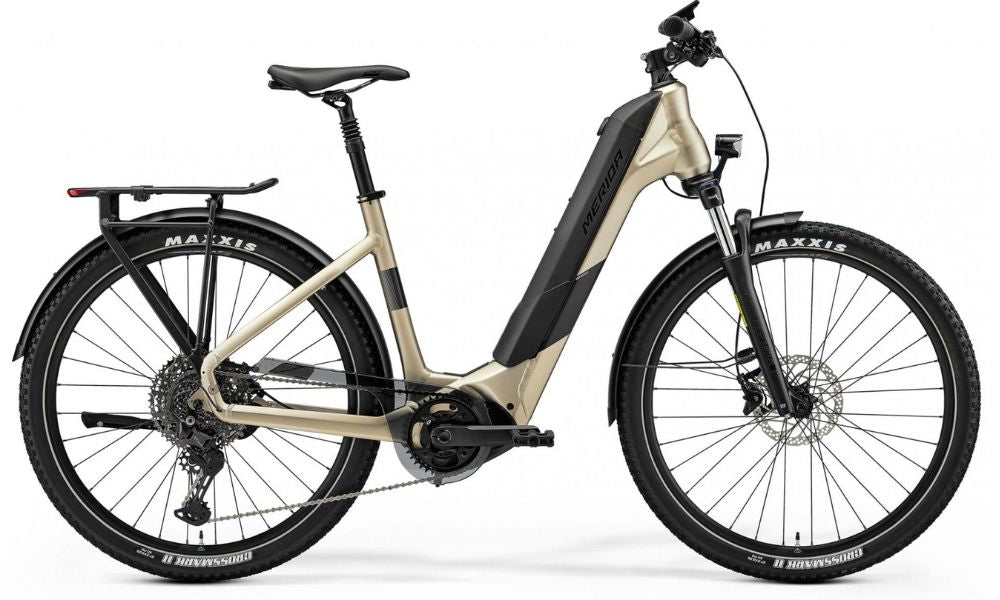

Merida 2026 eSPRESSO CC 675 EQ
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Merida 2026 eSPRESSO CC 675 EQ
Ready for the city, able to handle the countryside. It's the best of both worlds thanks to extra-grippy tyres, a powerful new EP6 drive unit and well-thought-out spec on our tough, low step-through frame.
The eSPRESSO CC 675 EQ is able to cut it on the mean streets but also handle the sort of terrain that'd scare a regular city e-bike silly. That's because we've paired our stiff, low-step-through ENERGY CRADLE frame design with tough 650b wheels and off-road-ready tyres for extra cushion and grip. With a SR Suntour suspension fork and the powerful assistance of the latest Shimano EP6 drive unit and 712 Wh internal battery, it'll keep you going in comfort all day too. Slick shifts from the Shimano 11-speed drivetrain are matched by a powerful performance from the hydraulic disc brakes. We've also added in the convenience of full guards, a rack, lights, lock and a kickstand.
The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Featuring the super-strong low step-through ENERGY CRADLE frame design that gives the bike the necessary rigidity, the eSPRESSO CC models are equipped with a 712, 630 or 504 Wh fully-integrated battery. All come with a refined but powerful Shimano EP6 STEPS pedal-assist motor, delivering 85 Nm of torque. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.
- Latest powerful Shimano EP6 drive unit
- Super low step-through ENERGY CRADLE frame design with internally mounted, high-capacity 712 Wh battery
- Slick Shimano 11-speed drivetrain
- Suspension fork and seat post for comfort and control
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
Specifications
Merida 2026 eSPRESSO CC 675 EQ
Frame
Size: XS, S, M
Colour: Silk High Cream(Black)
Frame: eSPRESSO CC LITE III, MAT aluminium, 27,5x2,25" max. WHS, 135x9 AST, internal,
Fork: Suntour MOBIE A32, Coil, 75 STR, 27,5x2,4" max WHS,
Shock:
Drivetrain
Crankset: Samox NWP203, 38t
Pedals:
Chain: Shimano LG500,
Bottom Bracket:
Rear Derailleur: Shimano CUES U6000 GS
Front Derailleur:
Shifter: Shimano CUES U6000-11,
Freewheel/Cassette: Shimano LG400, 11-50,11,
Braking System
Brakes: Shimano MT410-3A, 2 piston
Brake Levers:
Wheels
Tyres: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line,
Wheels/Rims: MERIDA COMP TK, 20 IWR, MAT aluminium,
Hubs: [F] Shimano TC500, 100x15 WHF, 32 SPH, Centerlock [R] Shimano QC300, 135x9 WHR, 32 SPH, Centerlock
Other
Handlebar: MERIDA EXPERT, MAT aluminium, 660 WHB, 15 RHB
Stem: MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable
Seat Post: JD-SP79, 30.9 DSP, 15 SSB, 40 SST
Saddle: MERIDA EXPERT TK II, V-mount
E-Bike
Drive Unit: Shimano EP6, 85Nm
Battery: Shimano BT-EN817, 712Wh
Controller:
Display: Shimano SC-EN610,
Charger:
Extras
Fenders:
Kickstand:
Lights: [F] Herrmans H-Black MR4 E, [R] Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier,
Carrier:
Frame Lock: Abus 4650 XL,
Geometry
Merida 2026 eSPRESSO CC 675 EQ
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
| ST seat tube [mm] | 380 | 430 | 480 | 530 | 580 |
| TT top tube [mm] | 580 | 595 | 615 | 635 | 655 |
| CS chain stay length [mm] | 470 | 470 | 470 | 470 | 470 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 |
| HT head tube [mm] | 170 | 175 | 180 | 190 | 200 |
| FL fork length [mm] | 476 | 476 | 476 | 476 | 476 |
| R reach [mm] | 385 | 399 | 417 | 435 | 452 |
| S stack [mm] | 656 | 661 | 666 | 675 | 685 |
| WB wheel base [mm] | 1113 | 1129 | 1149 | 1170 | 1190 |
| SH stand over height [mm] | 403 | 403 | 402 | 402 | 401 |
