Merida 2026 eSPRESSO CC 500 EQ

(0)
$5,299.00
In stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

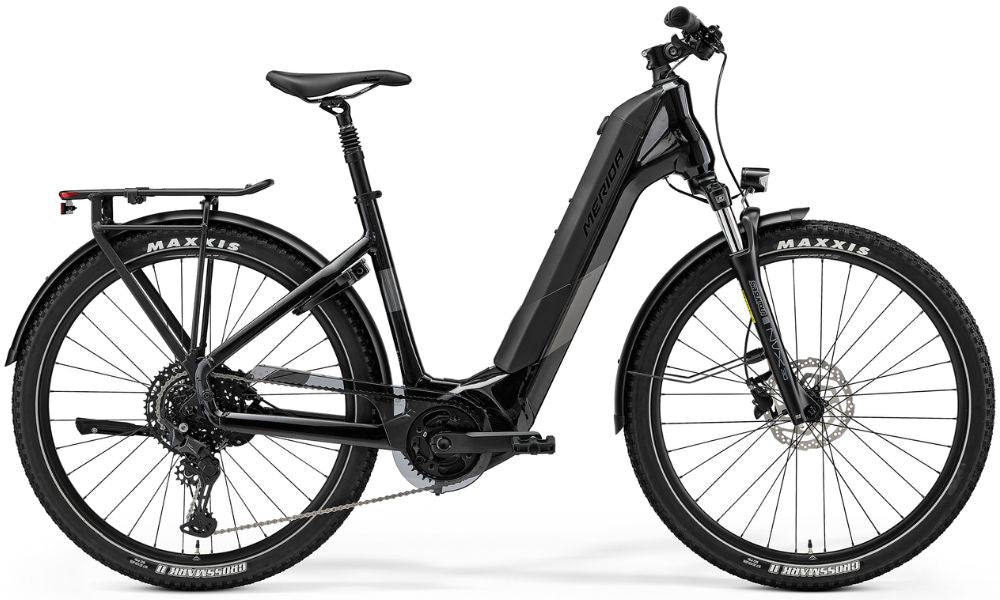

Merida 2026 eSPRESSO CC 500 EQ

Rugged enough for the countryside, tough enough for the city. The eSPRESSO CC 500 EQ pairs the powerful Shimano EP6 drive unit with a 630 Wh battery that sits in our ENERGY CRADLE frame design. It combines the convenience of an external battery with the looks of an internal battery in order to keep the handling safe and secure. We've also fitted tough 650b wheels with comfortable and grippy high-volume tyres that help take the sting out the bumps, along with a suspension fork and seatpost.

The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Featuring the super-strong low step-through ENERGY CRADLE frame design that gives the bike the necessary rigidity, the eSPRESSO CC models are equipped with a 712, 630 or 504 Wh fully-integrated battery. All come with a refined but powerful Shimano EP6 STEPS pedal-assist motor, delivering 85 Nm of torque. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.

  • Latest powerful Shimano EP6 drive unit
  • Super low step-through ENERGY CRADLE frame design with internally mounted 630 Wh battery
  • Slick Shimano 10-speed drivetrain
  • Suspension fork and seat post for comfort and control
  • Agile 650b wheels with grippy high-volume tyres
  • Fully equipped with guards, lights, lock, rack and kickstand
Specifications

Merida 2026 eSPRESSO CC 500 EQ

Frame

Size: XS, S, M, L
Colour: Metallic Black/Gunmetal Grey
Frame: eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal
Fork: Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS
Shock:

Drivetrain

Crankset: MERIDA EXPERT TK; 165mm
Pedals:
Chain: Shimano LG500
Bottom Bracket:
Rear Derailleur: Shimano CUES U6000; GS
Front Derailleur:
Derailleur Shifter: Shimano CUES U6000-10
Freewheel/Cassette: Shimano LG300; 11-48 ATC; 10 GER

Braking System

Brakes: Shimano MT-200; 2 piston
Brake Levers:

Wheels

Tyres: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line
Wheels/Rims: MERIDA COMP TK; 20 IWR; MAT aluminium
Hubs: [F] Shimano QC300; 100x9 WHF; 32 SPH; Centerlock [R] Shimano QC300; 135x9 WHR; 32 SPH; Centerlock

Other

Handlebar: MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB
Stem: MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
Seat Post: JD-SP79; 30.9 DSP; 15 SSB; 40 SST
Saddle: MERIDA EXPERT TK II; V-mount

E-Bike

Drive Unit: Shimano EP6; 85Nm
Battery: Shimano EN806; 630Wh
Controller:
Display: Shimano SC-EN500
Charger:

Extras

Fenders: Sunnywheel SW-FA-311-65(MSB)
Kickstand: Atranvelo ED-100-PC
Lights: [F] Herrmans H-Black MR4 E [R] Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Frame Lock: Abus 4650 XL

Geomerty

Merida 2026 eSPRESSO CC 500 EQ

Bike Frame Geometry Image

Frame Size XS S M L XL
Tyre Sizes 27.5" 27.5" 27.5" 27.5" 27.5"
ST seat tube [mm] 380 430 480 530 580
TT top tube [mm] 580 595 615 635 655
CS chain stay length [mm] 470 470 470 470 470
HTA head tube angle [°] 70 70 70 70 70
STA seat tube angle [°] 73.5 73.5 73.5 73.5 73.5
BD bottom bracket drop [mm] 65 65 65 65 65
HT head tube [mm] 170 175 180 190 200
FL fork length [mm] 476 476 476 476 476
R reach [mm] 385 399 417 435 452
S stack [mm] 656 661 666 675 685
WB wheel base [mm] 1113 1129 1149 1170 1190
SH stand over height [mm] 403 403 402 402 401
