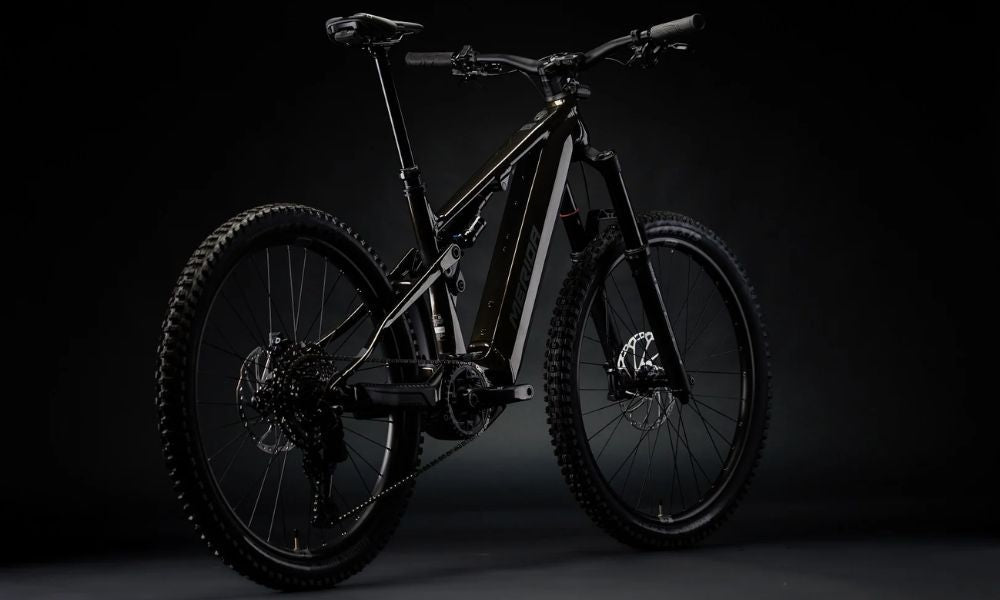

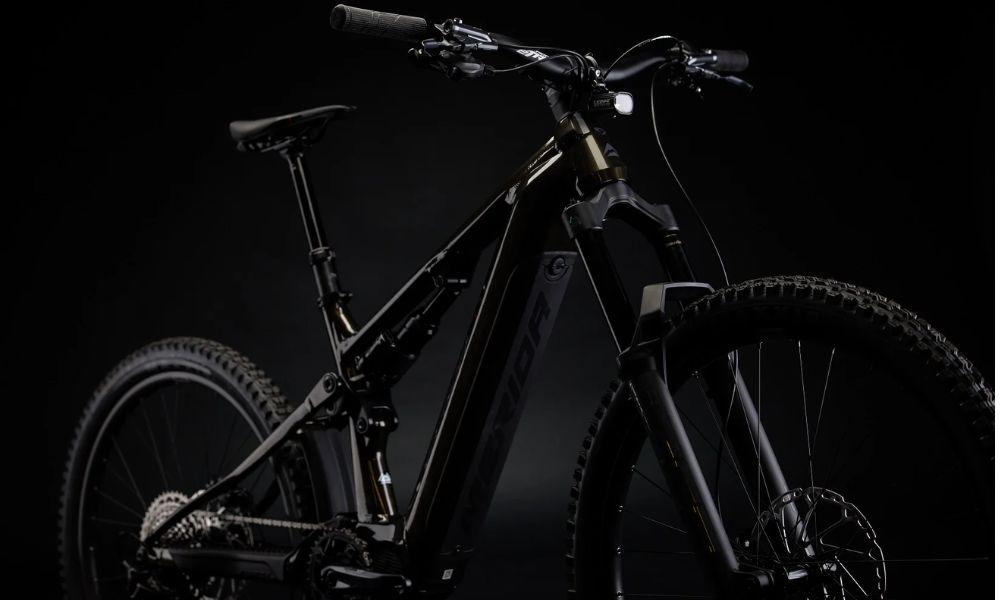

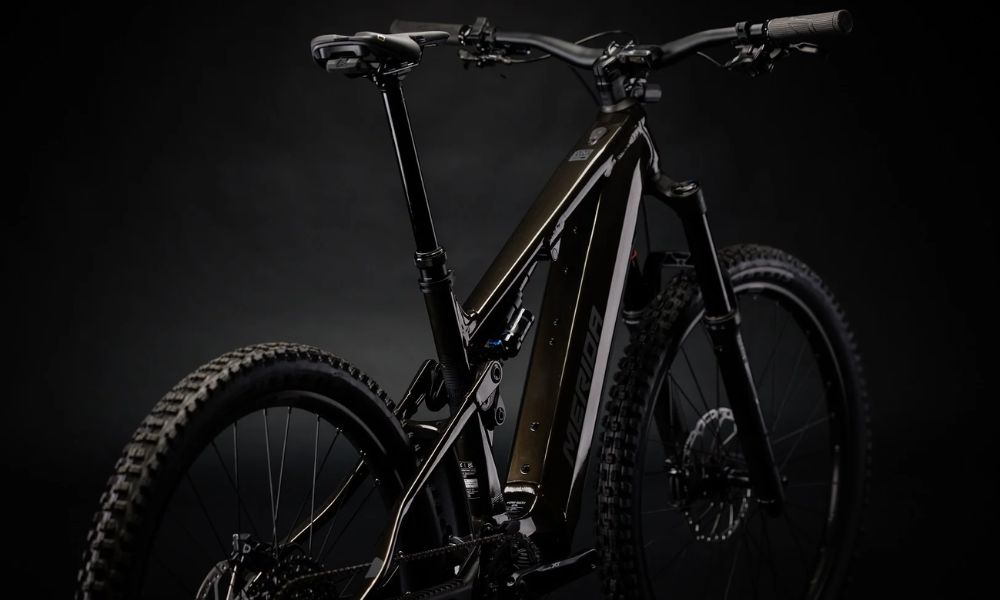

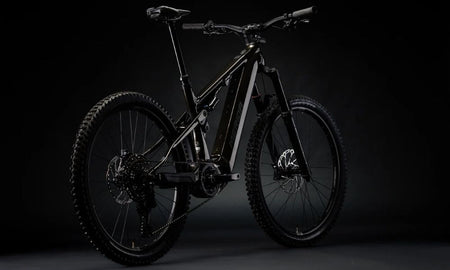

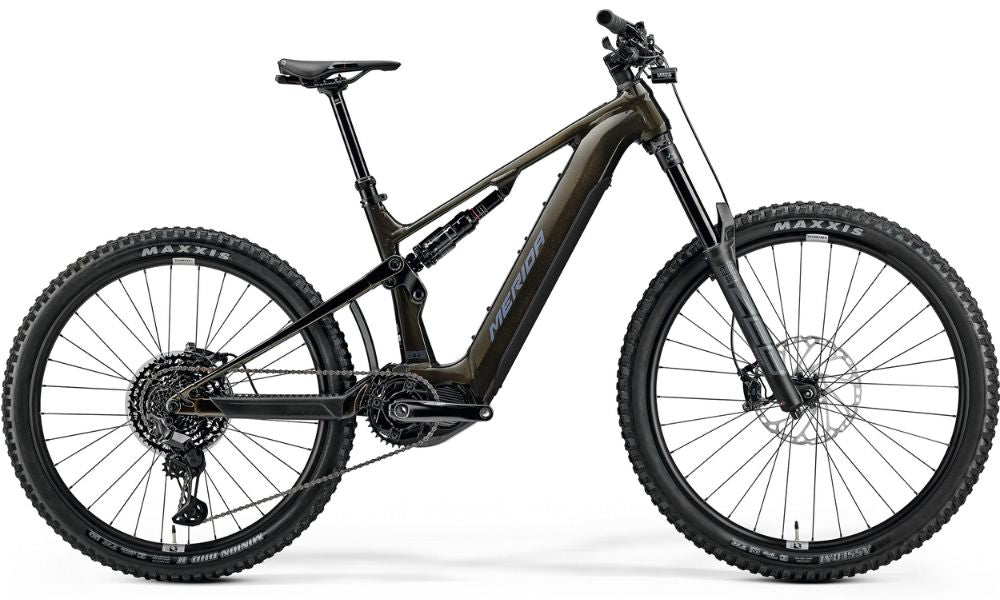

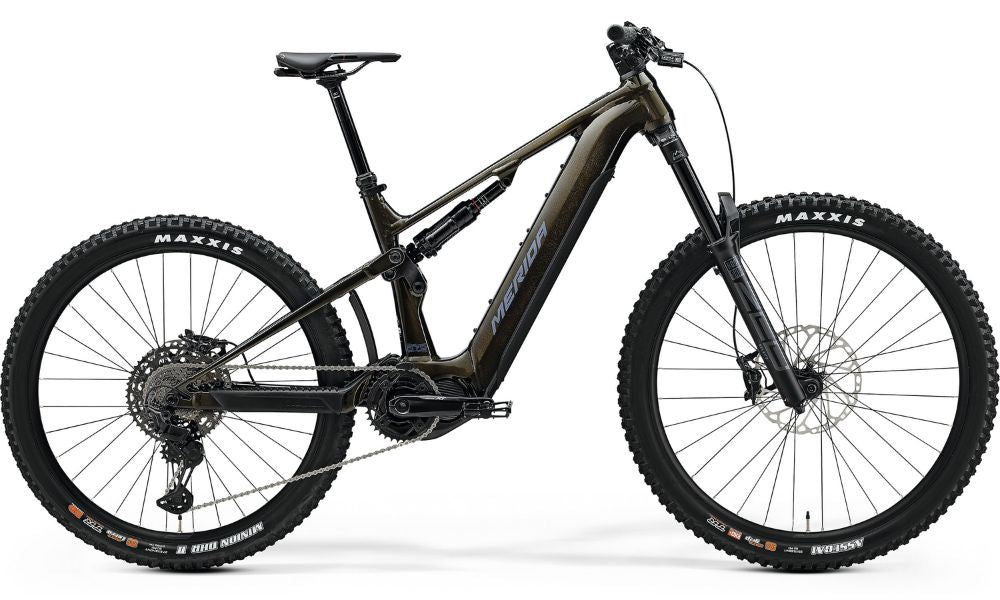

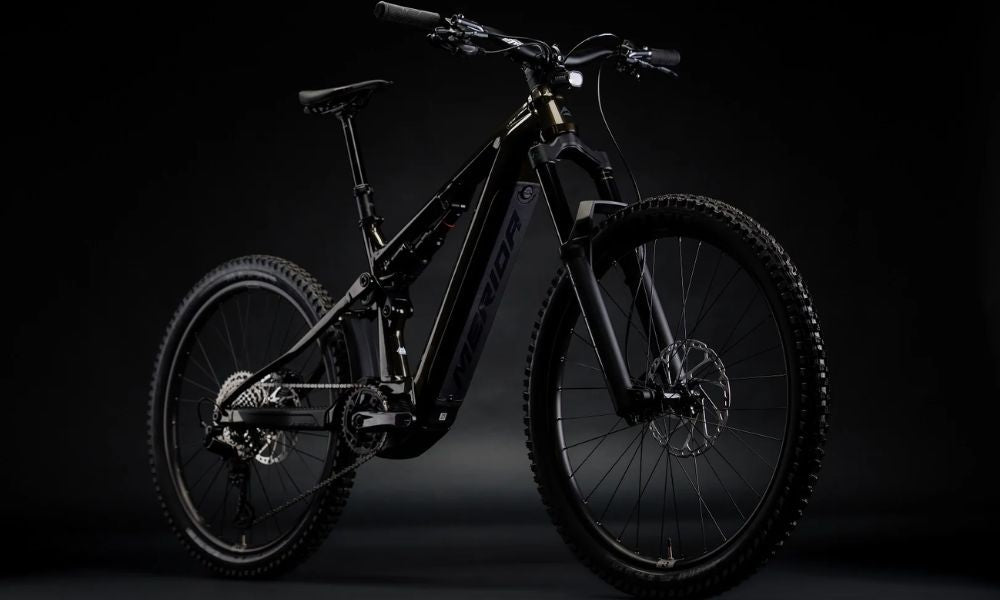

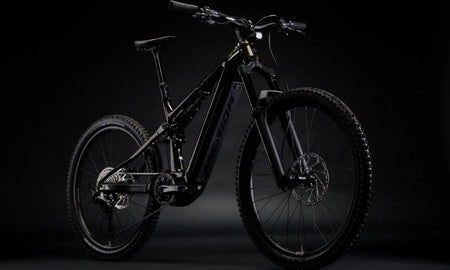

Merida 2026 eONE SIXTY 875

(0)
$9,999.00
Out of stock
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Merida 2026 eONE SIXTY 875

Climb, ride, repeat. Our durable aluminium e-bike frame gets a removable 750 Wh battery and an optional 360 Wh extender for a huge range, all paired with our award-winning suspension and geometry plus durable, high-performance kit from RockShox and Shimano.

Goodbye range anxiety, hello horizon. The eONE-SIXTY 875 marries a full-power drive unit with a user-removable 750 Wh battery and optional 360 Wh range extender, all wrapped up in our durable aluminium frame. With our proven, low-maintenance FAST suspension platform, you can run mixed wheel sizes as standard or switch to full 29" without compromise, while we've combined the no-compromise suspension performance of a RockShox Zeb fork and Super Deluxe shock with Shimano's durable XT Linkglide drivetrain.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With our incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, we've got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while our proven FAST kinematic suspension will take care of anything the trail throws at it. This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post. *except eONE-SIXTY 400

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel

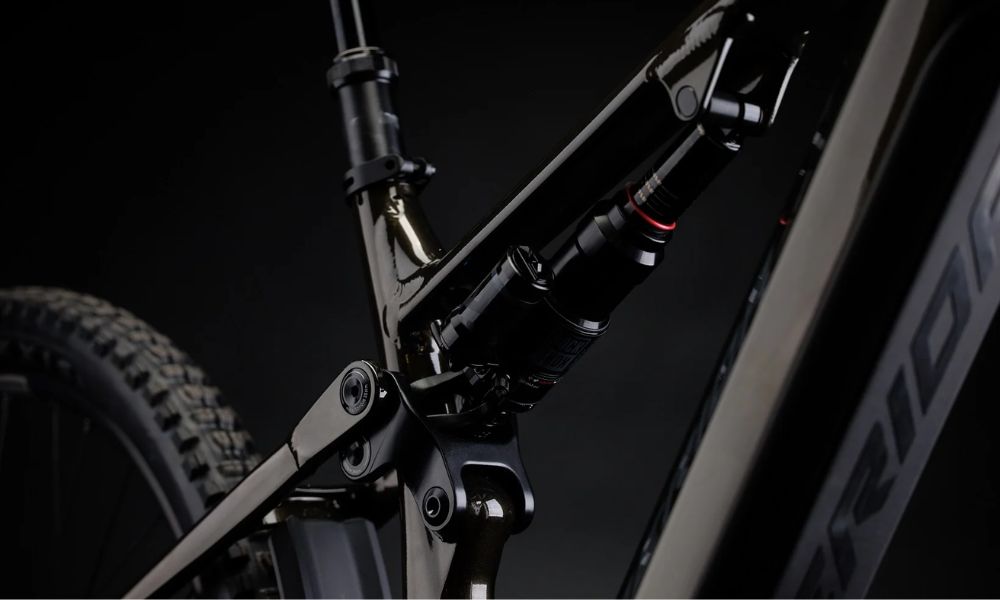

  • Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock

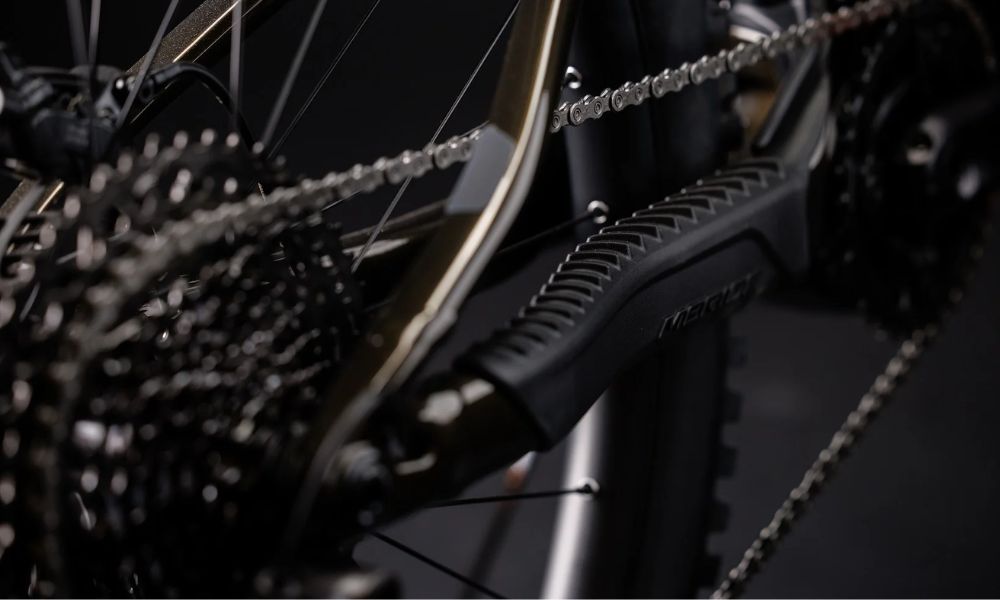

  • Hardwearing Shimano XT Linkglide drivetrain and MERIDA tubeless-ready wheelset
  • User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
  • Mixed wheel size as standard with option to full 29"
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post
Specifications

Merida 2026 eONE SIXTY 875

Frame

Size: Short, Mid, Long, X-Long
Colour: Guarded Gold(Grey)
Frame: eONE-SIXTY LITE IV, MAT aluminium, 160 STR, 29x2.6" max. WHS, 148x12 AST
Fork: Rock Shox ZEB Select, Air, 170 STR, Tapered, 44mm fork offset, 29x2.8" max WHS,
Shock: Rock Shox Super Deluxe Select,

Drivetrain

Crankset: FSA 1x Steel Chainring, 36t
Pedals:
Chain: LG500
Bottom Bracket:
Rear Derailleur: Shimano XT RDM8130 LinkGlide 11,
Front Derailleur:
Shifter: [F] Shimano SL -MT500-IL, [R] Shimano XT M8130 11,
Freewheel/Cassette: Shimano Ultegra; 52-36 ATC

Braking System

Brakes: Shimano XT, 4 piston
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, [R] Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra,
Wheels/Rims: Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5",
Hubs: [F] Shimano XT, 110x15 WHF, 32 SPH, Centerlock [R] Shimano XT, 148x12 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA EXPERT eTR, 780 WHB
Stem: MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
Seat Post: MERIDA TEAM TR II, 34.9 DSP, 0 SSB, all sizes 30-230mm travel
Saddle: PROXIM ALTIUS Steel, V-mount adapter, incl. MERIDA minitool,

E-Bike

Drive Unit: Shimano EP801, 85Nm
Battery: Shimano BT-EN817, 712Wh
Controller:
Display: Shimano SC-EM800,
Charger:

Extras

Fenders:
Kickstand:
Lights: [F] Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount [R] LEZYNE LED FEMTO USB REAR STVZO,
Carrier:

Geometry

Merida 2026 eONE SIXTY 875

Bike Frame Geometry Image

Frame Size XShort Short Mid Long XLong
Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST seat tube [mm] 400 410 425 445 465
TT top tube [mm] 546 567 589 610 632
CS chain stay length [mm] 446 446 446 446 446
HTA head tube angle [°] 64.4 64.4 64.4 64.4 64.4
STA seat tube angle [°] 78.5° 78.5° 78.4° 78.4° 78.3°
BD bottom bracket drop [mm] 9 9 9 9 9
HT head tube [mm] 100 105 110 115 120
FL fork length [mm] 581 581 581 581 581
R reach [mm] 419 439 459 479 499
S stack [mm] 624 628 633 637 642
WB wheel base [mm] 1199 1221 1244 1266 1288
SH stand over height [mm] 763 757 751 749 744
