Merida 2026 eONE Sixty 400

Merida 2026 eONE Sixty 400

Say hello to enduro adventures. Incredible value and proven handling make this the perfect machine to start your e-MTB journey. A powerful Shimano EP801 drive unit and 630 Wh battery will make light work of the hills, and sorted suspension will keep you in control.

Specifications

Merida 2026 eONE Sixty 400

Frame

Size: Short, Mid, Long

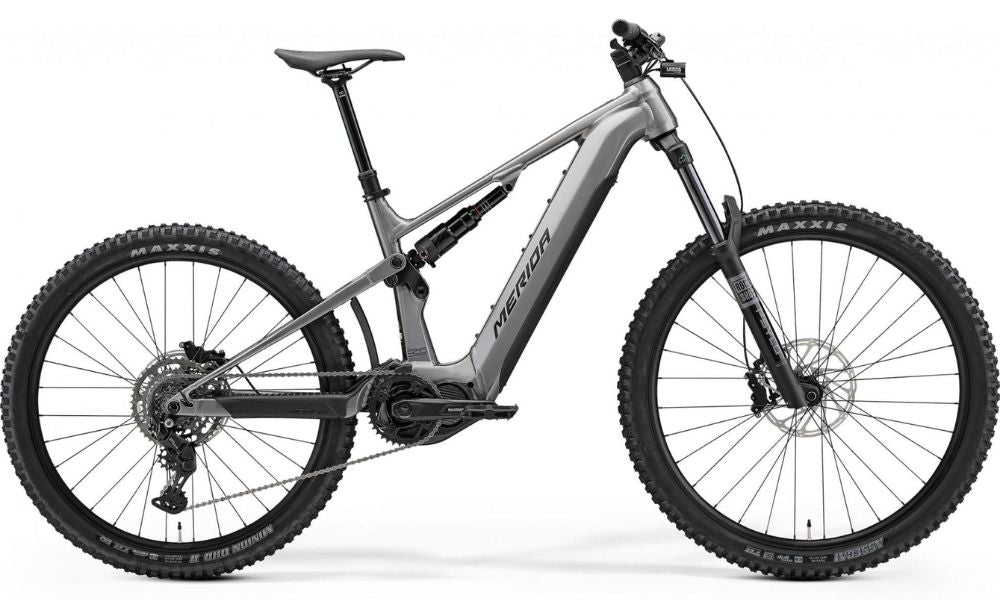

Colour: Gunmetal Grey/Black
Frame: eONE-SIXTY LITE IV, MAT aluminium, 160 STR, 29x2.6" max. WHS, 148x12 AST
Fork: Rock Shock Psylo Silver R, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS
Shock: Rock Shock Deluxe

Drivetrain

Crankset: FSA 1x Steel Chainring, 36t
Pedals:
Chain: Shimano LG500,
Bottom Bracket:
Rear Derailleur: Shimano Cues U4000, GS
Front Derailleur:
Derailleur Shifter: [F] Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post), [R] Shimano Cues U4000-9,
Freewheel/Cassette: Shimano LG400-9, 11-46,9,

Braking System

Brakes: [F] and [R] Sram DB4 stealth, 4 piston
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, [R] Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra,
Wheels/Rims: MERIDA EXPERT TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
Hubs: [F] Shimano TC500-B, 15x100 WHF, 32 SPH, Centerlock [R] Shimano TC500, 12x148 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA EXPERT eTR, 780 WHB
Stem: MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
Seat Post: MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125mm travel - S: 150mm travel - M: 170SPT - L: 200mm travel - XL: 230mm travel
Saddle: MERIDA COMP SL, V-mount, incl. MERIDA minitool,

E-Bike

Drive Unit: Shimano EP801, 85Nm
Battery: Shimano EN806, 630Wh
Display: Shimano SC-EN500
Charger:

Extras

Lights: [F] Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount [R] USB REAR Light CG-214RG,

Geometry

Merida 2026 eONE Sixty 400

Frame Size	XShort	Short	Mid	Long	XLong
Tyre Sizes	29/27.5"	29/27.5"	29/27.5"	29/27.5"	29/27.5"
ST seat tube [mm]	400	410	425	445	465
TT top tube [mm]	546	567	589	610	632
CS chain stay length [mm]	446	446	446	446	446
HTA head tube angle [°]	64.4	64.4	64.4	64.4	64.4
STA seat tube angle [°]	78.5°	78.5°	78.4°	78.4°	78.3°
BD bottom bracket drop [mm]	9	9	9	9	9
HT head tube [mm]	100	105	110	115	120
FL fork length [mm]	581	581	581	581	581
R reach [mm]	419	439	459	479	499
S stack [mm]	624	628	633	637	642
WB wheel base [mm]	1199	1221	1244	1266	1288
SH stand over height [mm]	763	757	751	749	744
