Merida 2026 Big Seven 20

(0)
$1,099.00
Only 2 left
Low inventory - Hurry up!
Size
Color
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

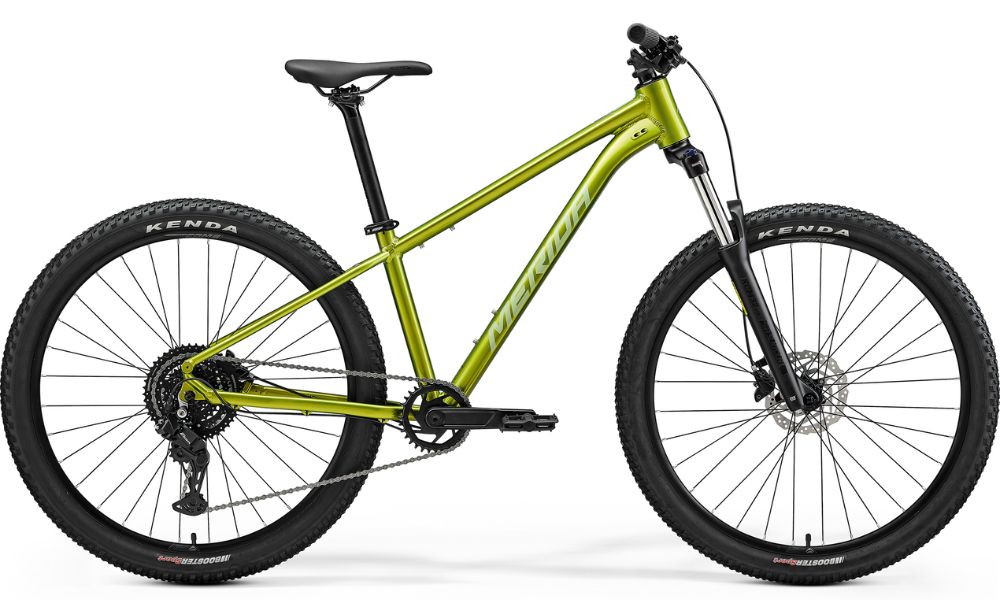

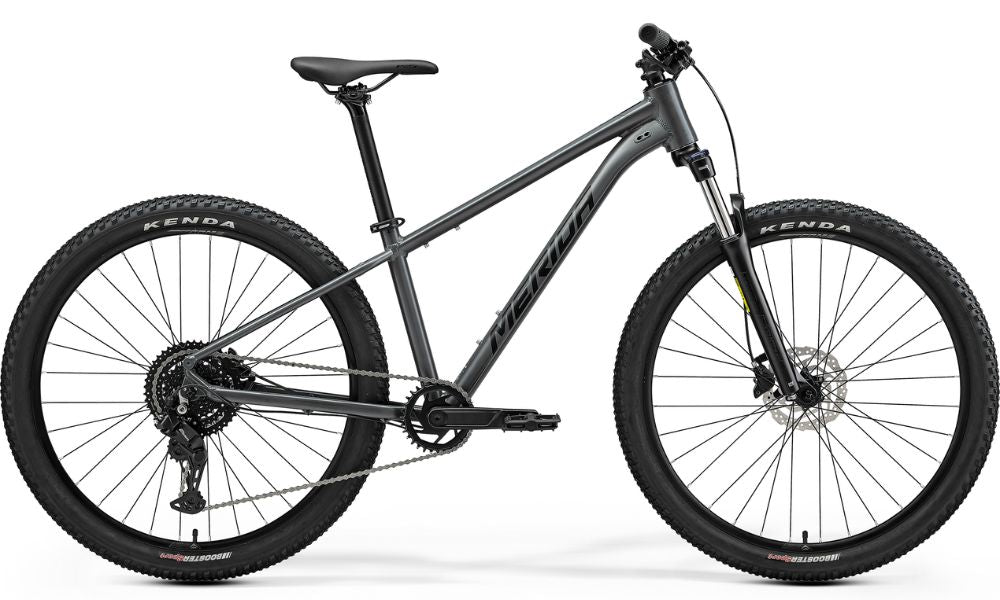

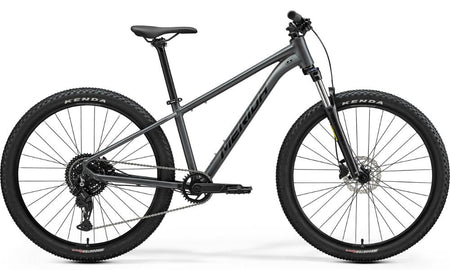

Merida 2026 Big Seven 20

With hydraulic disc brakes, an easy-to-use single ring drivetrain, our latest TFS aluminium frame and a trail-ready 120 mm travel fork, the BIG.SEVEN 20 is ready to ride. Whether you need a versatile bike for weekend trail fun or a rugged way to get about, the updated, confidence inspiring geometry will have you covered while the agile 27.5" wheels are ideal for smaller riders.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver size for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Updated geometry for confident off-road handling
  • Suntour suspension fork with 120 mm travel
  • Shimano hydraulic disc brakes and 1x8-speed drivetrain
  • MERIDA COMP CC 27.5" wheelset and Kenda tyres
  • MERIDA finishing kit including size-tuned handlebars
Specifications

Merida 2026 Big Seven 20

Frame

Size: XS, S
Colour: Fall Green(SilverGreen)
Frame: BIG.SEVEN TFS V, MAT aluminum, 29 WHS, 135x9 AST, BSA BBR, Smooth welding
Fork: SR Suntour XCM32 NLO, Coil, 120 STR, lockout, 29x2,4" max. WHS,
Shock: ,

Drivetrain

Crankset: Prowheel Epro-MD26S, 32t, MAT Aluminium,
Pedals:
Chain: KMC Z8.3,
Bottom Bracket: Shimano UN101 LL123,
Rear Derailleur: Shimano Essa RD-U2000-8, GS
Front Derailleur:
Shifter: Shimano Essa SL-315-8R,
Freewheel/Cassette: Shimano CS-HG300-8, 11-45t, 8sp

Braking System

Brakes: [F] and [R] Shimano MT200, hydraulic brake
Brake Levers:

Wheels

Tyres: [F] and [R] Kenda Booster, 27.5x2.4",
Wheels/Rims: MERIDA COMP CC, 20 IWR, MAT aluminium,
Hubs: [F] Shimano QC300, 100x9 WHF, 32 SPH, Centerlock [R] Shimano QC300-HM, 135x9 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA CC, MAT aluminium, 15 RHB, XXS/XS: 700WHB, S: 720 WHB,
Stem: MERIDA COMP CC, MAT aluminium, 31.8 DSH, 7 ASD
Seat Post: MERIDA COMP CC, MAT aluminium, 30.9 DSP, 0 SSB
Saddle: MERIDA Sport comfort,

Geometry

Merida 2026 Big Seven 20

Bike Frame Geometry Image

Frame Size XXS XS S
Tyre Sizes 27.5" 27.5" 27.5"
ST seat tube [mm] 320 340 365
TT top tube [mm] 516 539 561
CS chain stay length [mm] 442 442 442
HTA head tube angle [°] 67 67 67
STA seat tube angle [°] 74 74 74
BD bottom bracket drop [mm] 37 37 37
HT head tube [mm] 95 105 115
FL fork length [mm] 515 515 515
FO fork offset [mm] 42 42 42
R reach [mm] 350 370 390
S stack [mm] 582 592 601
WB wheel base [mm] 1067 1091 1114
SH stand over height [mm] 651 671 694
