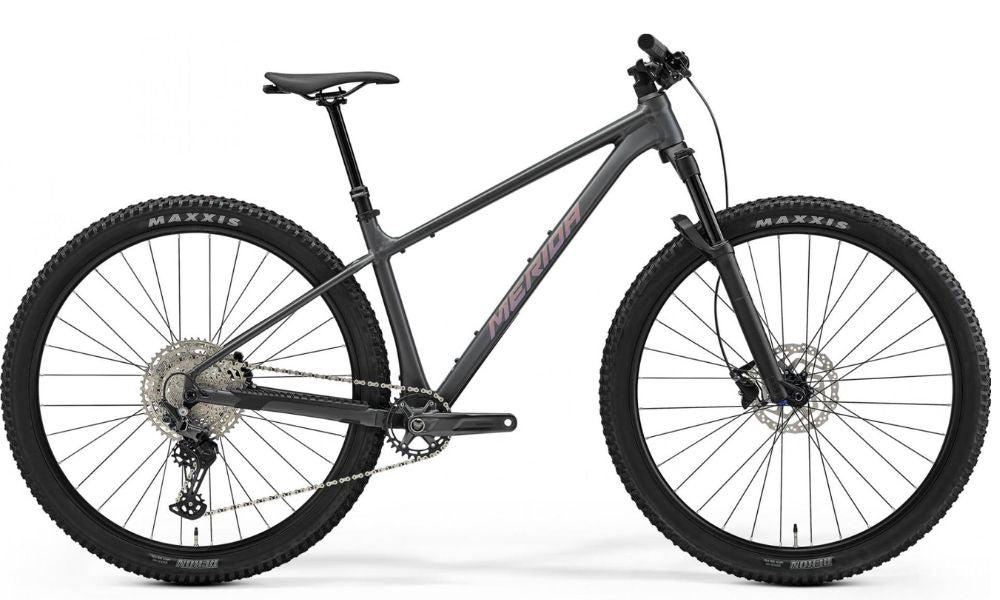

Merida 2026 Big Nine TR 700

Merida 2026 Big Nine TR 700

Downcountry fun without the big price tag. The BIG.NINE TR 700 pairs our LITE aluminium frame with a longer travel 120 mm air-sprung fork to deliver serious speed with trail bike-style descending prowess. With fast-rolling 29x2.4" tyres, there's plenty of grip, while a dropper seatpost helps with control when the trail tips downwards. Shimano's durable CUES 1x10-speed drivetrain offers plenty of gears for any climb, while hydraulic disc brakes keep excess speed in check.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

• High-performance LITE aluminium frame with 2.4" tyre clearance
• Progressive geometry with AGILOMETER sizing for confident handling
• SR Suntour fork with 120 mm travel for improved descending ability
• Wide range Shimano 11-speed drivetrain
• MERIDA wheelset with trail-ready Maxxis tyres
• MERIDA dropper seatpost with remote lever

Specifications

Merida 2026 Big Nine TR 700

Frame

Size: S, M, L, XL
Colour: Silk Dark Grey/Rainbow Purple
Frame: BIG.NINE TR LITE III, MAT aluminium, 29x2.4" max. WHS, 148x12 AST, BSA BBR
Fork: Manitou Machete Comp, Air, 120 STR, Tapered, 44 mm fork offset
Shock:

Drivetrain

Crankset: Shimano Deore MT512, 32t
Pedals:
Chain: KMC X12
Bottom Bracket: Shimano BB-MT-501, 24mm
Rear Derailleur: Shimano Deore M6100, SGS
Front Derailleur:
Derailleur Shifter: [F} Shimano SL-MT500-IL [R] Shimano Deore M6100
Freewheel/Cassette: Shimano LG400, 11-48t, 10sp

Braking System

Brakes: [F] and [R] Shimano MT200, 2 piston
Brake Levers:

Wheels

Tyres: [F] and [R] Maxxis Rekon, 29x2.4", wire
Wheels/Rims: MERIDA COMP CC II, 25 IWR, MAT aluminium, tubeless ready
Hubs: [F] Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock [R] Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock

Other

Handlebar: MERIDA EXPERT CC, MAT aluminium, 750 WHB, 10 RHB
Stem: MERIDA TEAM CC III, MAT aluminium, 31.8 DSH, -6 ASD
Seat Post: MERIDA COMP TR, 30.9 DSP, 0 SSB, S: 125mm travel - M/L: 150mm travel - XL/XXL 175mm travel
Saddle: MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool

Geometry

Merida 2026 Big Nine TR 700

Frame Size	S	M	L	XL	XXL
Tyre Sizes	29"	29"	29"	29"	29"
ST seat tube [mm]	380	410	440	470	500
TT top tube [mm]	594	614	637	659	681
CS chain stay length [mm]	430	430	430	430	430
HTA head tube angle [°]	66.9	66.9	66.9	66.9	66.9
STA seat tube angle [°]	74.2	74.2	74.2	74.2	74.2
BD bottom bracket drop [mm]	57	57	57	57	57
HT head tube [mm]	95	95	105	115	125
FL fork length [mm]	530	530	530	530	530
R reach [mm]	420	440	460	480	500
S stack [mm]	614	614	624	633	643
WB wheel base [mm]	1132	1152	1176	1199	1223
SH stand over height [mm]	712	713	715	723	758
