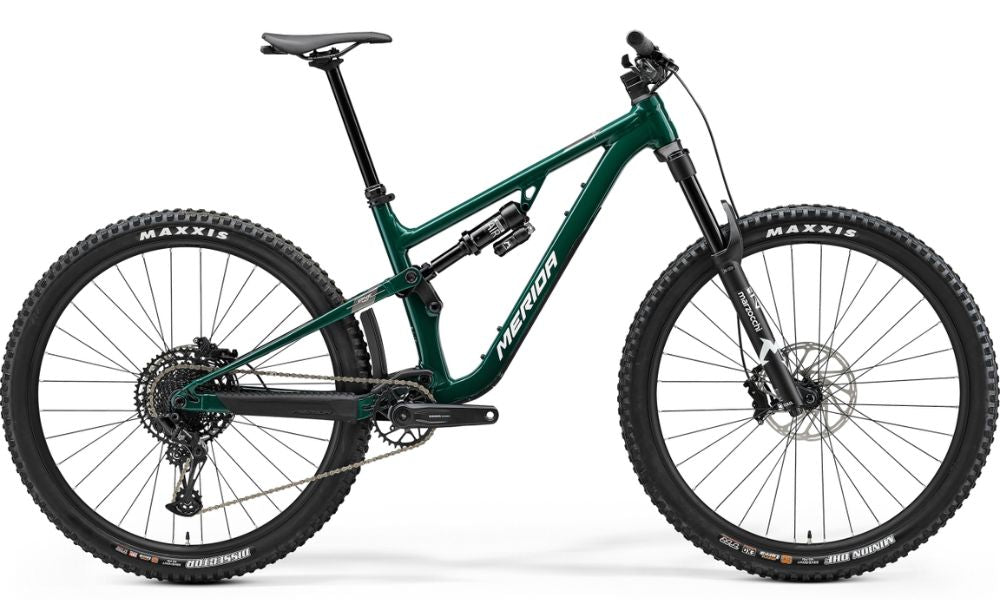

Merida 2025 One Forty 700

(0)
$3,999.00
-9% $4,399.00 $3,999.00
Out of stock
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Merida 2025 One Forty 700

Bikeradar's Trail Bike of the Year 2023, the ONE-FORTY 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Our radical trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed SRAM drivetrain and four-piston brakes, high-performance Marzocchi suspension plus our long travel adjustable dropper post deliver unwavering performance.

The test and award-winning ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With our AGILOMETER sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. We’ve focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, WIRE PORT cable routing and a reliable threaded bottom bracket plus carbon frames have on-board tool storage and Fidlock magnetic bottle cages.

  • Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
  • Radical trail geometry with full 29er wheels
  • 230 mm travel-adjustable dropper post
  • Marzocchi suspension, 150 mm front, 143 mm rear
  • Wide-range SRAM 12-speed drivetrain
  • Powerful 4-piston hydraulic disc brakes
Specifications

Merida 2025 One Forty 700

Frame

Colour: Dark Forest Green
Frame: ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
Fork: Marzocchi Z1; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS
Shock: Marzocchi Bomber Air; Air; platform

Drivetrain

Crankset: Sram Eagle S1000 Eagle; 32 ATC
Chain: Sram SX Eagle
Bottom Bracket: Sram BB DUB BSA 73 MTB WIDE
Rear Derailleur: Sram NX Eagle
Front Derailleur:
Derailleur Shifter: Sram NX
Freewheel/Cassette: Sram PG-1210 Eagle; 11-50 ATC; 12 GER

Braking System

Brakes: Sram DB8 stealth; 4 piston, Sram CenterLine; 200mm
Brake Levers:

Wheels

Tyres: [F] Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTera [R] Maxxis Dissector; 29x2.4"; fold; TR EXO+ MaxxTerra
Wheels/Rims: MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
Hubs: [F] Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock [R] Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Other

Handlebar: MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
Saddle: MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
Seat Post: MERIDA TEAM TR II; 34.9 DSP; 10 SSB; all sizes 30-230 SPT\

Geometry

Merida 2025 One Forty 700

  XShort Short Mid Long XLong
Tyre Sizes 29" 29" 29" 29" 29"
ST seat tube [mm] 400 410 425 445 470
TT top tube [mm] 532 559 586 618 649
CS chain stay length [mm] 437.5 437.5 437.5 437.5 437.5
HTA head tube angle [°] 65 65 65 65 65
STA seat tube angle [°] 80 80 80 80 80
BD bottom bracket drop [mm] 35 35 35 35 35
HT head tube [mm] 95 95 95 105 120
FL fork length [mm] 557 557 557 557 557
R reach [mm] 426 453 480 509 535
S stack [mm] 607 607 607 616 629
WB wheel base [mm] 1177 1204 1232 1265 1298
SH stand over height [mm] 730 735 738 735 730
