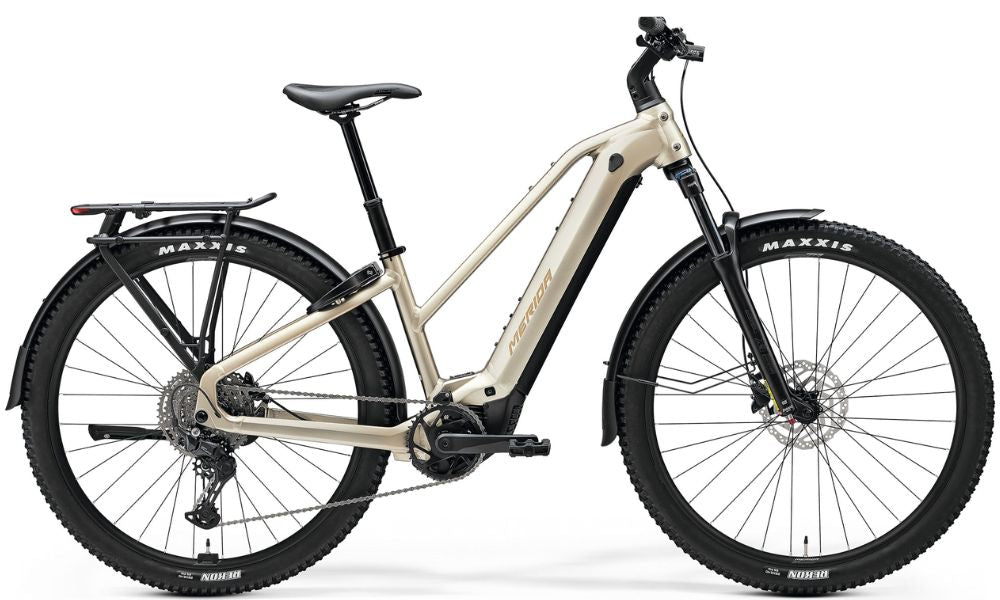

Merida 2025 eFLOAT CC 500 EQ ST

Merida 2025 eFLOAT CC 500 EQ

Dirt or road, it doesn't matter. With a 120 mm suspension fork and chunky MTB-style tyres, it's capable on both, while the powerful Bosch CX drive unit and 800 Wh make even the biggest hills a pleasure.

The eFLOAT CC 500 doesn't care where you're going - it'll get you there. With grippy 2.4" wide MTB-style tyres on smooth rolling 29" wheels plus a 120 mm Suntour suspension air fork, it'll tame broken road surfaces and off-road trails easily. Coming fully equipped with lights, lock, mudguards, rear rack and a kickstand, it's also an ideal city companion too, while the Bosch CX drive unit and large capacity 800 Wh battery offer smooth and reliable support on hills.

When life is busy, you need a bike that will help you get the most out of your time. Whether you’re getting to work, taking a cross-town shopping trip or escaping it all to recharge your batteries at the weekend, the MERIDA eFLOAT lineup has a bike for you. An e-bike is an incredibly versatile tool for work or play - but the eFLOAT lineup is more versatile than most thanks to practical and versatile frame designs paired with strong and supportive Bosch drive systems; each will give you more time to do the things that matter. Offering TK trekking, CC SUV-style and HD light cargo options, all bikes come with mudguards, a rear rack, a kickstand, a built-in lock, plus front and rear lights as standard, and each bike has a low step through frame option if you need more clearance. We also use our sleek WIRE PORT cable routing system as standard, so the bikes look as good as they ride. By combining our expertise in aluminium frame design with Bosch’s refined and powerful drive systems, numerous battery options and intuitive display units, we’ve created a trio of models that are subtly adapted to suit your needs.

• All aluminium frame with 29" wheels
• Off-road ready with Suntour X1 120 mm air fork
• Maxxis Rekon 2.4" tyres with MTB-style tread
• Powerful Bosch CX drive unit and removable 800 Wh battery
• Shimano CUES U6000 10-speed drivetrain, dropper seatpost
• Fully equipped with lights, guards, lock and kickstand

Specifications

Merida 2025 eFLOAT CC 500 EQ

Frame

Colour: High Cream
Frame: eFLOAT LITE II ; MAT aluminium; 29"x2.4" with fender max. WHS; 148x12 AST; intube
Fork: SR Suntour X1-Boost; Air; 120 STR; 29x2.4" max WHS
Shock: NA

Drivetrain

Crankset: FSA Direct Mount Steel Chainring; 38 ATC
Chain: Shimano LG500
Bottom Bracket: NA
Rear Derailleur: Shimano Cues U6000; GS
Front Derailleur:
Derailleur Shifter: Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post)/Shimano CUES U6000-10
Freewheel/Cassette: Shimano Cues LG400; 11-48 ATC; 10 GER

Braking System

Brakes: Shimano MT-200; 2 piston, Shimano RT10; 180mm
Brake Levers:

Wheels

Tyres: Maxxis Rekon; 29x2.4"; wire
Wheels/Rims:
Hubs: [F] Shimano TC500; 15x100 WHF; 32 SPH; Centerlock [R] Shimano TC500; 12x148 WHR; 32 SPH; Centerlock

Other

Handlebar: MERIDA EXPERT; MAT aluminium; 680 WHB; 15 RHB
Stem: MERIDA EXPERT TK III; MAT aluminium; 31.8 DSH;
Saddle: MERIDA EXPERT TK II; V-mount
Seat Post: MERIDA COMP TR IV; 34.9 DSP; 0 SSB; S/M/L/XL: 150 SPT

E-Bike

Drive Unit: Bosch Performance Line CX
Display: Bosch Pruion 200
Controller:
Battery: Bosch PowerTube 800 ; 800Wh

Extras

Lights: [F] Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount [R] Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Pannier Rack: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Fenders: Sunnywheel SW-FA311-70A/ SW-FA311-70E1
Kickstand: Atranvelo ED-100-PC

Geometry

Merida 2025 eFLOAT CC 500 EQ
