Marin 2026 Tam 1
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

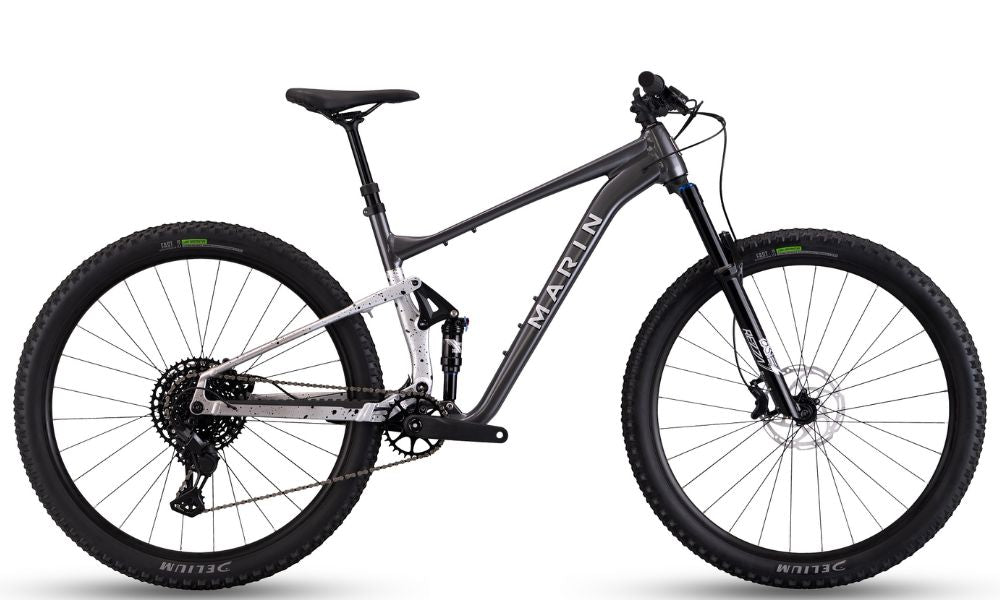

Marin 2026 Tam 1
Fun shouldn't cost a fortune.
The TAM 1's high-tech Series 4 Aluminum frame and 120mm of XC-tuned IsoTrac suspension absolutely rip rough terrain. X-Fusion's lightweight 130mm travel XC Rezza fork paired with the Rezza shock and MicroSHIFT'spremium 11-speed Advent MX drivetrain deliver top-performing kit at an almost unbelievable price.
The confidence-boosting 65-degree head angle keeps you in control and hungry for more – crush local XC laps, tackle epic rides, or just shred for the joy of it.
Specifications
Marin 2026 Tam 1
Frame
Size: S, M, L, XL
Colour: Dark Grey/White
Frame: All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs
Fork: X-Fusion Rezza, 130mm Travel, Fine-Cut Damper RCP 3-Pos, 110x15mm Bolt-On Axle, 44mm Axle
Shock: X-Fusion Rezza, RLX 3-Pos Compression Adjust, 190x45mm, 30x8M Hardware, B-Tune
Drivetrain
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing
Pedals:
Chain: KMC X-11 Silver and Black
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: microSHIFT Advent MX, RD-M7005M, 11-Speed
Front Derailleur:
Shifter: microSHIFT Advent MX, SL-M7115-R, 11-Speed
Freewheel/Cassette: microSHIFT Advent CS-H114, 11-50T, 11-Speed
Braking System
Brakes: Tektro HD-M535 Hydraulic Disc, 180mm Rotor
Brake Levers: Tektro HD-M535
Wheels
Tyres: [F] [R] Delium Fast, 29x24", Light Construction, Dual Compound, Tubeless Ready
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 28H, Tubeless Compatible
Hubs: [F] Novatech, 148x12, 6-Bolt, HG Driver, 28H [R] Novatech, 110x15mm, 6-Bolt Disc, 28h
Other
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 20mm Rise, 6ş Up, 9ş Back
Stem: Marin 3D Forged Alloy, 45mm
Seat Post: X-Fusion Manic LC Dropper Post, Adjustable Travel, 1X Remote MMX Clamp, 30.9MM Diamter, S = 150MM / M = 170MM / L-XL = 200MM
Saddle: Marin Speed Concept
Geometry
Marin 2026 Tam 1
| S | M | L | XL | |
|---|---|---|---|---|
| AStack | 593.8 | 603 | 612 | 621 |
| BReach | 425 | 455 | 480 | 510 |
| CHeadtube angle | 65° | 65° | 65° | 65° |
| DHeadtube length | 90 | 100 | 110 | 120 |
| ESeattube length | 400 | 410 | 450 | 500 |
| FSeattube angle | 76° | 76° | 76° | 76° |
| GToptube effective | 562.7 | 595.7 | 623.7 | 656.7 |
| HBb height | 333 | 333 | 333 | 333 |
| IBb drop | 38 | 38 |
