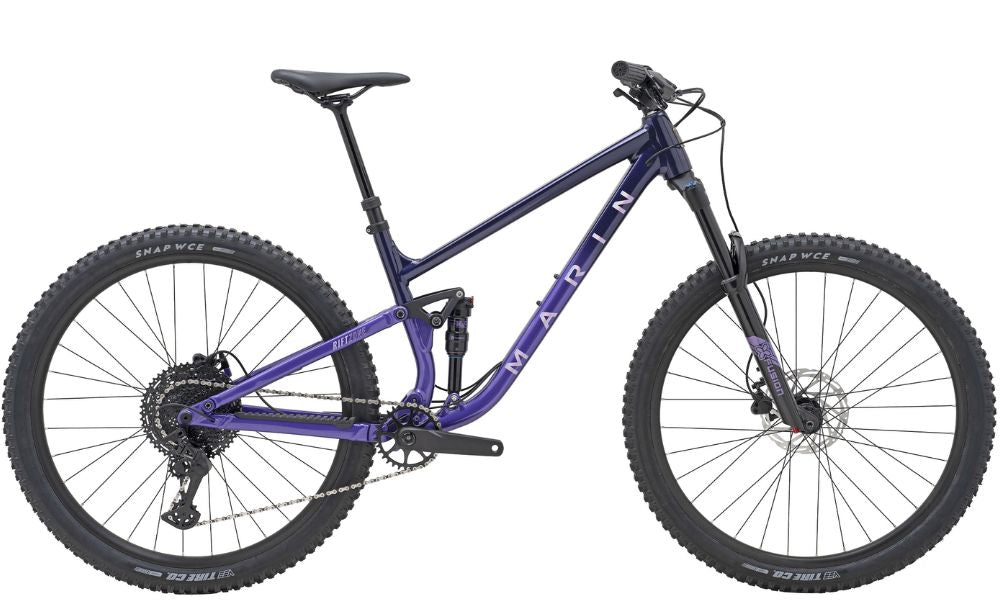

Marin 2026 Rift Zone 1
Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
The Marin Rift Zone 29 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
Specifications
Marin 2026 Rift Zone 1
Frame
Size: XS - 27.5, S - 27.5, M - 29, L - 29, XL - 29

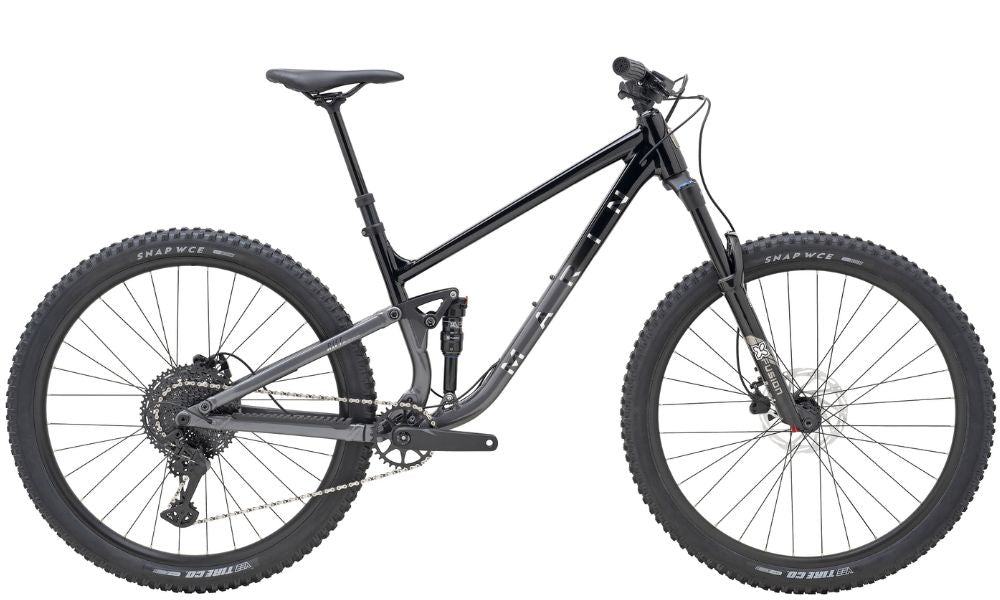

Colour: Dark Purple and Black/Grey
Frame: Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Fork: X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Shock: X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
Drivetrain
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Pedals:
Chain: KMC X-11 Silver and Black
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: Tektro RD-5100-L, Long Cage, Clutch
Front Derailleur:
Derailleur Shifter: Tektro, SL M5100-11R, 11-Speed
Freewheel/Cassette: Tektro CS-M5100-11, 11-Speed, 11-50T
Braking System
Brakes: [F] and [R] Tektro HD-M280 Hydraulic, 180mm Rotor
Brake Levers: Tektro HD-M280
Wheels
Tyres: [F] and [R] Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs: [F] Joytech D041-B15, 110x15mm, 6-Bolt [R] Joytech D142TSE-B5, 141QR, 6-Bolt
Other
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back
Stem: Marin 3D Forged Alloy, 35mm
Seat Post: X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
Saddle: Marin Speed Concept
Geometry
Marin 2026 Rift Zone 1
| XS | S | M (27.5) | M (29) | L | XL | |
|---|---|---|---|---|---|---|
| Stack | 569.1 | 600.7 | 605.2 | 637.3 | 637.3 | 641.8 |
| Reach | 415 | 430 | 450 | 460 | 485 | 515 |
| Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| Headtube Length | 115 | 120 | 125 | 115 | 125 | 130 |
| Seattube Angle | 77° | 77° | 77° | 77° | 77° | 77° |
| Seattube Length | 330 | 390 | 400 | 400 | 425 | 430 |
| Toptube Effective | 552.6 | 568.7 | 589.7 | 605 | 632.1 | 663.2 |
| BB Height | 339 | 339 | 339 | 343 | 343 | 343 |
| BB Drop | 35 | 35 | 35 | 35 | 35 | 35 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1147.8 | 1164.8 | 1186.9 | 1205.1 | 1234.4 | 1266.3 |
| Standover Height | 661.7 | 677.8 | 687.8 | 691.2 | 701.7 | 700.5 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
