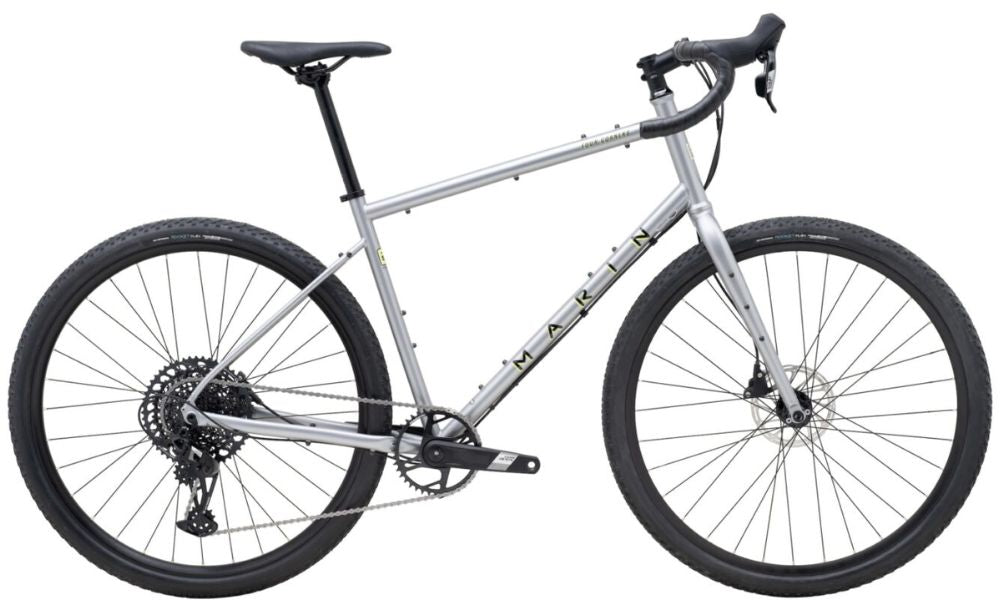

Marin 2026 Four Corners 2

Marin 2026 Four Corners 2

Midweek commute, weekend adventures. No problem for the Marin Four Corners, our steel-framed explorer that's as comfortable on the asphalt as in the dirt.

A double-butted 4130 CrMo steel frame and fork are designed to be comfortable on rough roads and handle fully loaded-touring and bikepacking. We've included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance, and disc brakes to set you up for all conditions and all terrain.

Don't be fooled; that classic frame material doesn't mean low-tech. We've used biometric fit data to offer five different frame sizes, with size-matched 650b or 700C wheels to suit riders between 4'11 perfectly" – 6'4". A high front end creates all-day comfort and heads-up visibility; off-road-ready geometry means you won't skip a beat when you head off the asphalt and explore Beyond Road.

The Four Corners 2 takes all the elements that make the Four Corners fantastic and adds a Series 3 double-butted CrMo frameset, a simpler, wide-range SRAM 1x12 speed Apex drivetrain, and matching, powerful Apex 1 hydraulic disc brakes. The rubber meets the road/path/trail with wider, 44mm Vee Tire Quickstyx tubeless-compatible tires, and the frame can accept tires up to 50mm wide.

Specifications

Marin 2026 Four Corners 2

Frame

Size: XS, S, M, L, XL
Colour: Grey
Frame: Series 3 Double Butted CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, 142x12mm Thru-Axle, Flat Mount 160 Disc Mount, Plentiful Gear Mounts
Fork: Series 3 CrMo, 100x12mm Thru-Axle, Flat Mount 160 Disc Mount, Fender, Rack, and Bottle Cage Eyelets
Shock:

Drivetrain

Crankset: SRAM Apex 1, 40T
Pedals:
Chain: SRAM NX
Bottom Bracket: SRAM DUB BSA
Rear Derailleur: SRAM Apex 1 12-Speed
Front Derailleur:
Derailleur Shifter: SRAM Apex 1 1x12-Speed
Freewheel/Cassette: SRAM CS-XG-1275, 10-52T

Braking System

Brakes: [F] and [R] SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers: SRAM Apex 1 Hydraulic Disc

Wheels

Tyres: [F] and [R] Vee Tire Co., Rocket Man, 650/700x44, Tubeless-Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 25mm Inner, Disc Specific, Tubeless-Compatible
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H

Other

Handlebar: Marin Butted Alloy, Compact 16ş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept

Geometry

Marin 2026 Four Corners 2

	XS	S	M	L	XL
AStack	560	580	618	648	679
BReach	376.7	381	403.3	412.6	426.6
CHeadtube Angle	70°	70°	71°	71°	71°
DHeadtube Length	167	188	188	209	252
ESeattube Angle	74.5°	73.5°	73.5°	72.5°	72°
FSeattube Length	381	422	462	495	528
GToptube Effective	532	553	586	617	647
HBB Height	291	291	288.5	288.5	288.5
IBB Drop	53.5	53.5	72	72	72
JChainstay	432	432	450	450	450
KWheelbase	1035	1047	1087	1107	1132
LStandover Height	668	707	745	777	810
MFork Offset	43	43	49	49	49
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Handlebar Width	440	440	460	460	460
Stem Length	70	70	70	70	70
Crank Length	170	170	170	175	175

All lengths in millimeters
