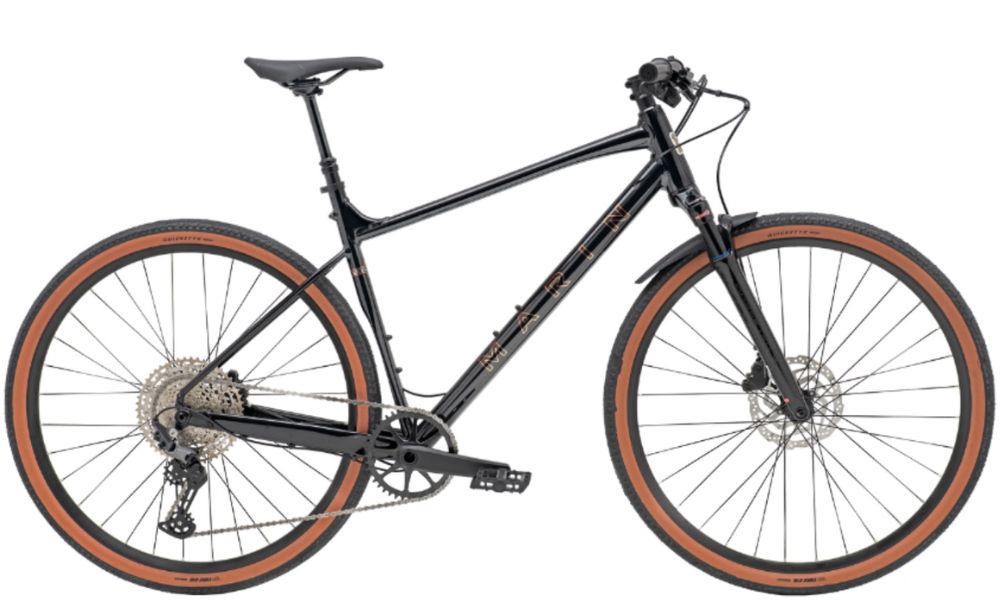

Marin 2026 DSX FS
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Marin 2026 DSX FS
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
Specifications
Marin 2026 DSX FS
Frame
Size: S, M, L, XL
Colour: Black/Orange
Frame: Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Shock:
Drivetrain
Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
Pedals:
Chain: KMC X12
Bottom Bracket: Sealed Outboard Bearing
Rear Derailleur: Shimano Deore, RD6100, 12-Speed
Front Derailleur:
Derailleur Shifter: Shimano Deore, SLM6100, 12-Speed
Freewheel/Cassette: SunRace, 12-Speed, 11-51T
Braking System
Brakes: [F] and [R] Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
Brake Levers: Tektro Hydraulic
Wheels
Tyres: [F] and [R] Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hubs: [F] Forged Aluminum, 100x12mm, Disc, 32H [R] Forged Aluminum, 142x12mm, Disc Specific, 32H
Other
Handlebar: Marin Mini Riser
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy
Saddle: Marin DSX
Geometry
Marin 2026 DSX FS
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| Reach | 400 | 425 | 440 | 455 |
| Headtube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Headtube Length | 100 | 120 | 150 | 180 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 567.23 | 597.6 | 620.6 | 643.6 |
| BB Height | 277.5 | 277.5 | 277.5 | 277.5 |
| BB Drop | 82 | 82 | 82 | 82 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| Standover Height | 667 | 708 | 738 | 761 |
| Fork Offset | 47 | 47 | 47 | 47 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 680 | 680 | 700 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
