Marin 2026 DSX 2
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

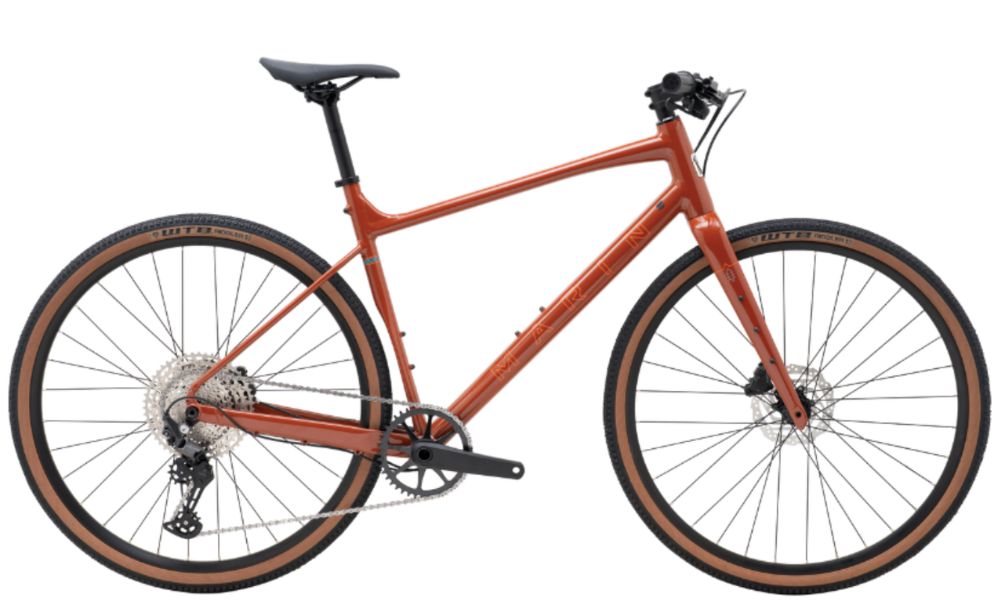

Marin 2026 DSX 2
The Marin DSX is everything we want from a modern, flat-bar gravel bike.
Zippy aluminum frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.
The Marin DSX 2 is built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
Specifications
Marin 2026 DSX 2
Frame
Size: M, L
Colour: Dark Clay/Blue
Frame: Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Shock:
Drivetrain
Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
Pedals:
Chain: KMC X12
Bottom Bracket: Sealed Outboard Bearing
Rear Derailleur: Shimano Deore, RDM6100, 12-Speed
Front Derailleur:
Derailleur Shifter: Shimano Deore, SLM6100, 12-Speed
Freewheel/Cassette: Shimano Deore, CS-M6100, 12-Speed, 10-51T
Braking System
Brakes: Tektro HDR285 Flat Mount Hydraulic Brakes
Brake Levers:
Wheels
Tyres: [F] and [R] WTB Riddler, 700Cx45mm
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hubs: [F] Forged Aluminum, 100x12mm, Disc Specific, 32H [R] Forged Aluminum, 142x12mm, Disc Specific, 32H
Other
Handlebar: Marin MiniRiser
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy
Saddle: Marin DSX
Geometry
Marin 2026 DSX 2
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| Reach | 380 | 405 | 420 | 435 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Head Tube Length | 120 | 150 | 180 | 210 |
| Seat Tube Angle | 74° | 74° | 74° | 74° |
| Seat Tube Length | 430 | 480 | 520 | 558 |
| Top Tube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
| BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Chain Stay | 425 | 425 | 425 | 425 |
| Wheel Base | 1024.42 | 1060 | 1085.4 | 1110.9 |
| Stand Over Height | 658.76 | 700.51 | 730.39 | 758.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| SeatPost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 640 | 680 | 680 | 680 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
