Marin 2026 DSX 1

Marin 2026 DSX 1

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING

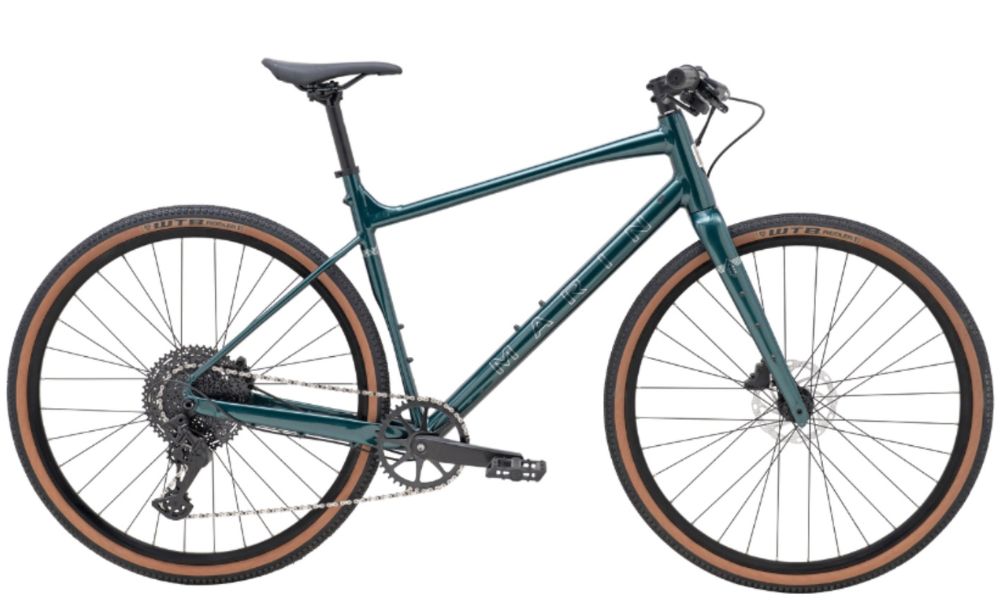

Hopping up to a higher-spec Series 3 aluminum frame and a carbon fibre fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 11-speed 1X Tektro drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Specifications

Marin 2026 DSX 1

Frame

Size: S, M, L, XL
Colour: Green/Silver
Frame: Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Shock:

Drivetrain

Crankset: Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
Pedals:
Chain: KMC X9
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: Tektro Gemini, SL-M5100, 11-speed
Front Derailleur:
Derailleur Shifter: Tektro Gemini, SL-M5100, 11-speed
Freewheel/Cassette: Tektro Gemini,, CS-M5100, 11-Speed, 11-50T

Braking System

Brakes: [F] and [R] Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
Brake Levers: Tektro Hydraulic

Wheels

Tyres: [F] and [R] WTB Riddler, 700Cx45mm
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H

Other

Handlebar: Marin Mini Riser
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy
Saddle: Marin 3D Forged Alloy

Geometry

Marin 2026 DSX 1

	S	M	L	XL
AStack	544.4	572.5	600.6	628.7
BReach	380	405	420	435
CHeadtube Angle	69.5°	69.5°	69.5°	69.5°
DHeadtube Length	120	150	180	210
ESeattube Angle	74°	74°	74°	74°
FSeattube Length	430	480	520	558
GToptube Effective	536.1	569.2	592.2	615.3
HBB Height	279.5	279.5	279.5	279.5
IBB Drop	80	80	80	80
JChainstay	425	425	425	425
KWheelbase	1024.42	1060	1085.4	1110.9
LStandover Height	658.76	700.51	730.39	758.5
MFork Offset	50	50	50	50
Seatpost Diameter	27.2	27.2	27.2	27.2
Handlebar Width	640	680	680	680
Stem Length	70	70	70	70
Crank Length	170	175	175	175

All lengths in millimeters
