Marin 2026 Bayview 24
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Marin 2026 Bayview 24
FUN!
The Bayview Trail 24” are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.
Specifications
Marin 2026 Bayview 24
Frame
Size: 24"

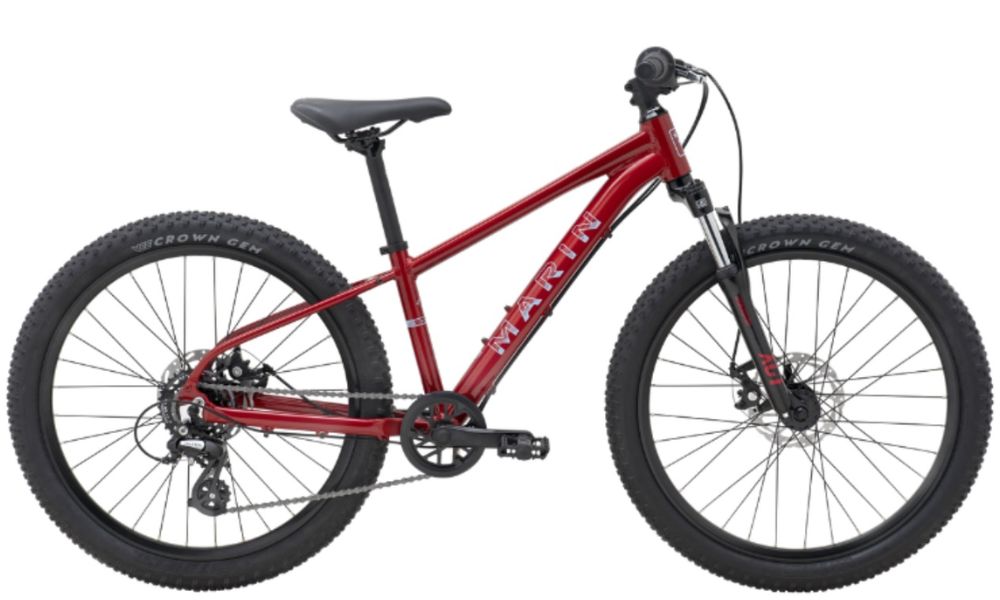

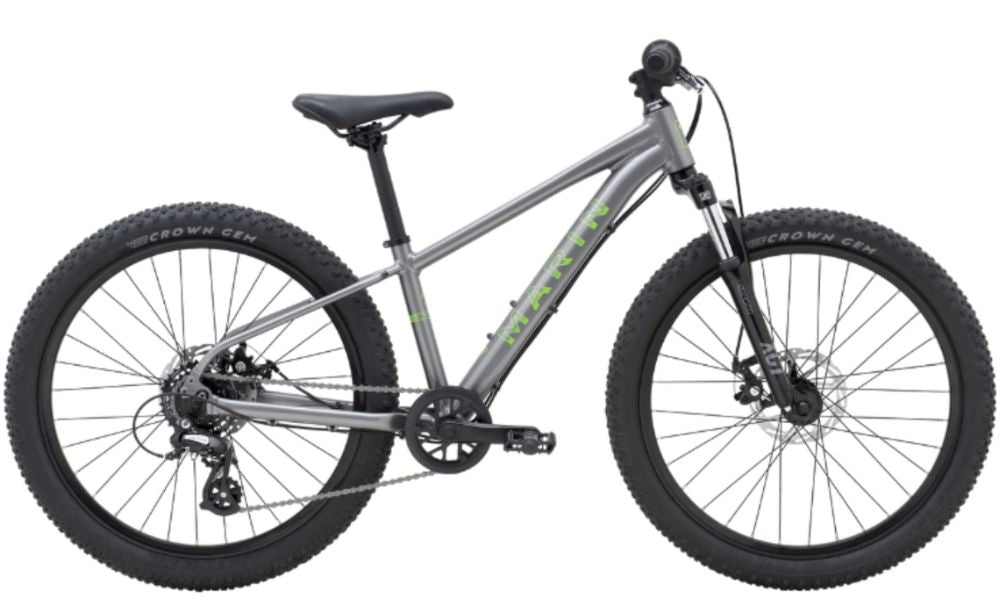

Colour: Red/Blue or Grey
Frame: Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
Fork: SR/Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
Shock:
Drivetrain
Crankset: Forged Alloy, 30T, 152mm, Ring Guard
Pedals:
Chain: KMC Z8
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: Shimano Altus, 7-Speed
Front Derailleur:
Derailleur Shifter: Shimano Revo Twist 1x7-Speed
Freewheel/Cassette: SunRace, 7-Speed, 11-34T
Braking System
Brakes: [F] and [R] Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers:
Wheels
Tyres: [F] and [R] Vee Tire Co. Crown Gem, 24”x2.25”, Wire Bead
Wheels/Rims: Marin, Double Wall Alloy
Hubs: Forged Aluminum Alloy, 32H
Other
Handlebar: Marin Riser, 30mm Rise, 590mm Width
Stem: Marin Alloy, 60mm
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Kids MTB
Geometry
Marin 2026 Bayview 24
| ONE SIZE | |
|---|---|
| Stack | 502.75 |
| Reach | 331.92 |
| Headtube Angle | 70° |
| Headtube Length | 105 |
| Seattube Angle | 73° |
| Seattube Length | 321 |
| Toptube Effective | 485 |
| BB Height | 283 |
| BB Drop | 25 |
| Chainstay | 400 |
| Wheelbase | 946.97 |
| Standover Height | 581.19 |
| Fork Offset | 40 |
| Seatpost Diameter | 27.2 |
| Handlebar Width | 590 |
| Stem Length | 70 |
| Crank Length | 152 |
All lengths in millimeters
