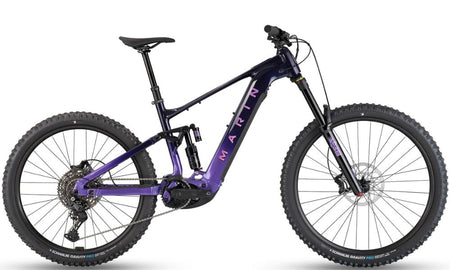

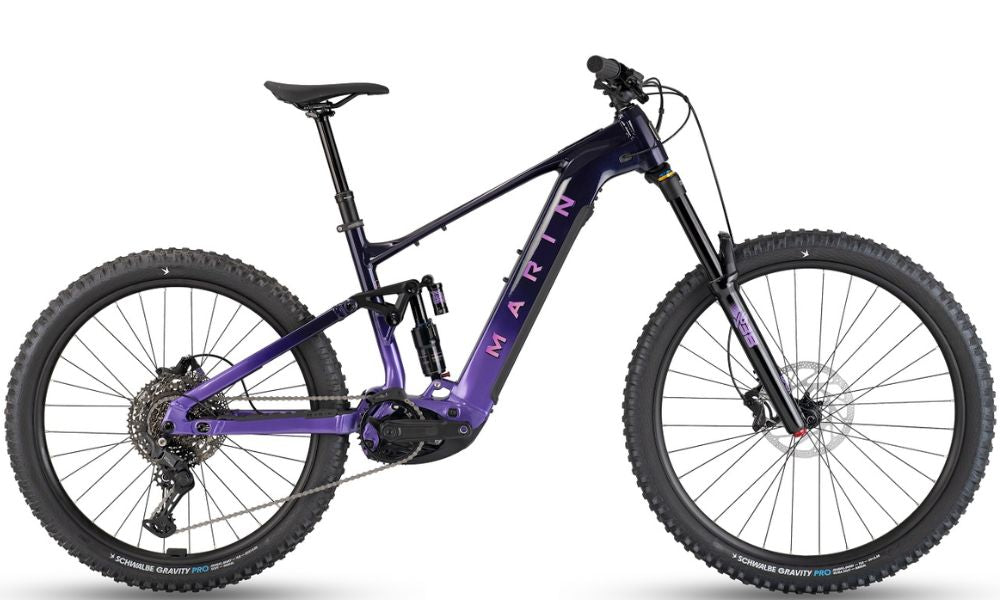

Marin 2026 Alpine Trail E1

Marin 2026 Alpine Trail E1

MTB with added BOOST.

The Alpine Trail E is your ticket to maximum, super-boosted fun. Our take on the ultimate enduro Electric MTB, bigger climbs, longer descents, more laps and more good times, whatever and wherever you're riding, the Alpine Trail E will lap it up time and time again.

Specifications

Marin 2026 Alpine Trail E1

Frame

Size: S, M, L, XL
Colour: Purple
Frame: All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Fork: X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle
Shock: X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune

Drivetrain

Crankset: Marin Forged eMTB Cranks, 150mm
Pedals:
Chain: Shimano LG500
Bottom Bracket:
Rear Derailleur: Shimano CUES RD-U6000 GS, 10-Speed
Front Derailleur:
Shifter: Shimano CUES SL-U6000-10R, 10-Speed
Freewheel/Cassette: Shimano CS-LG300-10, 11-48T

Braking System

Brakes: TRP DHR EVO Comp, 200mm Rotors
Brake Levers: TRP DHR EVO Comp

Wheels

Tyres: [F] Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" [R] Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
Wheels/Rims: [F] [R] New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hubs: [F] Shimano HF-MT500B, 110x15mm, Centerlock [R] Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body

Other

Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back
Stem: Marin 3D Forged Alloy, 35mm
Seat Post: TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle: Marin Short Nose

E-Bike

Drive Unit: Bosch Performance Line CX, 750W, 100Nm
Battery: PT800 Horizontal
Display: Bosch Kiox 400 Top Tube Display
UI/Remote: Bosch Kiox 400 Top Tube Display
Charger:
