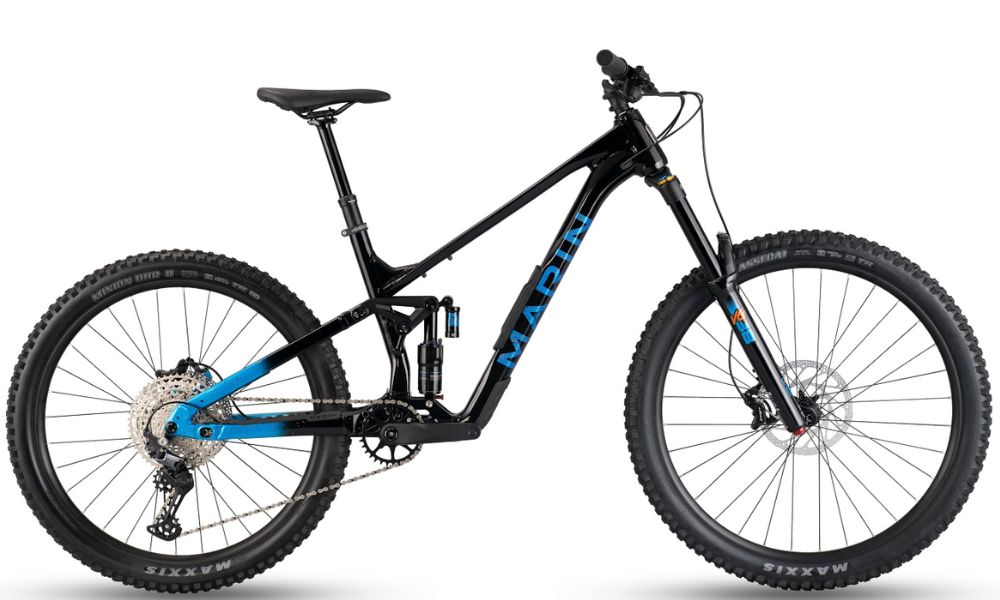

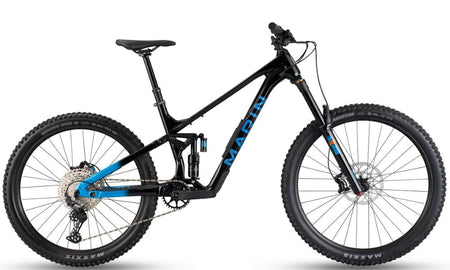

Marin 2026 Alpine Trail 1

Marin 2026 Alpine Trail 1

Specifications

Marin 2026 Alpine Trail 1

Frame

Size: S, M, L, XL
Colour: Black/Blue
Frame: Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, 148x12mm Boost Thru- Axle, 73mm Threaded BB
Fork: X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle
Shock: X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune

Drivetrain

Crankset: Samox RAC61C, Forged Alloy, 32T, 55mm CL, 165mm
Pedals:
Chain: KMC X-12 Silver and Black
Bottom Bracket:
Rear Derailleur: Shimano Deore, 12-Speed, SGS
Front Derailleur:
Shifter: Shimano Deore, 12-Speed
Freewheel/Cassette: Shimano, Deore 12-Speed, 10-51T

Braking System

Brakes: TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor
Brake Levers: TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

Wheels

Tyres: [F] Maxxis Assegai MAXX GRIP, 29x2.5" EXO+ [R] Maxxis Minion DHR II, MAXXTERRA, 27.5x2.5" DoubleDown, Tubeless compatible
Wheels/Rims: [F] [R] New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hubs: [F] Shimano HF-MT500B, 110x15mm, Centerlock [R] Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body

Other

Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5ş Up, 9ş Back
Stem: Marin 3D Forged Alloy, 35mm
Seat Post: TranzX YS160QL Adjustable Travel Dropper Post, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle: Marin Speed Concept
