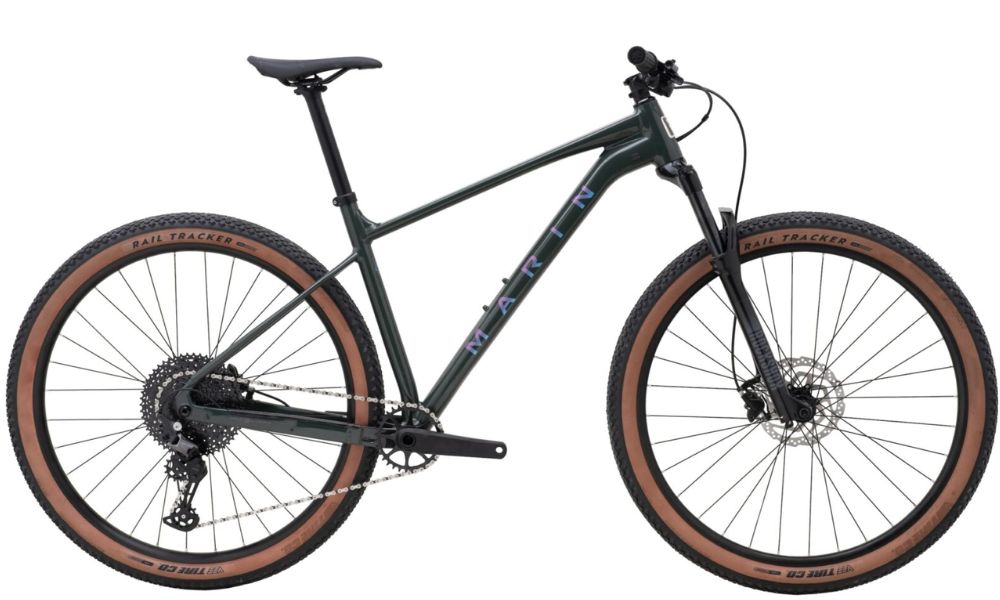

Marin 2025 Team Marin 1
CROSS COUNTRY RACING
FUN TRAINING & TRAIL RIDING
XC LIGHT WITH TRAIL RIDING CAPABILITY
We made the Team Marin to be lightning-fast, super composed in the rough-and-tumble of spicy singletrack and perfectly in control up, along and down. It packs all the roll-up-your-sleeves tough of a trail bike and the zip you’d expect from an XC racer to perfectly blend speed with fun. Because who said XC had to be so serious?!
Champagne dreams on a cola budget. The Team Marin 1 brings XC-racer performance to a privateer price-point, all whilst staying super fun and super capable in the singletrack.
We started with a high-end Series 4 aluminum frame and fast-rolling 29” wheels and then added a capable RockShox Judy Silver fork, 12-speed Shimano drivetrain, Shimano hydraulic brakes and Vee Tire rubber to create a super fun, super affordable XC trail shredder.
Specifications
Marin 2025 Team Marin 1
Frame
Colour: Grey
Frame: All New Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Fork: RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Shock:
Drivetrain
Crankset: Shimano Deore, SLM6100, 12-Speed Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring
Chain: KMC X12
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: Shimano Deore, RDM6100, 12-Speed
Front Derailleur:
Derailleur Shifter: Shimano Deore, RDM6100, 12-Speed
Freewheel/Cassette: SunRace, 12-Speed, 11-51T
Braking System
Brakes: [F] Shimano BR-MT200 Hydraulic Disc, 180mm Rotor [R] Shimano BR-MT200 Hydraulic Disc, 160mm Rotor
Brake Levers: Shimano BL-MT201
Wheels
Tyres: [F] and [R] Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless ready
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Spec, Tubeless Compatible
Hubs: [F] Forged Aluminum, 110x15mm, Disc, 32H [R] Forged Aluminum, 148x12mm, Disc Specific, 32H
Other
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Saddle: Marin Speed Concept
Seat Post: Marin Alloy, 30.9mm
Geometry
Marin 2025 Team Marin 1
| S | M | L | XL | |
| STACK | 613.9 | 618.5 | 623.05 | 632.3 |
| REACH | 410 | 430 | 450 | 485 |
| HEADTUBE ANGLE | 67° | 67° | 67° | 67° |
| HEADTUBE LENGTH | 97 | 102 | 107 | 117 |
| TOPTUBE EFFECTIVE | 74° | 74° | 74° | 74° |
| SEATTUBE ANGLE | 381 | 431 | 482 | 520 |
| SEATTUBE LENGTH | 586 | 607.3 | 628.7 | 666.3 |
| BB HEIGHT | 319.75 | 319.75 | 319.75 | 319.75 |
| BB DROP (REAR/FRONT) | 58 | 58 | 58 | 58 |
| CHAINSTAY | 425 | 425 | 425 | 425 |
| WHEELBASE | 1122.4 | 1144.3 | 1166.3 | 1205.19 |
| STANDOVER HEIGHT | 678.7 | 707 | 753.5 | 786.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
