Marin 2025 Rift Zone 1
Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone features 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails. Available with either 27.5" or 29" wheels, depending on frame size, ensuring the perfect balance of playfulness and efficiency.
The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, an X-Fusion Manic dropper post, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
Specifications
Marin 2025 Rift Zone 1
Frame

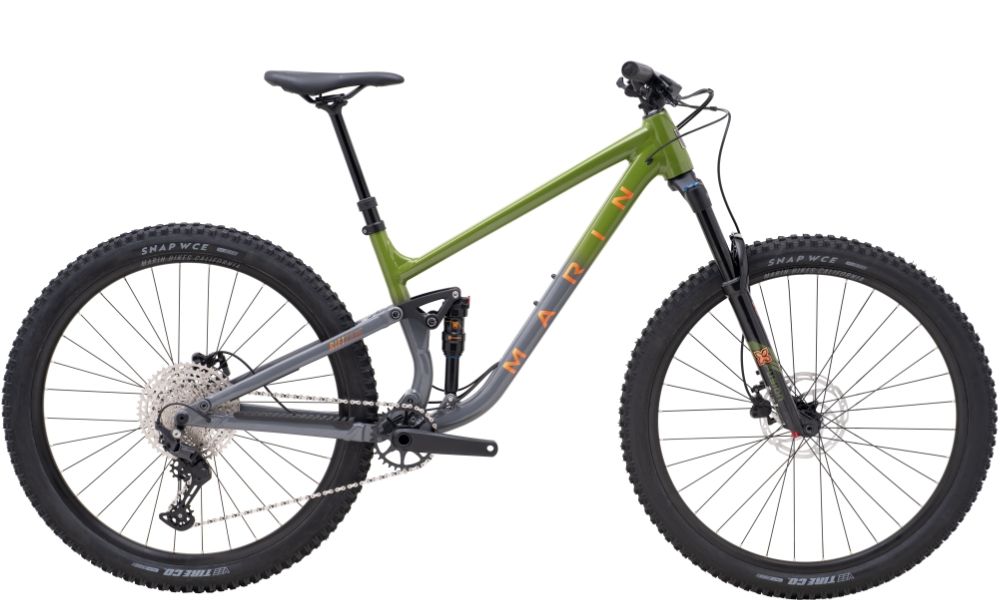

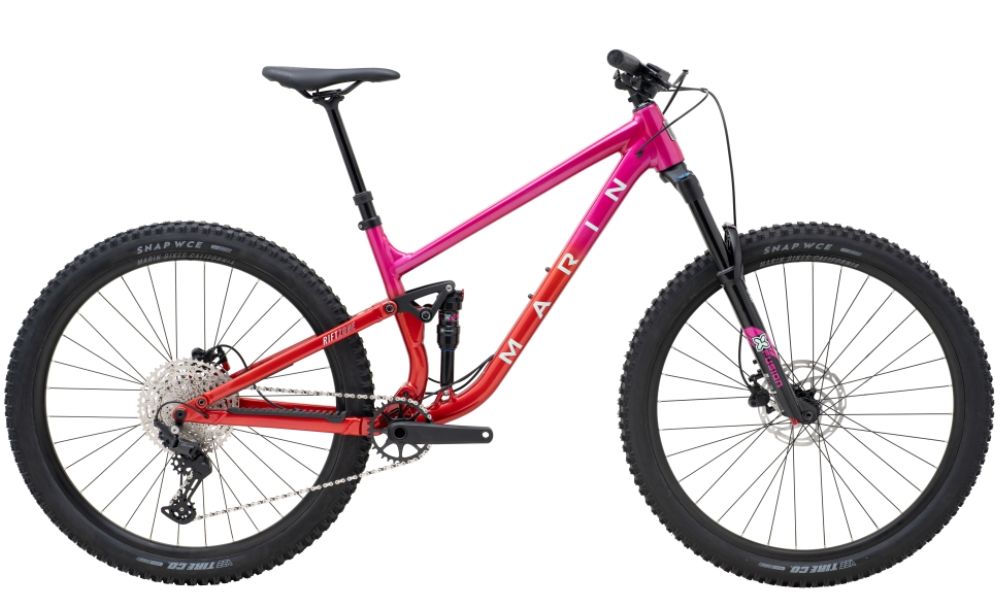

Colour: Pink or Green
Frame: Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Fork: X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Shock: X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
Drivetrain
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Chain: KMC X-11 Silver and Black
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: Shimano Deore, 11-Speed, SGS
Front Derailleur:
Derailleur Shifter: Shimano Deore, 11-Speed, SL-5100R
Freewheel/Cassette: Sunrace, 11-Speed, 11-51T, ED Black
Braking System
Brakes: [F] and [R] Tektro HD-M280 Hydraulic, 180mm Rotor
Brake Levers: Tektro HD-M280
Wheels
Tyres: [F] and [R] Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs: [F] Shimano HF-MT400B, 110x15mm, Centerlock [R] Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
Other
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Saddle: Marin Speed Concept
Seat Post: X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
Geometry
Marin 2025 Rift Zone 1
| XS (27.5) | S (27.5) | M (27.5) | M (29) | L (29) | XL (29) | |
| STACK | 569.1 | 600.7 | 605.2 | 637.3 | 637.3 | 641.8 |
| REACH | 415 | 430 | 450 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| HEADTUBE LENGTH | 115 | 120 | 125 | 115 | 125 | 130 |
| TOPTUBE EFFECTIVE | 77° | 77° | 77° | 77° | 77° | 77° |
| SEATTUBE ANGLE | 330 | 390 | 400 | 400 | 425 | 430 |
| SEATTUBE LENGTH | 552.6 | 568.7 | 589.7 | 605 | 632.1 | 663.2 |
| BB HEIGHT | 339 | 339 | 339 | 343 | 343 | 343 |
| BB DROP (REAR/FRONT) | 35 | 35 | 35 | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 | 430 | 430 | 430 |
| WHEELBASE | 1147.8 | 1164.8 | 1186.9 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT | 661.7 | 677.8 | 687.8 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 | 44 | 44 |
