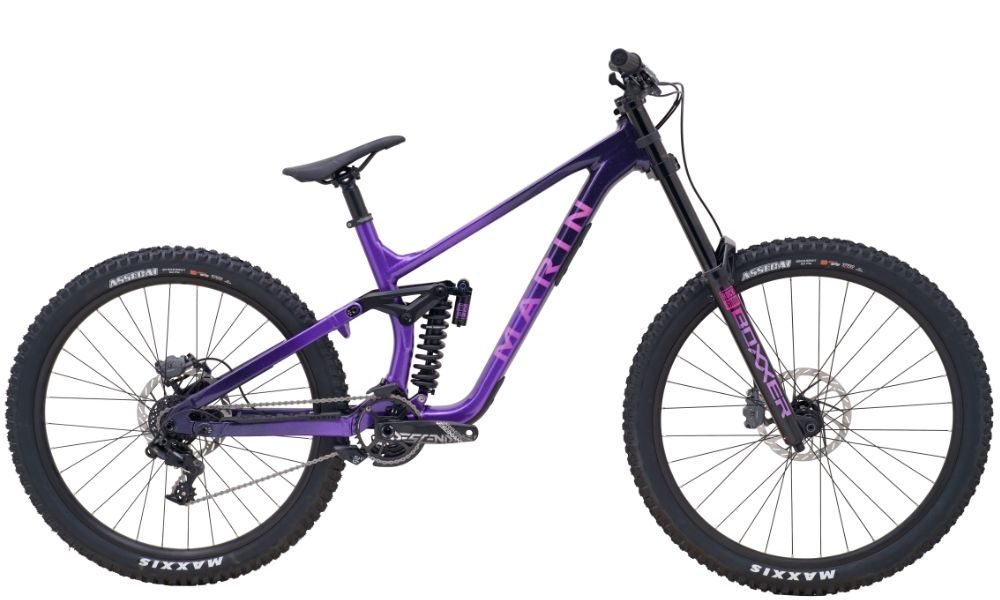

Marin 2025 Quake

Marin 2025 Quake

Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples. During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth.

An all-new Series 4 MultiTrac 2 frame features 180mm rear wheel travel and flip chips that allow the rider to select the bottom bracket height and chainstay length, along with the ability to run a 29" rear wheel. We’ve chosen a no-nonsense build kit, starting with RockShox’s storied Boxxer fork paired with a Vivid Coil Ultimate DH shock. The Boxxer is renowned for its balance of performance and durability, and it is quickly and relatively affordably upgradable to a Charger 3 damper for riders who demand the utmost adjustability. Out back, the shock has hydraulic bottom out and adjustable low and high-speed compression damping to dial in the perfect ride. SRAM’s gravity-specific GX DH 7-speed drivetrain has the tight range needed in gravity applications, while powerful Maven Bronze four-piston brakes and 200mm HS2 rotors rein speed. Maxxis DH-rated rubber and SRAM’s venerable Descendant crankset, handlebar, and direct-mount stem round out the stout parts mix, designed for long life in some of the harshest riding conditions.

Specifications

Marin 2025 Quake

Frame

Colour: Purple/Violet Fade
Frame: All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm, Rear Thru-Axle, & frame protection, UDH
Fork: RockShox Boxxer, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset
Shock: RockShox Vivid Coil Ultimate DH, 22x5x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune

Drivetrain

Crankset: SRAM Descendant Alloy 34T, 165mm
Chain: SRAM PC-1110
Bottom Bracket: SRAM DUB BSA
Rear Derailleur: SRAM GX DH
Front Derailleur:
Derailleur Shifter: SRAM GX DH, 7-Speed
Freewheel/Cassette: SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

Braking System

Brakes: [F] and [R] SRAM Maven Bronze, 200mm HS2 Rotor
Brake Levers: SRAM Maven Bronze, SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree

Wheels

Tyres: [F] and [R] Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing
Wheels/Rims: [F] and [R] 32H, Tubeless Compatible
Hubs: [F] Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body [R] Marin Forged, 110x20mm, 6-Bolt Disc, 32H

Other

Handlebar: SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep
Stem: SRAM Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length
Saddle: Marin Short Nose
Seat Post: Marin Alloy, 34.9mm

Geometry

Marin 2025 Quake
