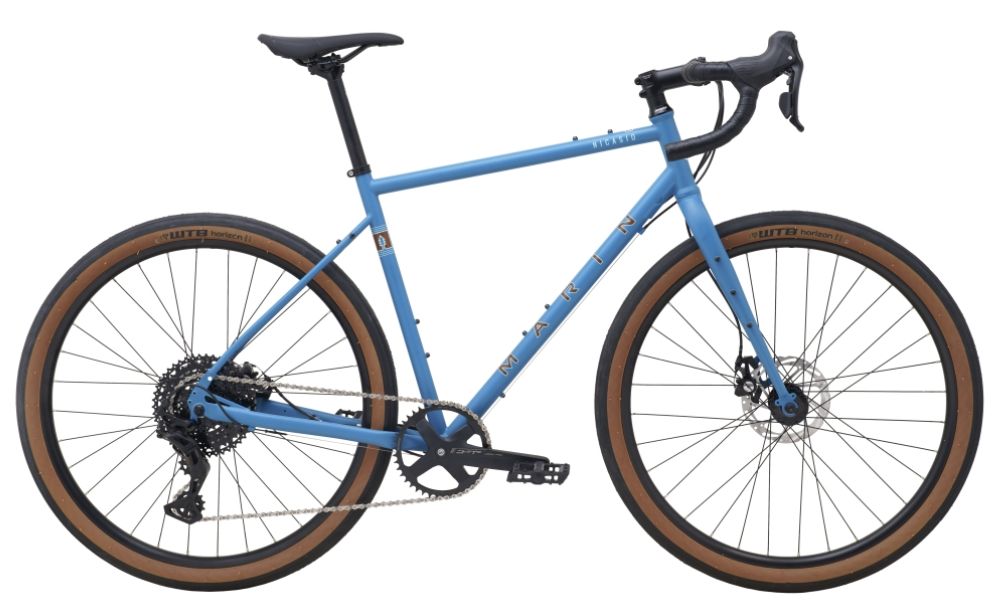

Marin 2025 Nicasio +

ADVENTURE ROAD AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT

The Marin Nicasio+ is our Nic’ with a modern twist, switching in big-volume 47mm rubber, 650b wheels and a sleek and straightforward 1X drivetrain. We also specced a microSHIFT Sword Black 1x9 drivetrain, powerful Tektro mechanical discs and plenty of Marin components. Those WTB Horizon 650Bx47mm tires not only provide a cloud-like ride, but also look super dreamy with tan sidewalls.

Specifications

Marin 2025 Nicasio +

Frame

Size: 50, 52, 54, 56, 58
Colour: Matte Tea/Brown
Frame: Steezy Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork: CrMo, Fender and Rack Eyelets, IS Disc Mount
Shock:

Drivetrain

Crankset: FSA Vero Pro, Narrow Wide, 42T
Pedals:
Chain: KMC X9
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur: microSHIFT SWORD Black, 1x9 w/ Clutch Mech
Front Derailleur:
Derailleur Shifter: microSHIFT SWORD Black, 1x9 Specific
Freewheel/Cassette: microSHIFT 9-Speed, 11-46T

Braking System

Brakes: [F] and [R] Tektro MDC400, Road Mechanical, 160mm Rotor
Brake Levers: microSHIFT SWORD Black

Wheels

Tyres: [F] and [R] WTB Horizon, 650Bx47mm
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 25mm Inner, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H

Other

Handlebar: Marin Butted Alloy, Compact 16Âş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept

Geomerty

Marin 2025 Nicasio +

Nicasio+ geometry diagram
50 52 54 56 58 60
Stack 546 564 578 592 606 620
Reach 375 375 380 390 402 415
Headtube Angle 70.5° 71.5 71.5 71.5 71.5 71.5
Headtube Length 105 120 135 150 165 180
Seattube Angle 74.5° 74° 74° 74° 74° 73.5°
Seattube Length 460 480 500 520 540 560
Toptube Effective 526 537 546 560 575 599
BB Height 269 269 269 269 269 269
BB Drop 76 76 76 76 76 76
Chainstay 430 430 430 430 430 430
Wheelbase 1017 1014 1024 1039 1055 1073
Standover Height 713 733 752 770 788 806
Fork Offset 50 50 50 50 50 50
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2 27.2
Handlebar Width 400 400 420 420 440 440
Stem Length 75 75 90 90 90 90
Crank Length 170 170 175 175 175 175

All lengths in millimeters
