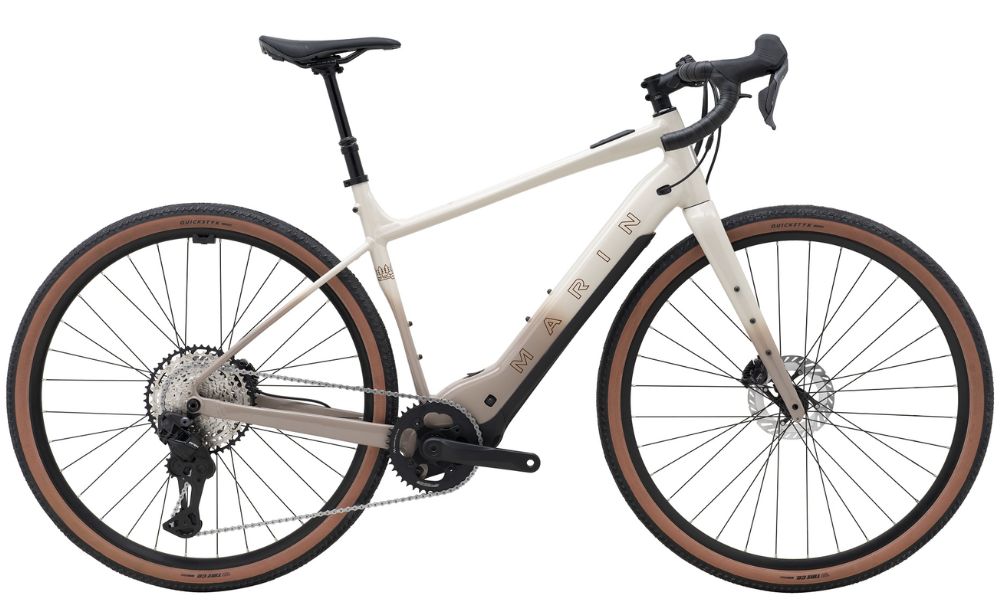

Marin 2025 Lombard E2
The Lombard E2 is our flagship Lombard offering. With a Bosch SX Drive Unit as the beating heart, powerful all-weather hydraulic disc brakes and the new Shimano GRX Wireless transmission, the Lombard E2 is ready for daily use on or off the tarmac.
High volume tyres, a Trans X dropper seat post and the fully integrated 400w/h Powertube battery, make the Lombard E a steadfast companion whether commuting daily in the city, or spinning for hours in the country.
Specifications
Marin 2026 Lombard E2
Frame
Size: S and L
Colour: Off white
Frame: Series 4 Beyond Road E, 6061 Aluminum, One-Piece, Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount, Disc, Fender Eyelets
Shock:
Drivetrain
Crankset: e*thirteen e*Spec Plus, Forged Arm, 42T Steel Chainring
Pedals:
Chain: KMC E12S
Bottom Bracket:
Rear Derailleur: Shimano GRX
Front Derailleur:
Shifter: Shimano GRX
Freewheel/Cassette: Shimano SLX CSM7100, 10-51T
Braking System
Brakes: Shimano GRX RX820, Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers: Shimano GRX
Wheels
Tyres: [F] [R] Vee Tire Co., G-Sport, 700x44, Tubeless Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Hubs: [F] Forged Aluminum Alloy, 100x12mm, Disc, 32H [R] Forged Aluminum Alloy, 142x12mm, Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 16º Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm
Saddle: Marin Beyond Road Concept Elite
E-Bike
Drive Unit: Bosch SX Sprint, 250W, 55Nm, Class 3 (28mph, 45Km/h)
Battery: Bosch CompactTube 400, 400Wh
Display:
UI/Remote: Bosch MiniRemote HMI, Bluetoth
Charger:
Geometry
Marin 2025 Lombard E2
| S | M | L | XL | |
|---|---|---|---|---|
| AStack | 564.7 | 583.5 | 607 | 639.9 |
| BReach | 385 | 405 | 415 | 425 |
| CHeadtube angle | 70° | 70° | 70° | 70° |
| DHeadtube length | 130 | 150 | 175 | 210 |
| ESeattube length | 460 | 485 | 505 | 530 |
| FSeattube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| GToptube effective | 552.2 | 577.8 | 594.8 | 614.5 |
| HBb height | 282 | 282 | 282 | 282 |
| IBb drop | 80 | 80 | 80 | 80 |
| JChainstay | 435 | 435 | 435 | 435 |
| KWheelbase | 1042.2 | 1069 | 1087.6 | 1109.6 |
| LStandover height | 686.7 | 702 | 714.5 | 741.7 |
| MFork offset | 50 | 50 | 50 | 50 |
| NSeatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| OHandlebar width | 440 | 460 | 460 | 480 |
| PStem length | 70 | 70 | 70 | 70 |
| QCrank length | 170 | 170 | 175 | 175 |
